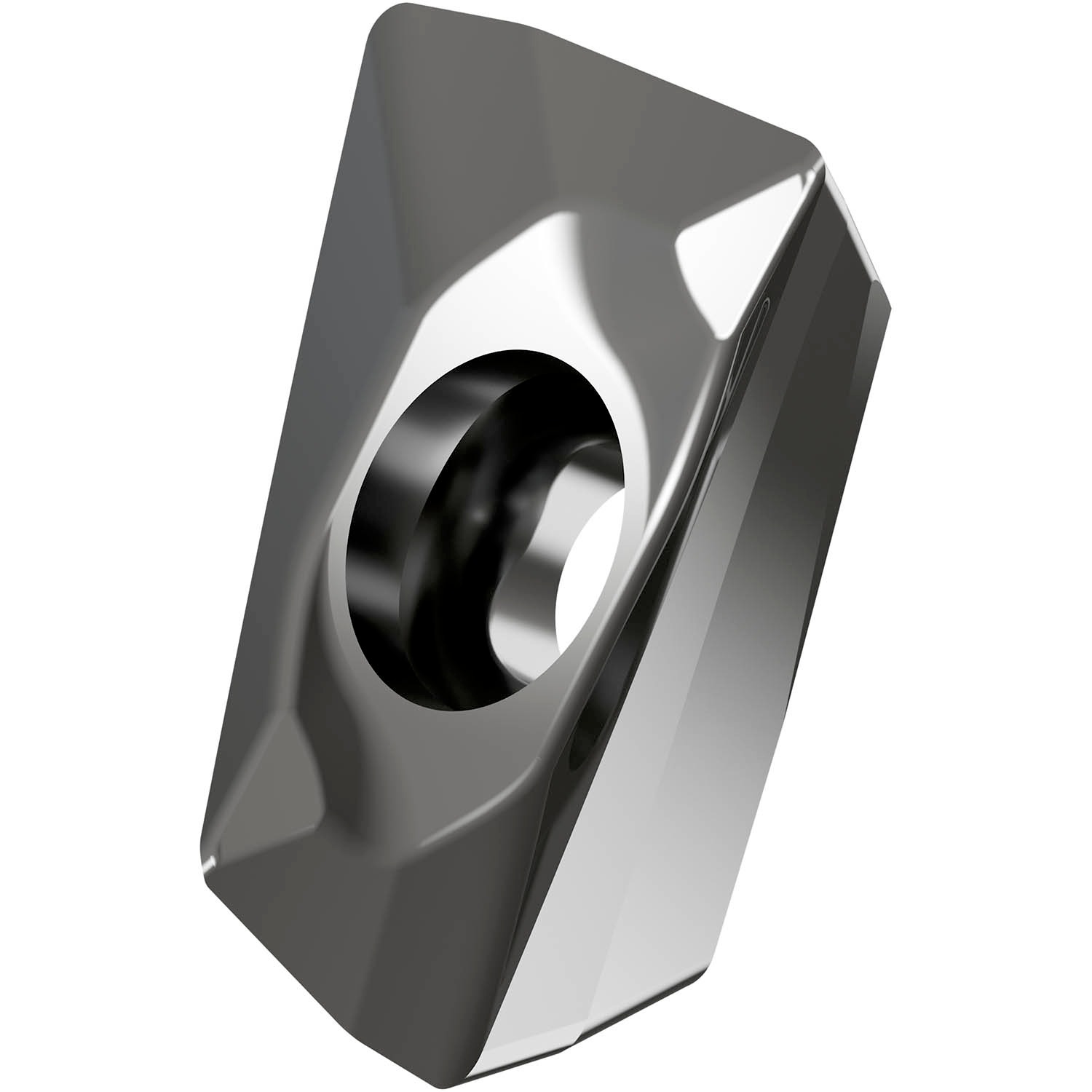

PRAMET ADEX 160604FR-FA:HF7 Milling inserts – geometry FA

Product Code: ADEX 160604FR-FA:HF7

$36.37$33.06 Ex. GST

Product Code: ADEX 160604FR-FA:HF7 SKU ADEX 160604FR-FA:HF7 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert ADEX 1606, 85° parallelogram for a maximum depth of cut of 13.0mm, with 0.4mm corner radius, an indexing accuracy according to ISO-tolerance class-E and FA geometry with sharp cutting edges, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10 -N25 for machining of non-ferrous metal with shoulder mills SAD16E or shoulder mills with extended flute J(T)-SAD16E

Additional information

Weight 0.0353 kg
barcode
Additional Information

Description: Value
EAN Number: 3603603013124 Product Number (SAP): 80025569 Ordering Code ANSI: ADEX 160604FR-FA:HF7 Gross Weight – Grams: 8.72 Insert Width – Millimeter (W1): 9.95 mm Fixing Hole Diameter – Millimeter (D1): 4.5 mm Cutting Edge Length – Millimeter (L): 16 mm Insert Thickness – Millimeter (S): 6.17 mm Grade: HF7 Corner Radius – Millimeter (RE): 0.4 mm Insert Clearance Code and Angle: D 15° Insert Size: 16 Insert Thickness: 06 Insert Type: X Chipbreaker Manufacturer's Designation (CBMD): FA Insert Shape Code (SC): A – Parallelogram 85° Included Angle ISO: ADEX160604FR-FA:HF7

Brand

PRAMET
