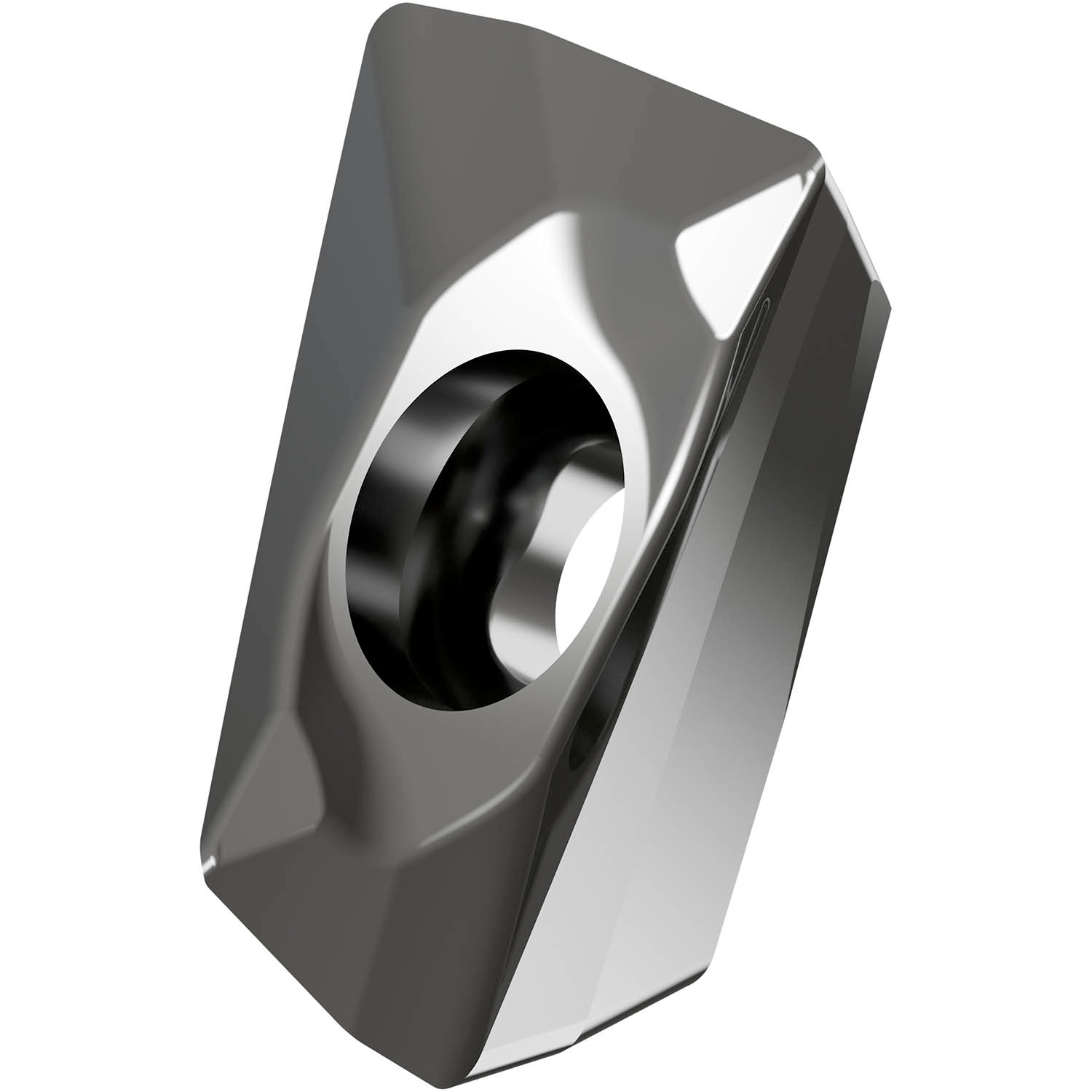

PRAMET ADEX 160608FR-FA:M0315 Milling inserts – geometry FA

Product Code: ADEX 160608FR-FA:M0315

$37.62$34.20 Ex. GST

Product Code: ADEX 160608FR-FA:M0315 SKU ADEX 160608FR-FA:M0315 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert ADEX 1606, 85° parallelogram for a maximum depth of cut of 13.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-E and FA geometry with sharp cutting edges, M0315 PVD coated fine grained WC-Co carbide within ISO-grade range N05 -N25 for machining of non-ferrous metal with shoulder mills SAD16E or shoulder mills with extended flute J(T)-SAD16E

Additional information

Weight 0.0365 kg
barcode
Additional Information

Description: Value
EAN number: 3603603013162
Product number (SAP): 80025573
Ordering code ANSI: ADEX 160608FR-FA:M0315
Gross weight – grams: 8.64
Insert width – millimeter (W1): 9.95 mm
Fixing hole diameter – millimeter (D1): 4.5 mm
Cutting edge length – millimeter (L): 16 mm
Insert thickness – millimeter (S): 6.17 mm
Grade: M0315
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: D 15°
Insert size: 16
Insert Thickness: 06
Insert Type: X
Chipbreaker manufacturer's designation (CBMD): FA
Insert shape code (SC): A – parallelogram 85° included angle
ISO: ADEX160608FR-FA:M0315

Brand

PRAMET
