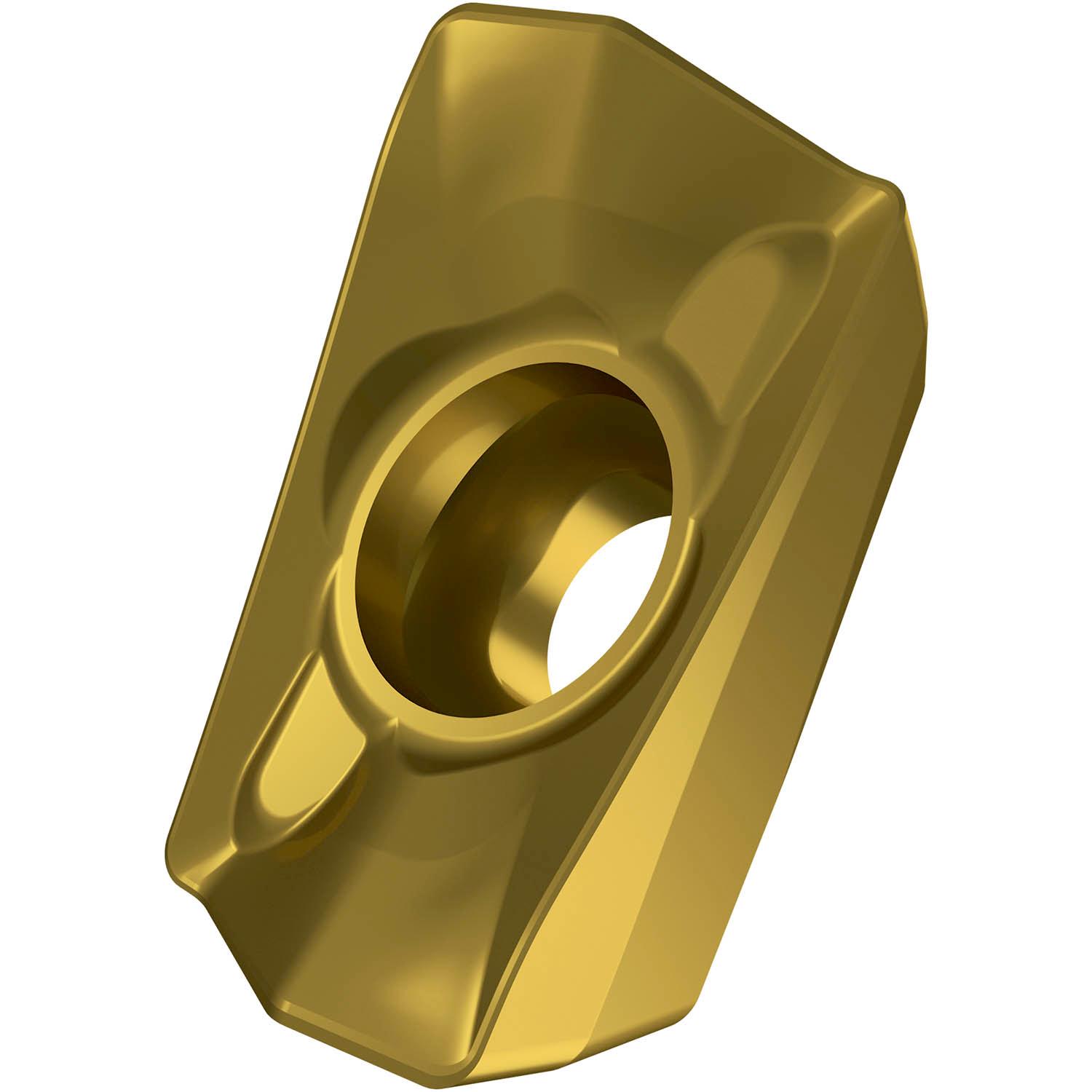

PRAMET ADMX 160616PR-R:M8330 Milling – other and drilling inserts clamped by screw

Product Code: ADMX 160616PR-R:M8330

$34.56$31.42 Ex. GST

Product Code: ADMX 160616PR-R:M8330 SKU ADMX 160616PR-R:M8330 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert ADMX 1606, 85° parallelogram for a maximum depth of cut of 13.0mm, with 1.6mm corner radius, an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and double facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20 -P40 and K20 -K40 for machining of steel and cast-iron with shoulder mills SAD16E or shoulder mills with extended flute J(T)-SAD16E

Additional information

Weight 0.0336 kg
barcode
Additional Information

Description: Value
EAN number: 3603603385337
Product number (SAP): 80030060
Ordering code ANSI: ADMX 160616PR-R:M8330
Gross weight – grams: 7.642
Insert width – millimeter (W1): 9.95 mm
Fixing hole diameter – millimeter (D1): 4.5 mm
Cutting edge length – millimeter (L): 16 mm
Insert thickness – millimeter (S): 6.25 mm
Grade: M8330
Corner radius – millimeter (RE): 1.6 mm
Insert Clearance Code and Angle: D 15°
Insert size: 16
Insert Thickness: 06
Insert Type: X
Chipbreaker manufacturer's designation (CBMD): R
Insert shape code (SC): A – parallelogram 85° included angle
ISO: ADMX160616PR-R:M8330

Brand

PRAMET
