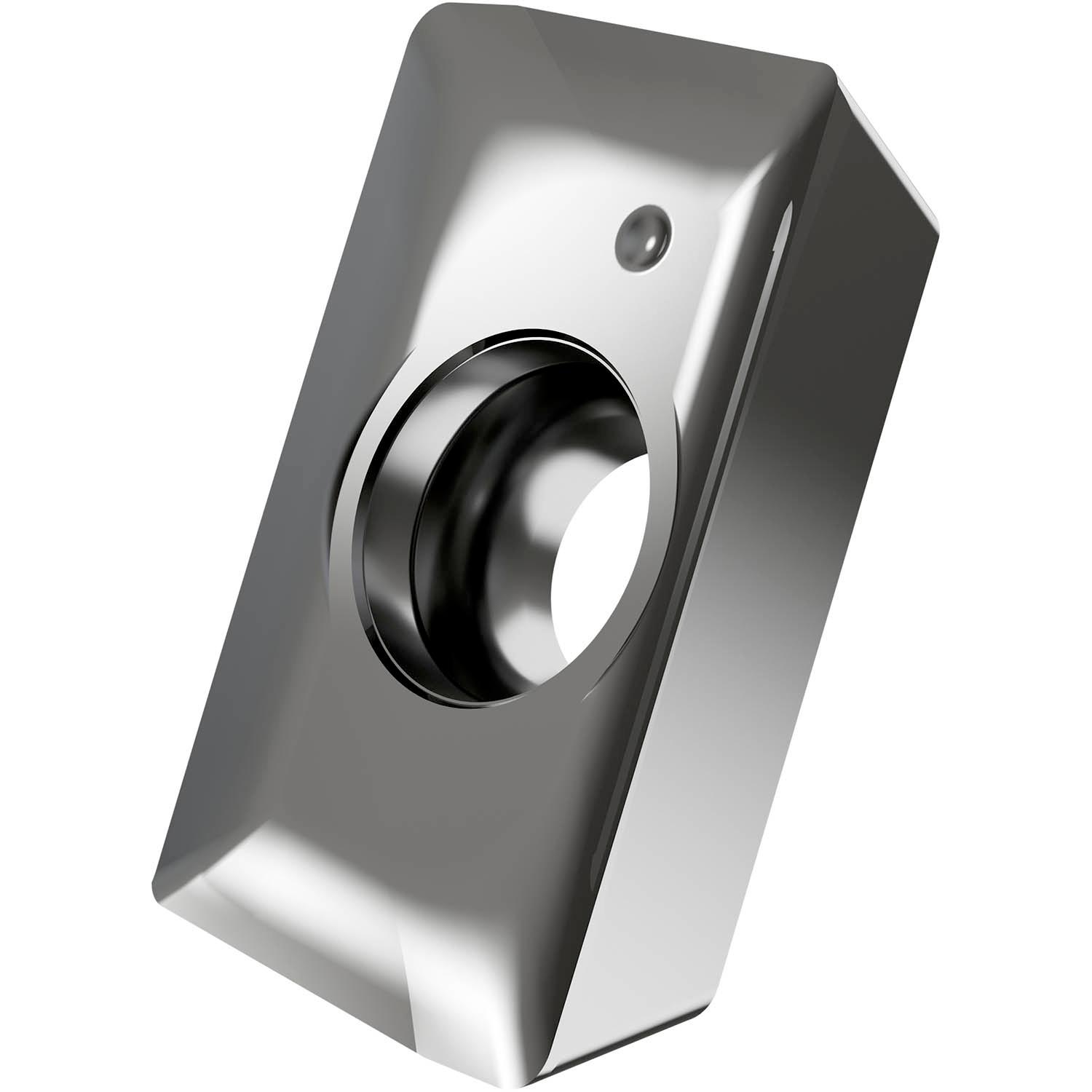

PRAMET APET 160408FR-FA:HF7 Milling inserts – geometry FA

Product Code: APET 160408FR-FA:HF7

$37.16$33.78 Ex. GST

Product Code: APET 160408FR-FA:HF7 SKU APET 160408FR-FA:HF7 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert APET 1604 with chip-breakers, 85° parallelogram for a maximum depth of cut of 15.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-E and FA geometry with sharp cutting edges, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10 -N25 for machining of non-ferrous metal with shoulder mills SAP16D

Additional information

Weight 0.0361 kg
barcode
Additional Information

Description: Value
EAN number: 3603602874535
Product number (SAP): 80005426
Ordering code ANSI: APET 160408FR-FA:HF7
Gross weight – grams: 8.21
Insert width – millimeter (W1): 9.6 mm
Fixing hole diameter – millimeter (D1): 4.5 mm
Cutting edge length – millimeter (L): 17 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: HF7
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: P 11°
Insert size: 16
Insert Thickness: 04
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): FA
Insert shape code (SC): A – parallelogram 85° included angle
ISO: APET160408FR-FA:HF7

Brand

PRAMET
