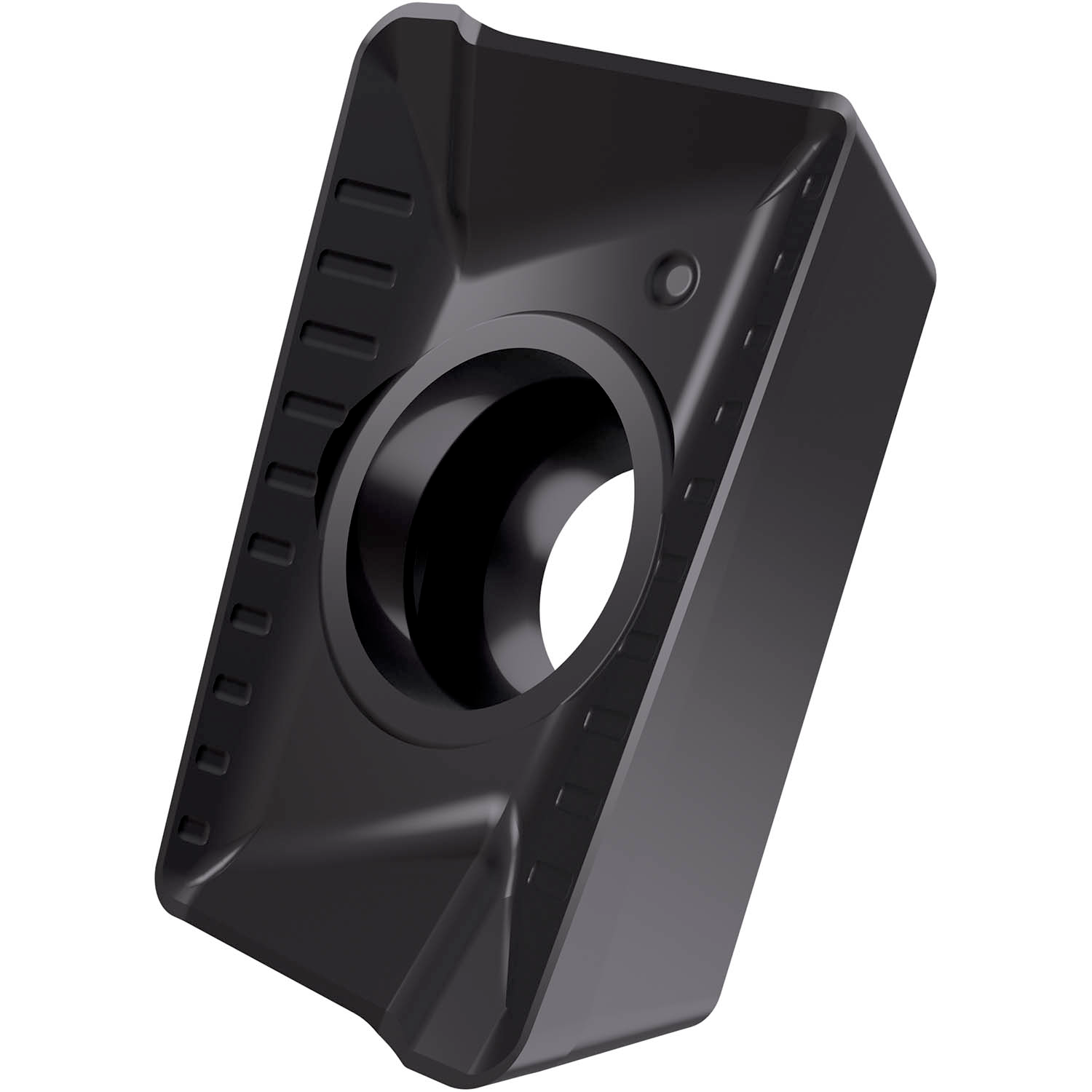

PRAMET APKT 1003PDER-M:8215 Milling – other and drilling inserts clamped by screw

Description: Value
EAN number: 3603602887603
Product number (SAP): 80014533
Ordering code ANSI: APKT 1003PDER-M:8215
Gross weight – grams: 2.046
Insert width – millimeter (W1): 6.7 mm
Fixing hole diameter – millimeter (D1): 2.88 mm
Cutting edge length – millimeter (L): 11 mm
Insert thickness – millimeter (S): 3.5 mm
Grade: 8215
Corner radius – millimeter (RE): 0.5 mm
Insert Clearance Code and Angle: P 11°
Insert size: 10
Insert Thickness: 03
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): M
Insert shape code (SC): A – parallelogram 85° included angle
ISO: APKT1003PDER-M:8215
