PRAMET APKT 1003PDER-M:M8330 Milling – other and drilling inserts clamped by screw

Product Code: APKT 1003PDER-M:M8330

$30.25$27.50 Ex. GST

Product Code: APKT 1003PDER-M:M8330 SKU APKT 1003PDER-M:M8330 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

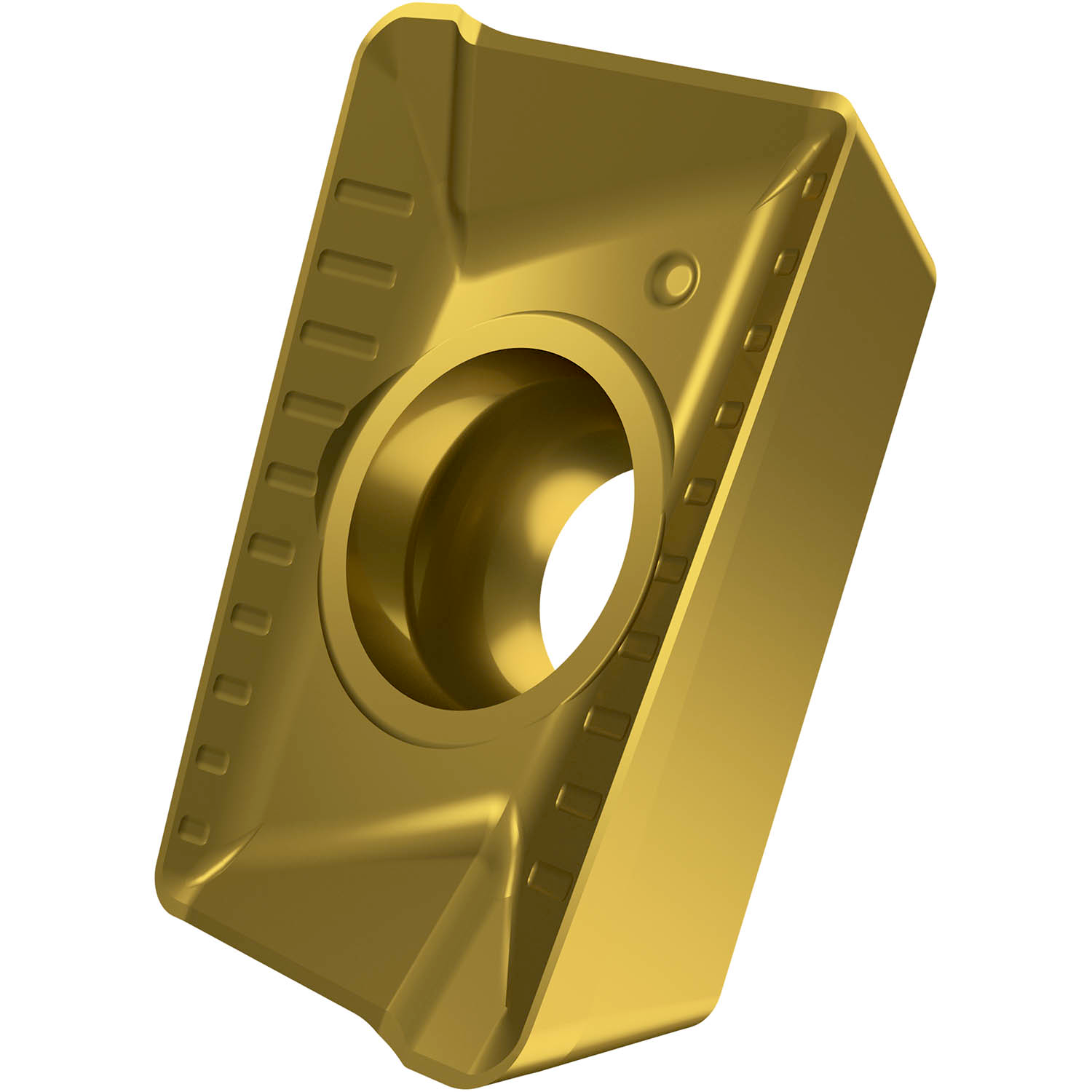

Single-sided milling insert APKT 1003 with chip-breakers, 85° parallelogram for a maximum depth of cut of 9.0mm, with 0.5mm corner radius, an indexing accuracy according to ISO-tolerance class-K and M geometry with rounded cutting edges, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20 -P40 and K20 -K40 for machining of steel and cast-iron with shoulder mills SAP10D

Additional information

Weight 0.0294 kg
barcode
Additional Information

Description: Value
EAN number: 3603603385443
Product number (SAP): 80030071
Ordering code ANSI: APKT 1003PDER-M:M8330
Gross weight – grams: 3.14
Insert width – millimeter (W1): 6.7 mm
Fixing hole diameter – millimeter (D1): 2.88 mm
Cutting edge length – millimeter (L): 11 mm
Insert thickness – millimeter (S): 3.5 mm
Grade: M8330
Corner radius – millimeter (RE): 0.5 mm
Insert Clearance Code and Angle: P 11°
Insert size: 10
Insert Thickness: 03
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): M
Insert shape code (SC): A – parallelogram 85° included angle
ISO: APKT1003PDER-M:M8330

Brand

PRAMET
