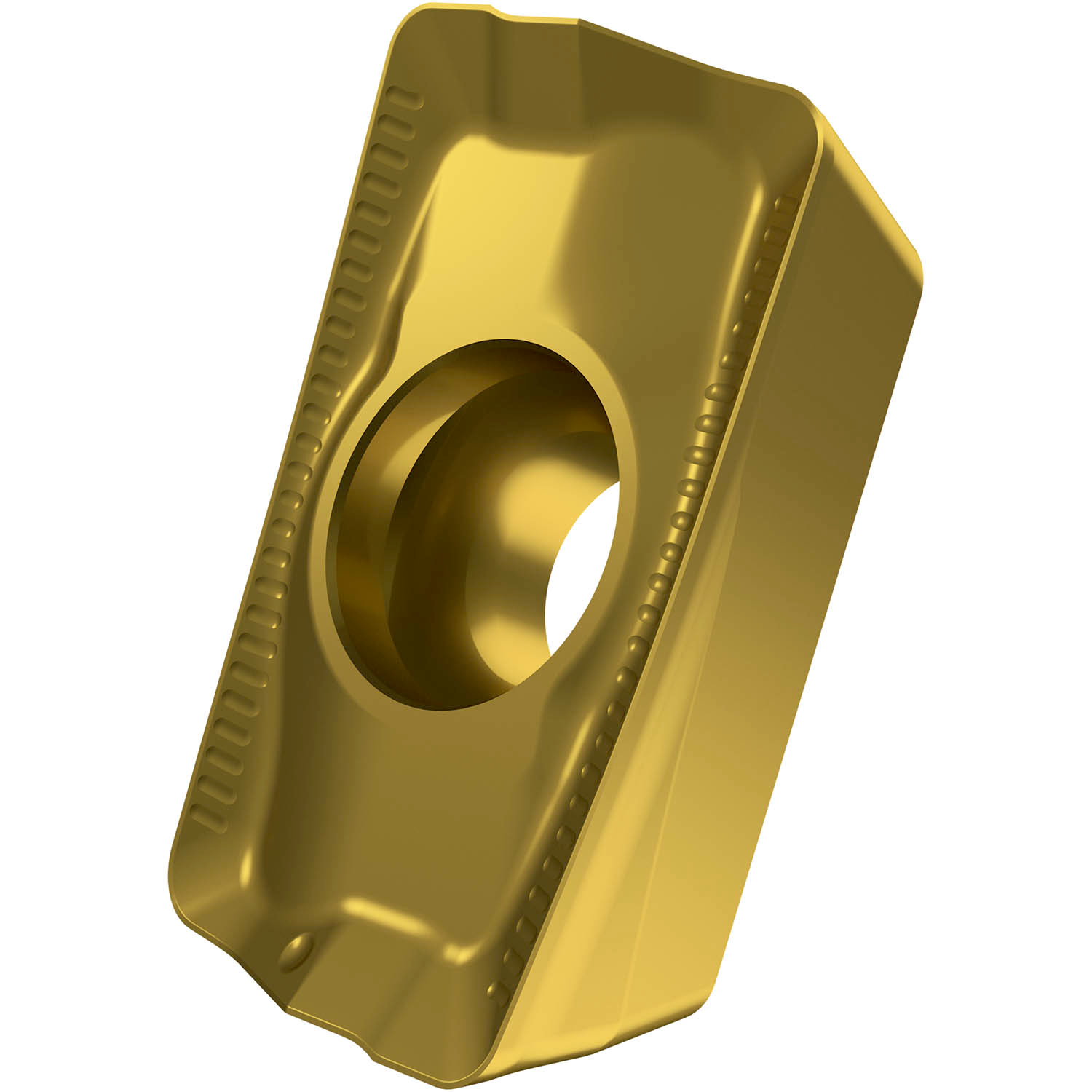

PRAMET APKT 1604PDR-GM:M8340 Milling – other and drilling inserts clamped by screw

Description: Value
EAN number: 3603602993502
Product number (SAP): 80024927
Ordering code ANSI: APKT 1604PDR-GM:M8340
Gross weight – grams: 8.98
Insert width – millimeter (W1): 9.44 mm
Fixing hole diameter – millimeter (D1): 4.6 mm
Cutting edge length – millimeter (L): 17 mm
Insert thickness – millimeter (S): 5.67 mm
Grade: M8340
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: P 11°
Insert size: 16
Insert Thickness: 04
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): GM
Insert shape code (SC): A – parallelogram 85° included angle
ISO: APKT1604PDR-GM:M8340
