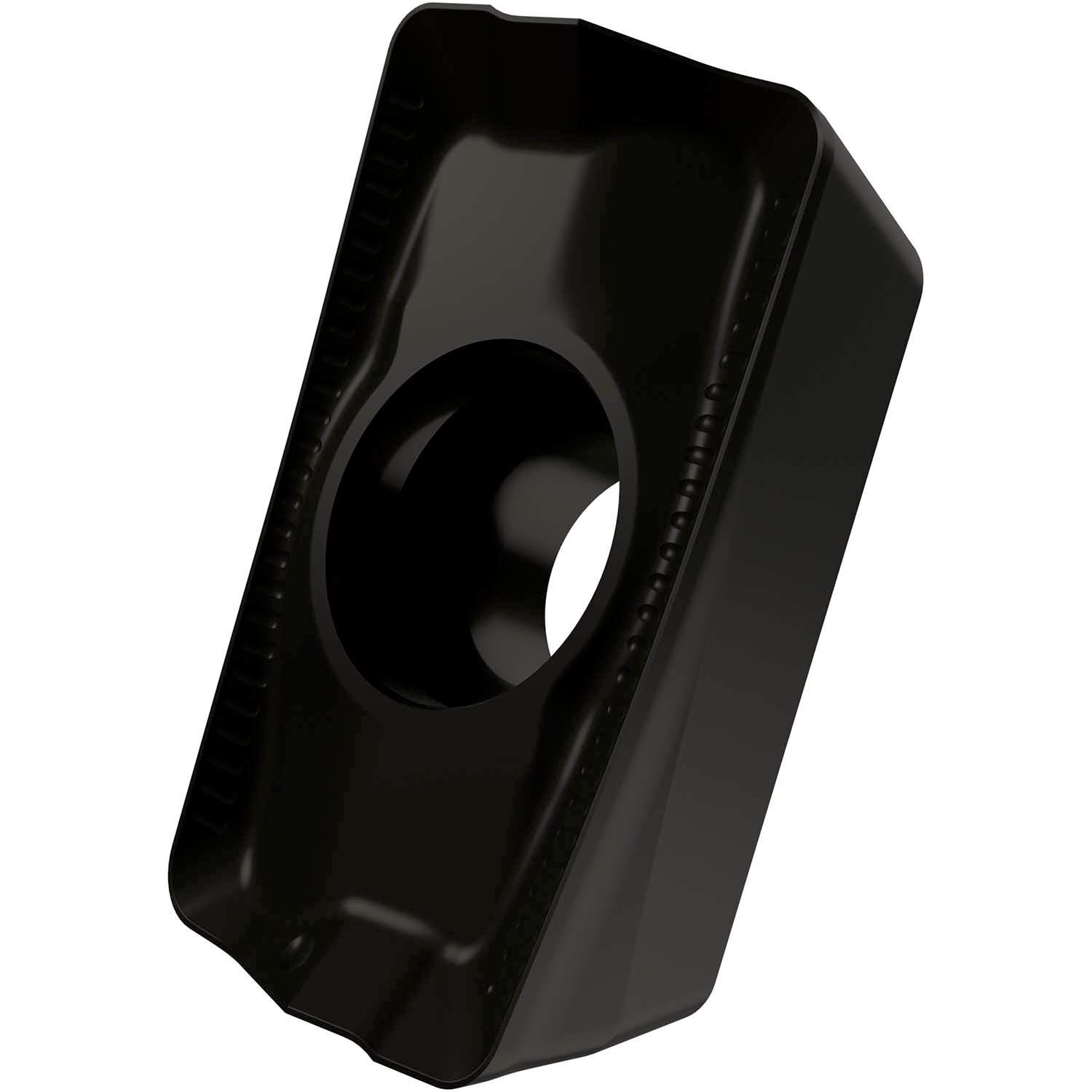

PRAMET APKT 1604PDR-GM:M9315 Milling – other and drilling inserts clamped by screw

Product Code: APKT 1604PDR-GM:M9315

$34.56$31.42 Ex. GST

Product Code: APKT 1604PDR-GM:M9315 SKU APKT 1604PDR-GM:M9315 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert APKT 1604 with chip-breakers, 85° parallelogram for a maximum depth of cut of 13.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-K and GM geometry, M9315 MT-CVD coated WC-Co carbide within ISO-grade ranges P05 -P25 and K10 -K30 for machining of steel and cast-iron with shoulder mills SAP16D

Additional information

Weight 0.0336 kg
barcode
Additional Information

Description: Value
EAN number: 3603602899989
Product number (SAP): 80016784
Ordering code ANSI: APKT 1604PDR-GM:M9315
Gross weight – grams: 7.941
Insert width – millimeter (W1): 9.44 mm
Fixing hole diameter – millimeter (D1): 4.6 mm
Cutting edge length – millimeter (L): 17 mm
Insert thickness – millimeter (S): 5.67 mm
Grade: M9315
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: P 11°
Insert size: 16
Insert Thickness: 04
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): GM
Insert shape code (SC): A – parallelogram 85° included angle
ISO: APKT1604PDR-GM:M9315

Brand

PRAMET
