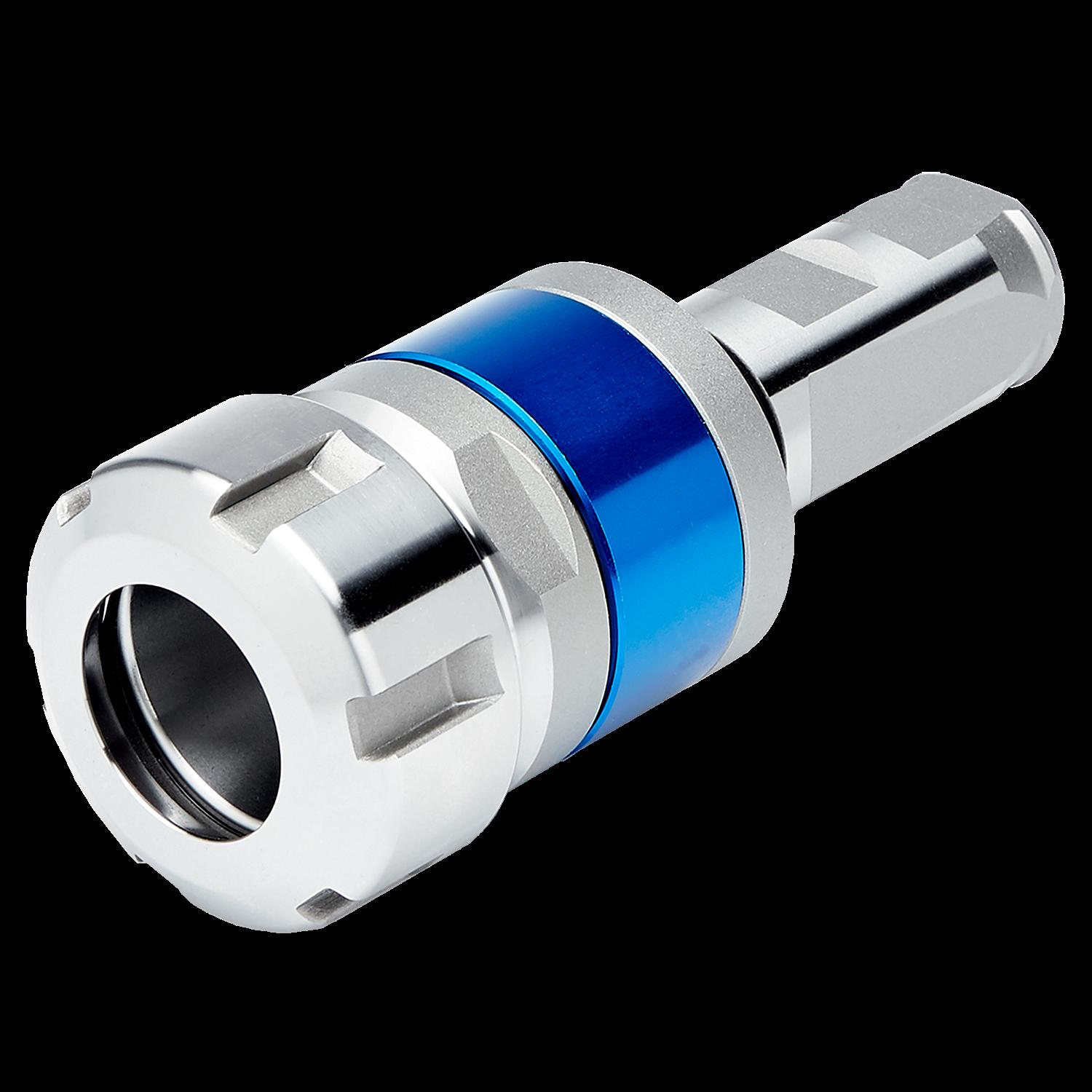

PRAMET AW.25-QT.ER25.063 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603604019651
Product number (SAP): 86041635
ISO: AW.25-QT.ER25.063
Ordering code ANSI: AW.25-QT.ER25.063
Net weight – grams: 500
Gross weight – grams: 565
Axial Floating Back – millimeters (FLB): 0.5 mm
Axial Floating Forward – millimeters (FLF): 0.5 mm
Body diameter – millimeter (BD): 42 mm
Connection bore diameter minimum – millimeter (DCBN): 2 mm
Connection bore diameter maximum – millimeter (DCBX): 16 mm
Connection diameter – millimeter (DCON MS): 25 mm
Connection text machine side (CTMS): W25
Connection text workpiece side (CTWS): ER25
Protruding length – millimeter (LPR): 63 mm
