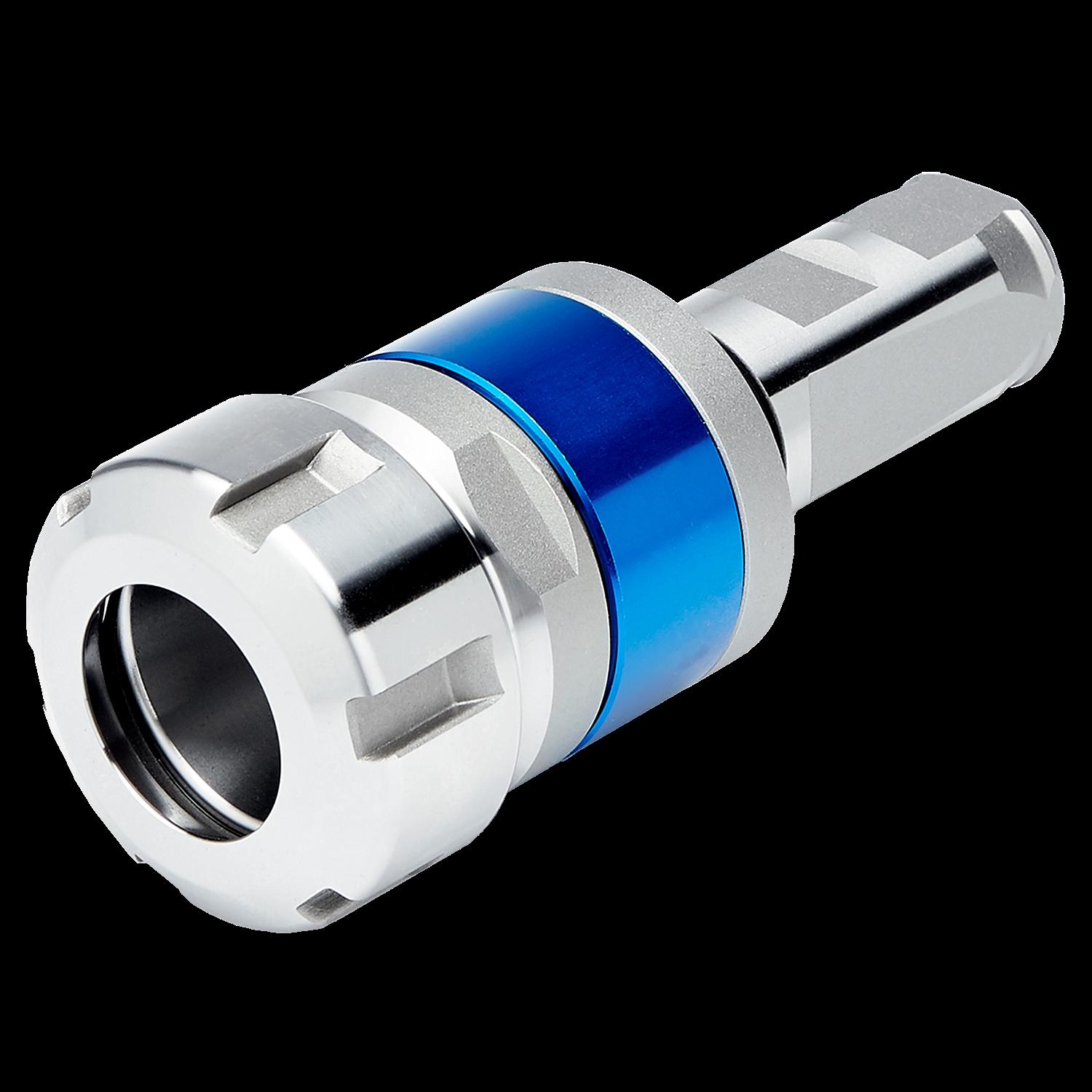

PRAMET AW.25-QT.ER32.069 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603604019668
Product number (SAP): 86041636
ISO: AW.25-QT.ER32.069
Ordering code ANSI: AW.25-QT.ER32.069
Net weight – grams: 793
Gross weight – grams: 800
Axial Floating Back – millimeters (FLB): 0.5 mm
Axial Floating Forward – millimeters (FLF): 0.5 mm
Body diameter – millimeter (BD): 50 mm
Connection bore diameter minimum – millimeter (DCBN): 2 mm
Connection bore diameter maximum – millimeter (DCBX): 20 mm
Connection diameter – millimeter (DCON MS): 25 mm
Connection text machine side (CTMS): W25
Connection text workpiece side (CTWS): ER32
Protruding length – millimeter (LPR): 69 mm
