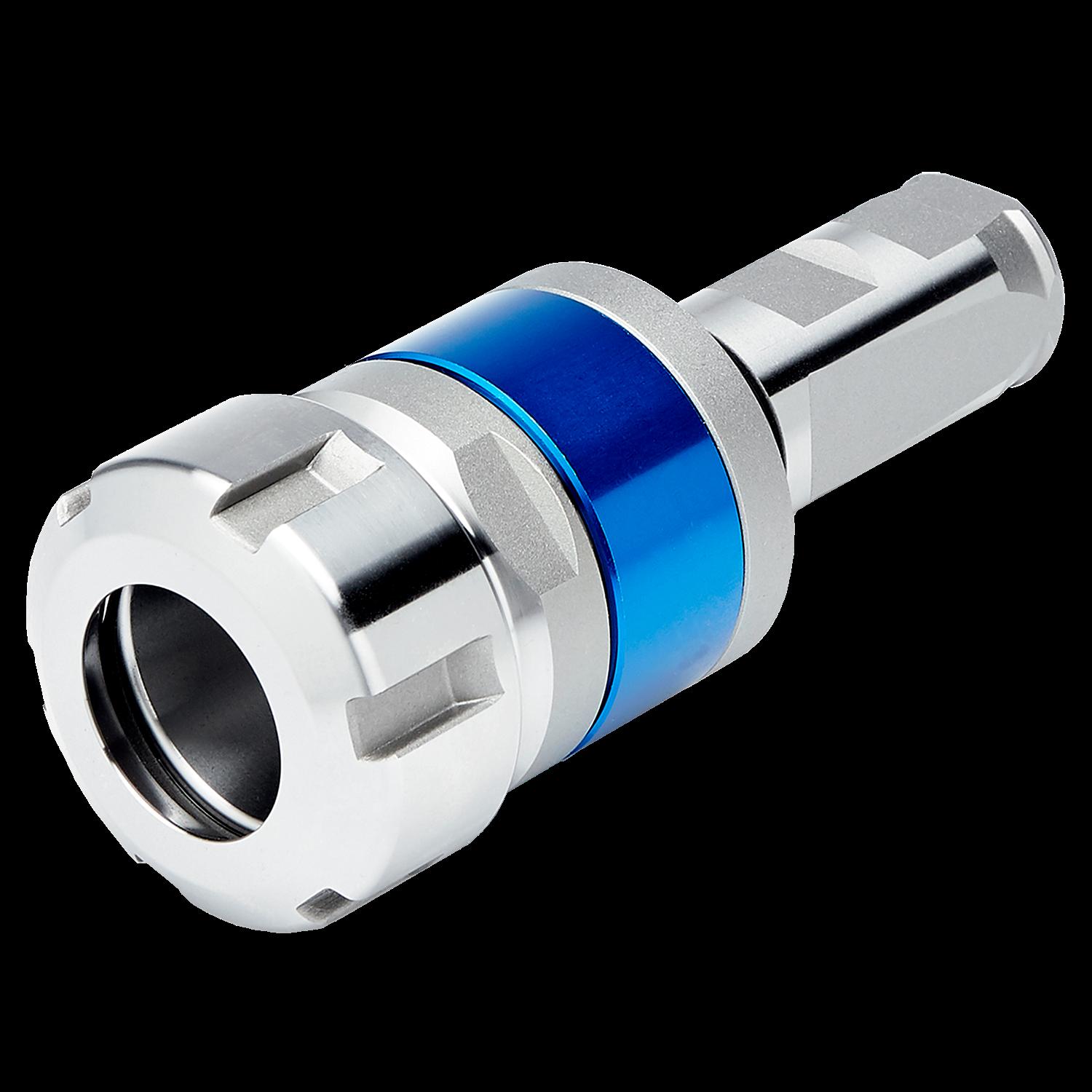

PRAMET AW.25-QT.ER40.109 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603604019675
Product number (SAP): 86041637
ISO: AW.25-QT.ER40.109
Ordering code ANSI: AW.25-QT.ER40.109
Net weight – grams: 2100
Gross weight – grams: 2112.3
Axial Floating Back – millimeters (FLB): 0.5 mm
Axial Floating Forward – millimeters (FLF): 0.5 mm
Body diameter – millimeter (BD): 63 mm
Connection bore diameter minimum – millimeter (DCBN): 3 mm
Connection bore diameter maximum – millimeter (DCBX): 26 mm
Connection diameter – millimeter (DCON MS): 25 mm
Connection text machine side (CTMS): W25
Connection text workpiece side (CTWS): ER40
Protruding length – millimeter (LPR): 109 mm
