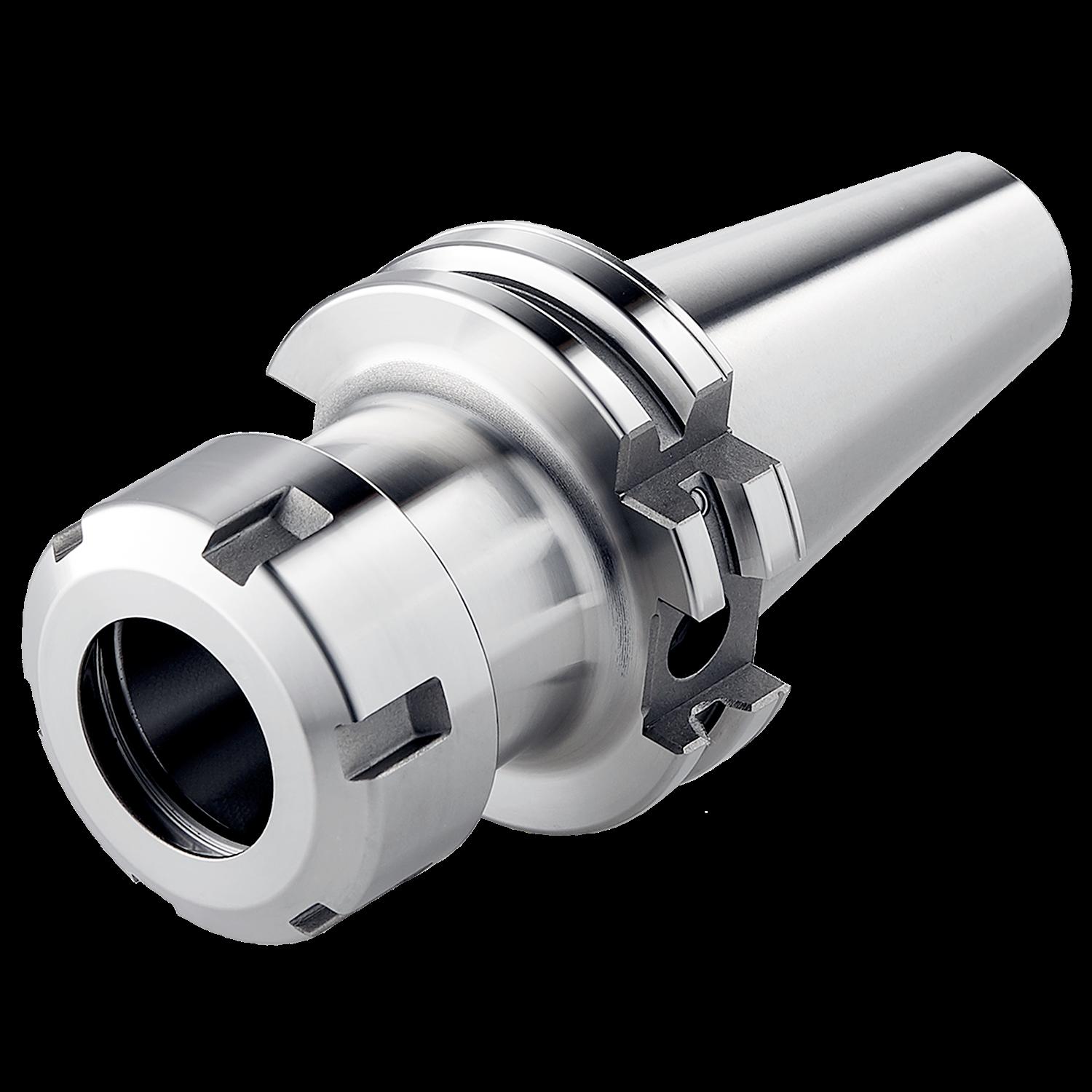

PRAMET B69871.40ADB-CC.ER32.160 Tooling system

Product Code: B69871.40ADB-CC.ER32.160

$379.56$345.05 Ex. GST

Product Code: B69871.40ADB-CC.ER32.160 SKU B69871.40ADB-CC.ER32.160 Categories CUTTING TOOLS (HSS & Carbide), Holding

PRAMET B69871.40ADB-CC.ER32.160 Tooling system

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

DIN 69871 – Collet chuck ER

Additional information

Weight	2.0000 kg
barcode	3603604022729
Additional Information	Description: Value Brand Name: Dormer Pramet EAN number: 3603604022729 Product number (SAP): 86041465 Size: 40 ISO: B69871.40ADB-CC.ER32.160 Ordering code ANSI: B69871.40ADB-CC.ER32.160 Net weight – grams: 2000 Gross weight – grams: 2000 Body diameter – millimeter (BD): 50 mm Connection bore diameter minimum – millimeter (DCBN): 2 mm Connection bore diameter maximum – millimeter (DCBX): 20 mm Connection text machine side (CTMS): SK40 Dual Contact Connection text workpiece side (CTWS): ER32 Protruding length – millimeter (LPR): 160 mm
