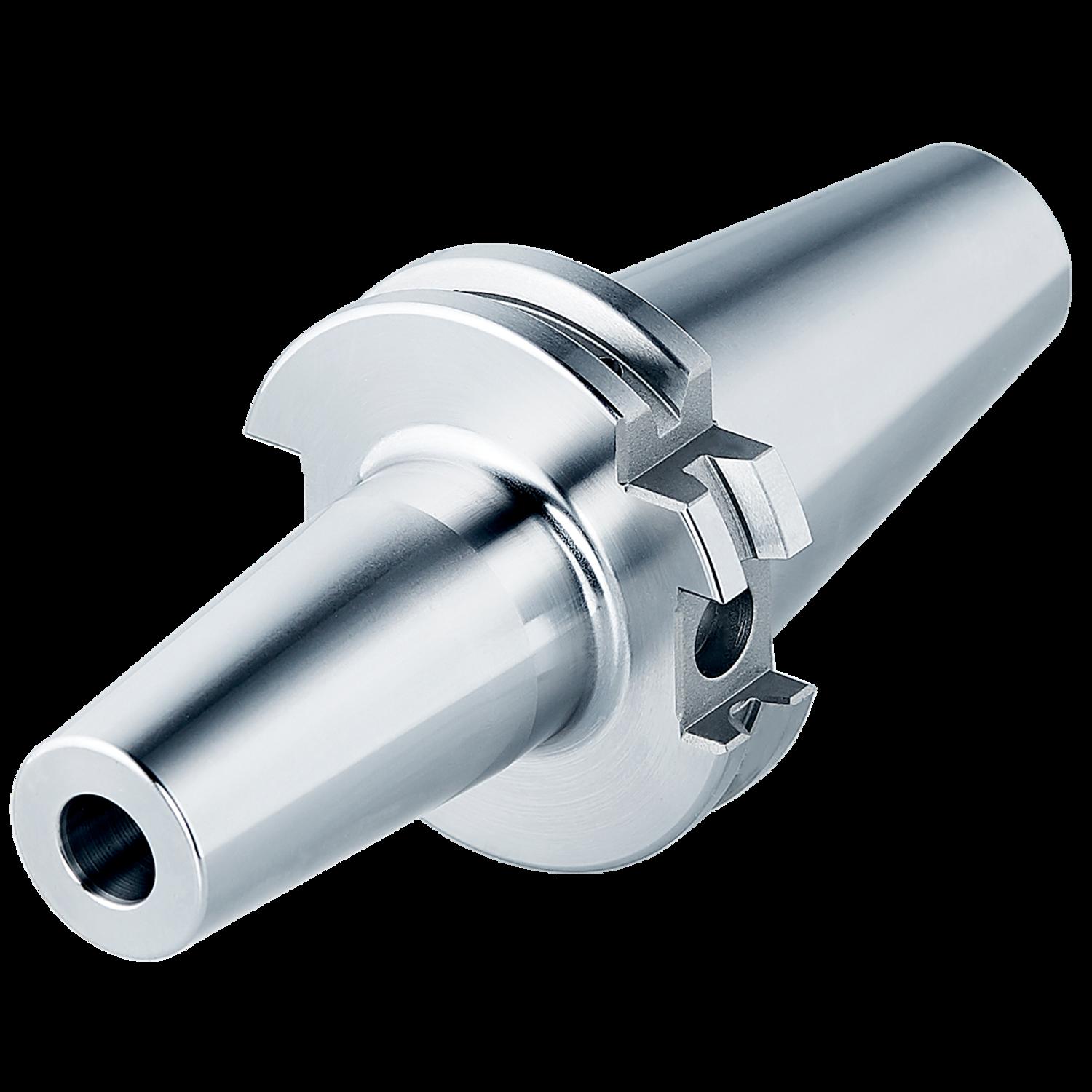

PRAMET B69871.40ADB-SC.12.080 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603604023085
Product number (SAP): 86041501
Size: 40
ISO: B69871.40ADB-SC.12.080
Ordering code ANSI: B69871.40ADB-SC.12.080
Net weight – grams: 1000
Gross weight – grams: 1000
Body diameter – millimeter (BD): 24 mm
Body diameter 2 – millimeters (BD2): 32 mm
Body half taper angle (BHTA): 4.5
Connection diameter workpiece side – millimeter (DCON WS): 12 mm
Connection text machine side (CTMS): SK40 Dual Contact
Protruding length – millimeter (LPR): 80 mm
