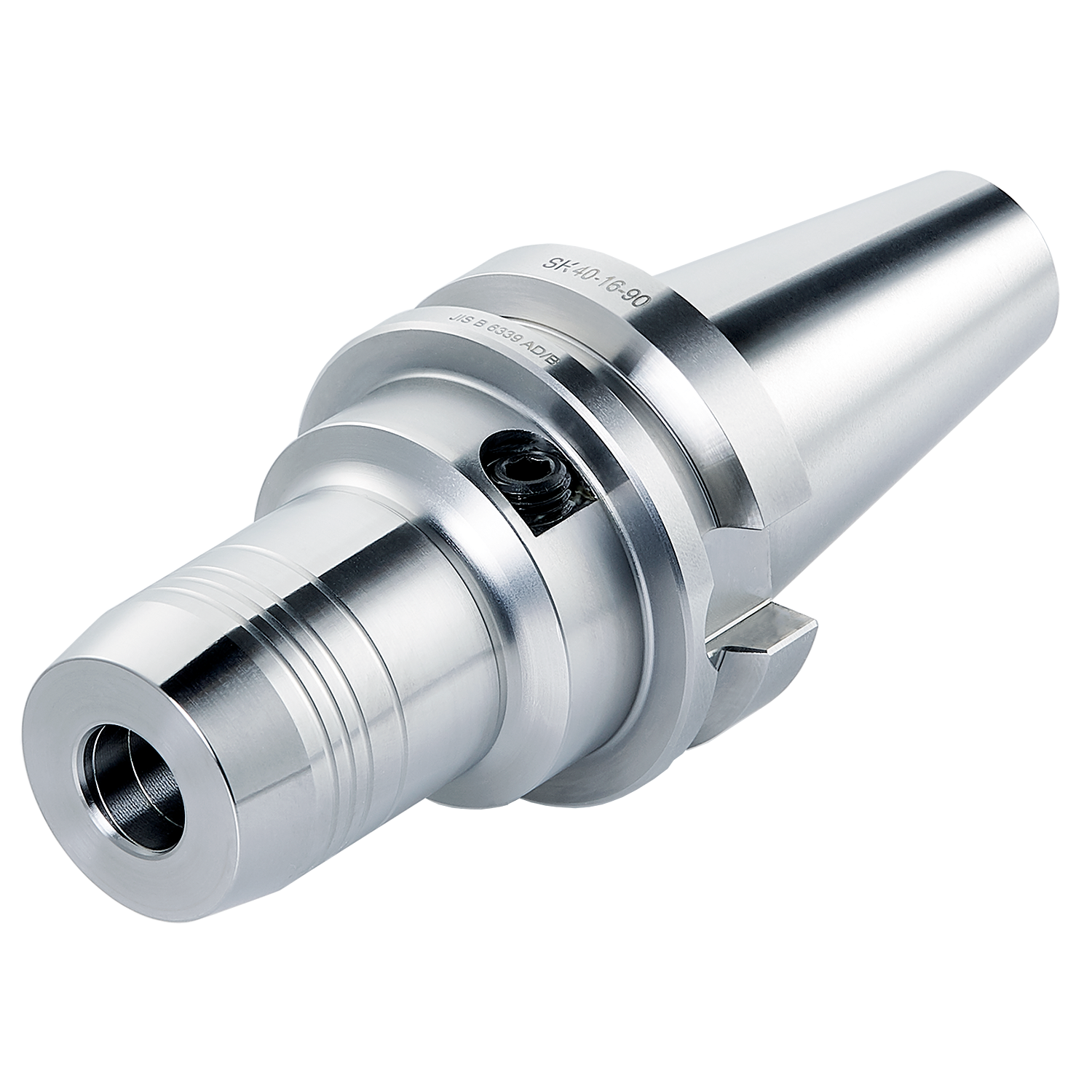

PRAMET BBT.30AD-HC.10.064 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603604034470
Product number (SAP): 86042555
Size: 30
ISO: BBT.30AD-HC.10.064
Ordering code ANSI: BBT.30AD-HC.10.064
Net weight – grams: 600
Gross weight – grams: 600
Body diameter – millimeter (BD): 30 mm
Body diameter 2 – millimeters (BD2): 45 mm
Clamping length maximum – millimeters (LSCX): 37 mm
Connection diameter workpiece side – millimeter (DCON WS): 10 mm
Connection text machine side (CTMS): BT30 Dual Contact
Functional height – millimeter (HF): 32 mm
Overall height – millimeter (OAH): 95 mm
Overall width – millimeters (OAW): 100 mm
Protruding length – millimeter (LPR): 64 mm
