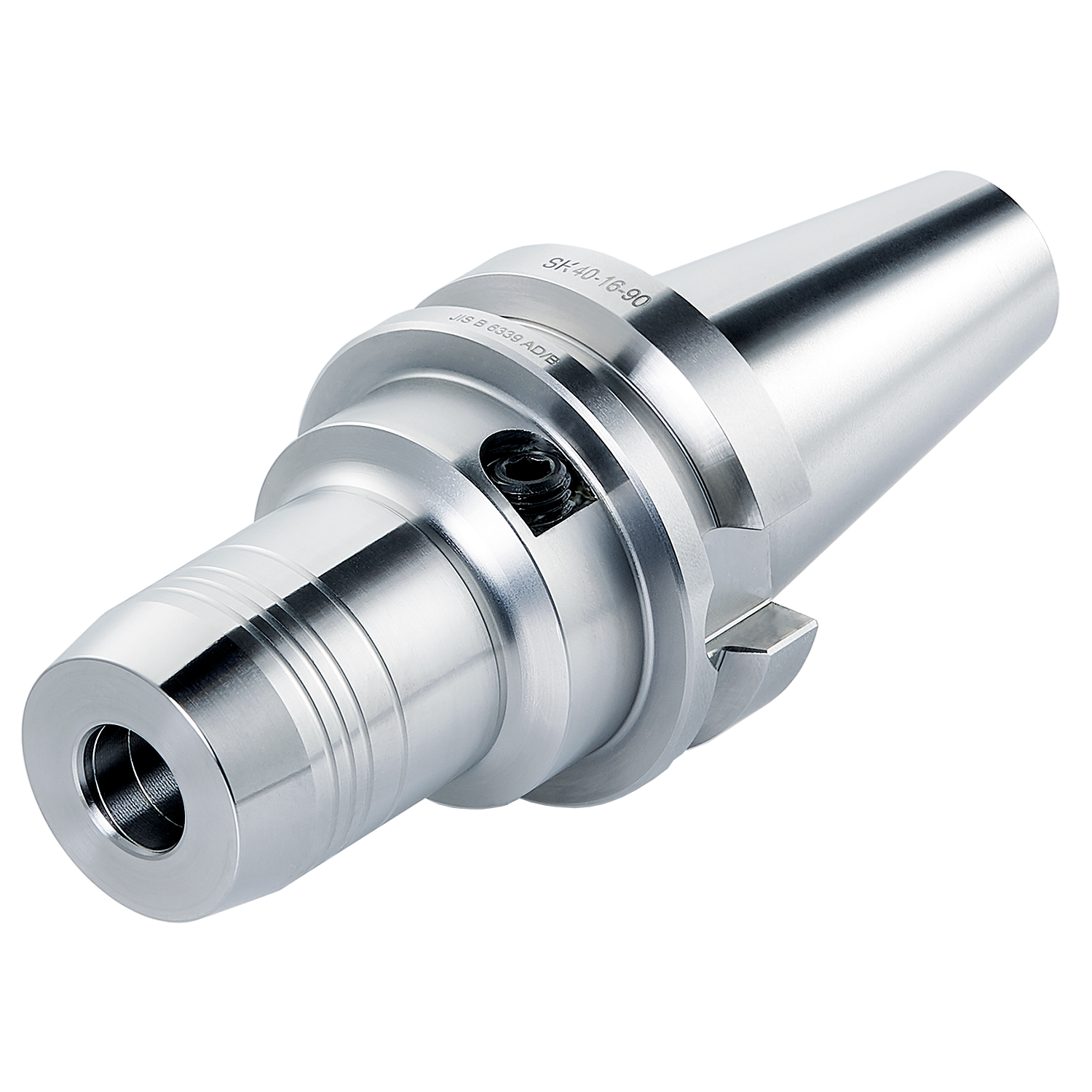

PRAMET BBT.30AD-HC.20.090 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603604034524
Product number (SAP): 86042560
Size: 30
ISO: BBT.30AD-HC.20.090
Ordering code ANSI: BBT.30AD-HC.20.090
Net weight – grams: 700
Gross weight – grams: 1004.6
Body diameter – millimeter (BD): 42 mm
Body diameter 2 – millimeters (BD2): 45 mm
Clamping length maximum – millimeters (LSCX): 52 mm
Connection diameter workpiece side – millimeter (DCON WS): 20 mm
Connection text machine side (CTMS): BT30 Dual Contact
Functional height – millimeter (HF): 25 mm
Overall height – millimeter (OAH): 83 mm
Overall width – millimeters (OAW): 70 mm
Protruding length – millimeter (LPR): 90 mm
