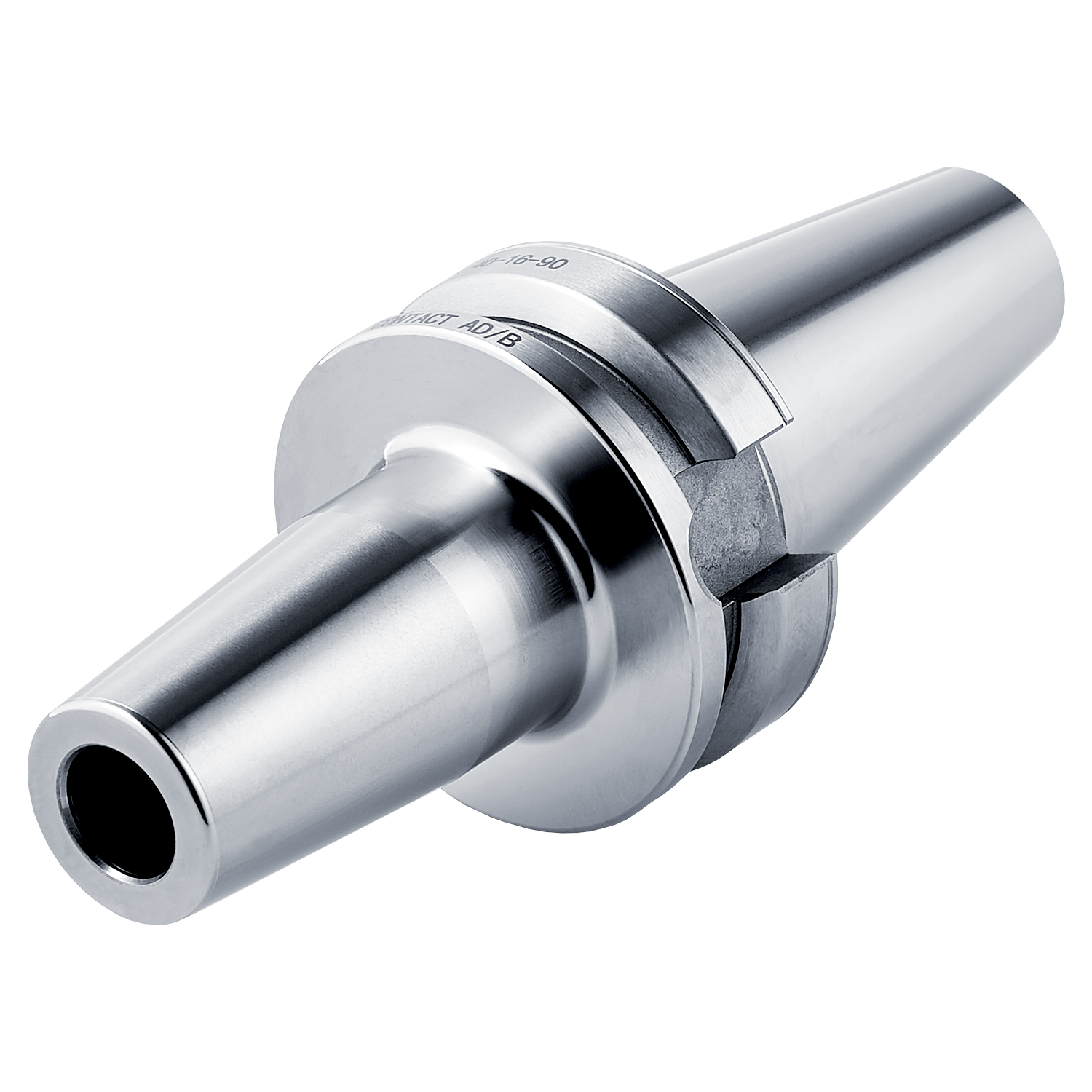

PRAMET BBT.30AD-SC.03.080 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603604034821
Product number (SAP): 86042590
Size: 30
ISO: BBT.30AD-SC.03.080
Ordering code ANSI: BBT.30AD-SC.03.080
Net weight – grams: 400
Gross weight – grams: 400
Body diameter – millimeter (BD): 11 mm
Body diameter 2 – millimeters (BD2): 15 mm
Body half taper angle (BHTA): 4.5
Connection text machine side (CTMS): BT30 Dual Contact
Connection text workpiece side (CTWS): 3
Functional height – millimeter (HF): 25 mm
Overall height – millimeter (OAH): 78 mm
Overall width – millimeters (OAW): 76 mm
Protruding length – millimeter (LPR): 80 mm
