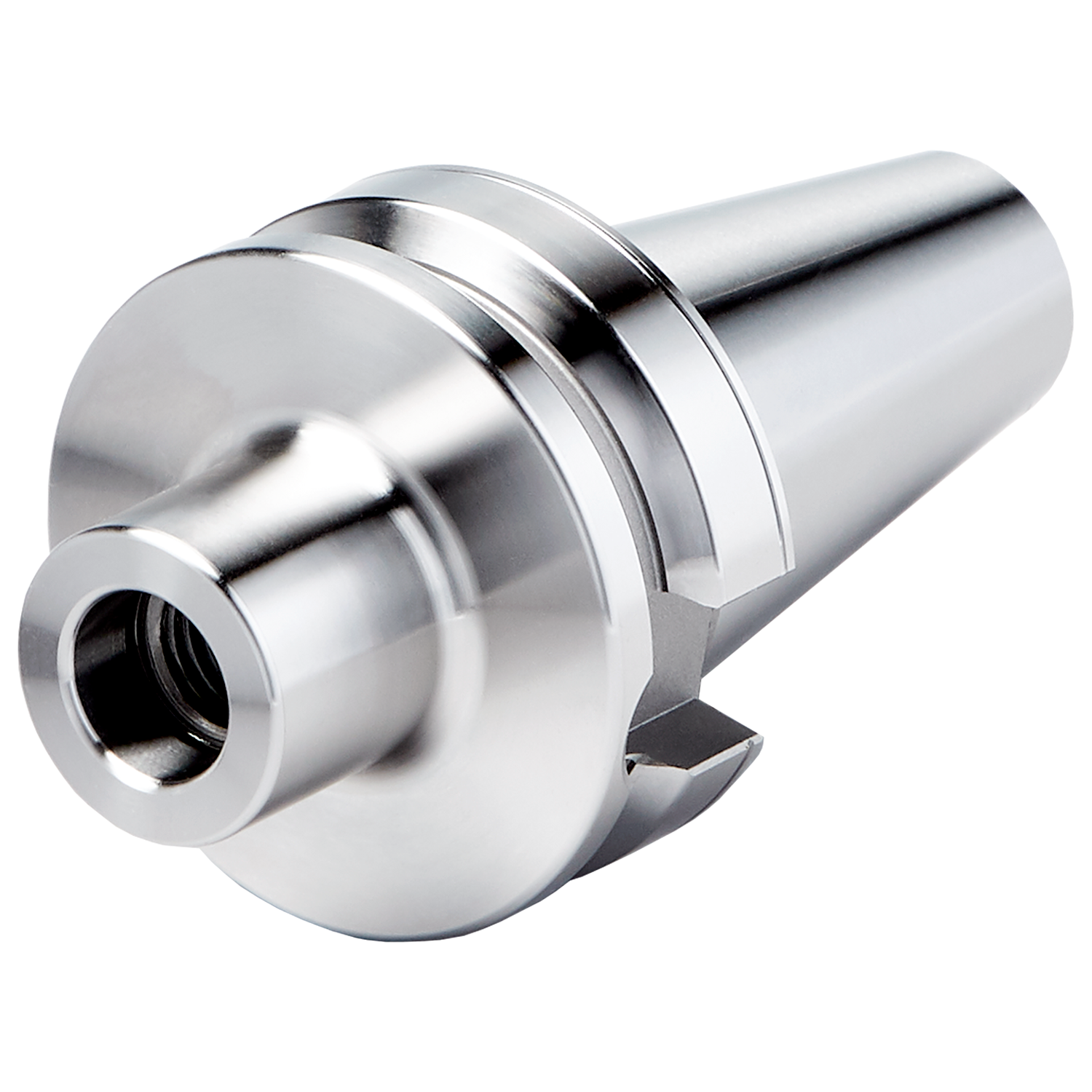

PRAMET BBT.40ADB-IHA.M16.100 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603604034692
Product number (SAP): 86042577
Size: 40
ISO: BBT.40ADB-IHA.M16.100
Ordering code ANSI: BBT.40ADB-IHA.M16.100
Net weight – grams: 1000
Gross weight – grams: 1000
Body diameter – millimeter (BD): 29 mm
Clamping length maximum – millimeters (LSCX): 100 mm
Connection text machine side (CTMS): BT40 Dual Contact
Connection text workpiece side (CTWS): M16
Functional height – millimeter (HF): 32 mm
Overall height – millimeter (OAH): 110 mm
Overall width – millimeters (OAW): 115 mm
Protruding length – millimeter (LPR): 127 mm
