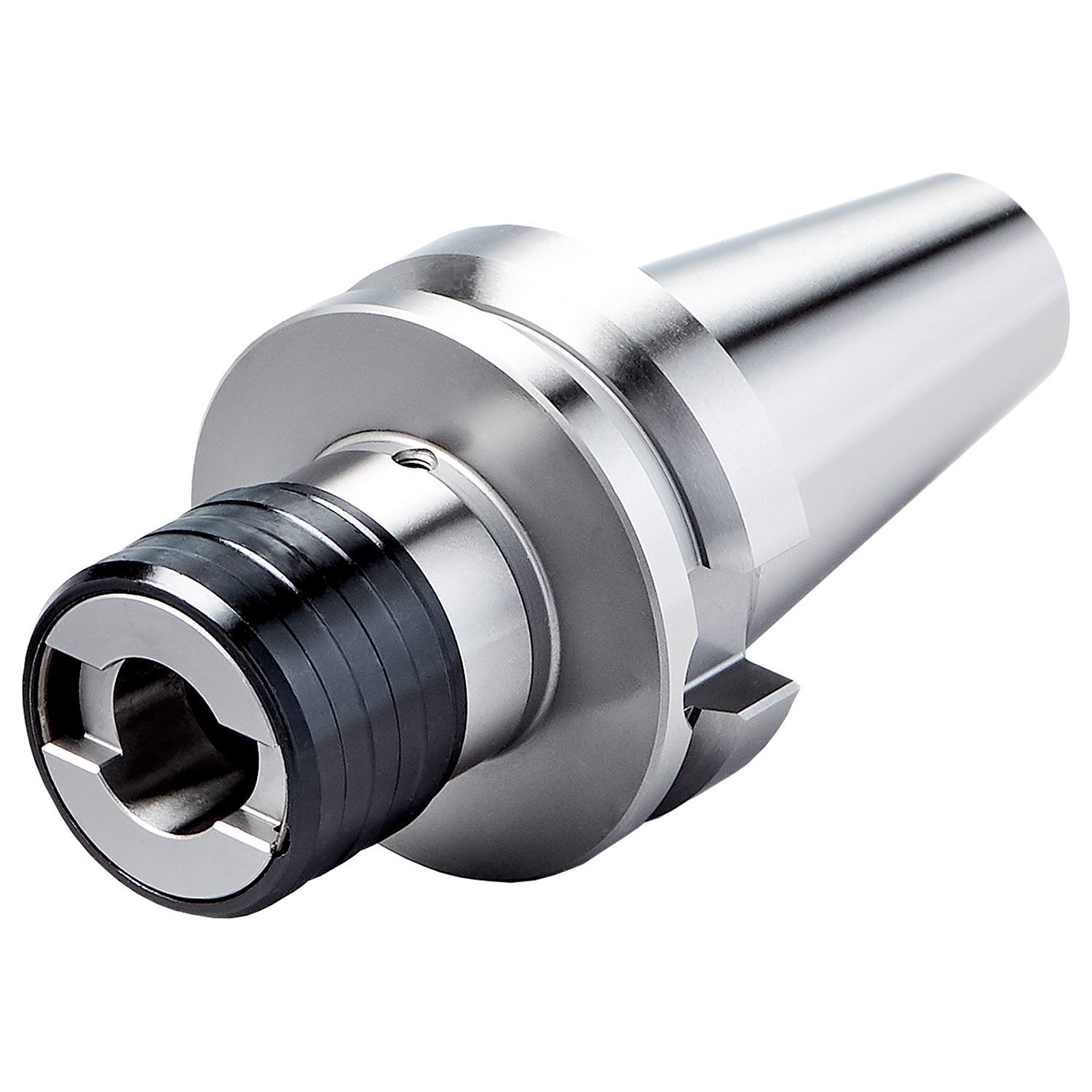

PRAMET BBT.40ADB-QT.ER16.079 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603604034777
Product number (SAP): 86042585
Size: 40
ISO: BBT.40ADB-QT.ER16.079
Ordering code ANSI: BBT.40ADB-QT.ER16.079
Net weight – grams: 2000
Gross weight – grams: 2000
Axial Floating Back – millimeters (FLB): 0.5 mm
Axial Floating Forward – millimeters (FLF): 0.5 mm
Body diameter – millimeter (BD): 28 mm
Connection bore diameter minimum – millimeter (DCBN): 1 mm
Connection bore diameter maximum – millimeter (DCBX): 10 mm
Connection text machine side (CTMS): BT40 Dual Contact
Connection text workpiece side (CTWS): ER16
Functional height – millimeter (HF): 32 mm
Overall height – millimeter (OAH): 110 mm
Overall width – millimeters (OAW): 115 mm
Protruding length – millimeter (LPR): 79 mm
