PRAMET BBT.40ADB-W.12.063 Tooling system

Product Code: BBT.40ADB-W.12.063

$175.62$159.65 Ex. GST

Product Code: BBT.40ADB-W.12.063 SKU BBT.40ADB-W.12.063 Categories CUTTING TOOLS (HSS & Carbide), Holding

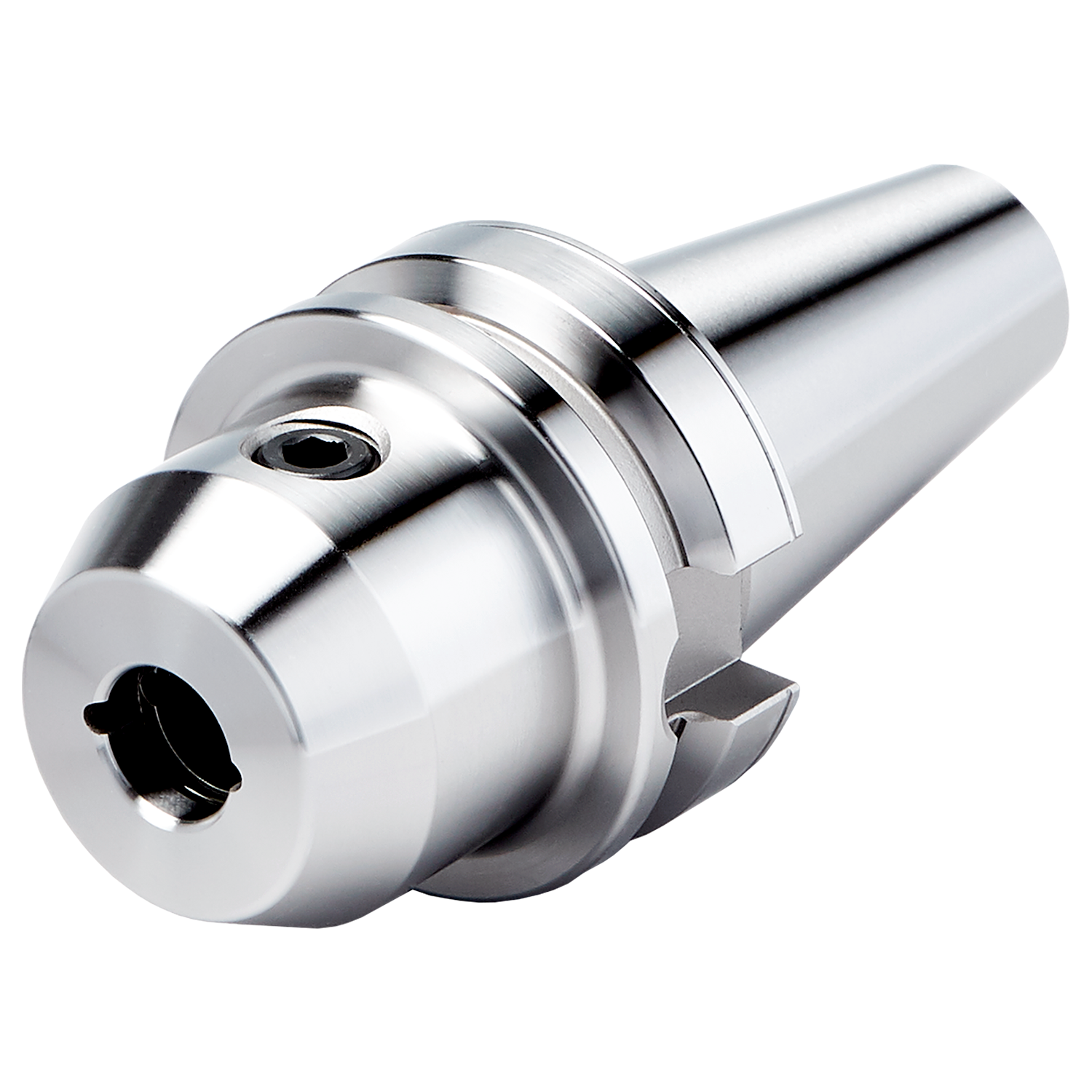

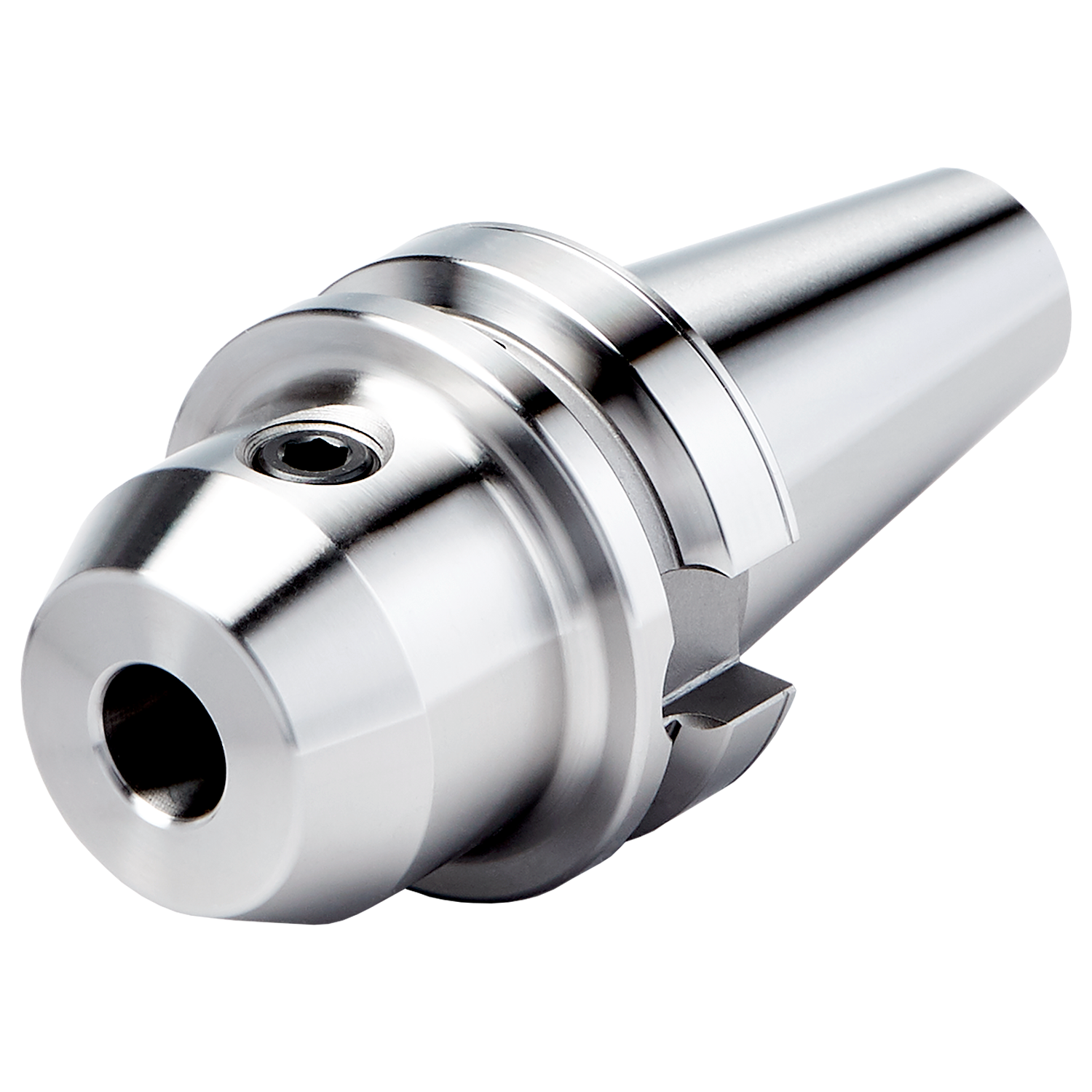

PRAMET BBT.40ADB-W.12.063 Tooling system

PRAMET BBT.40ADB-W.12.063 Tooling system - Image 2

PRAMET BBT.40ADB-W.12.063 Tooling system - Image 3

PRAMET BBT.40ADB-W.12.063 Tooling system - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

BT Dual contact – Weldon End Mill Holders

Additional information

Weight	1.2000 kg
barcode	3603604035293

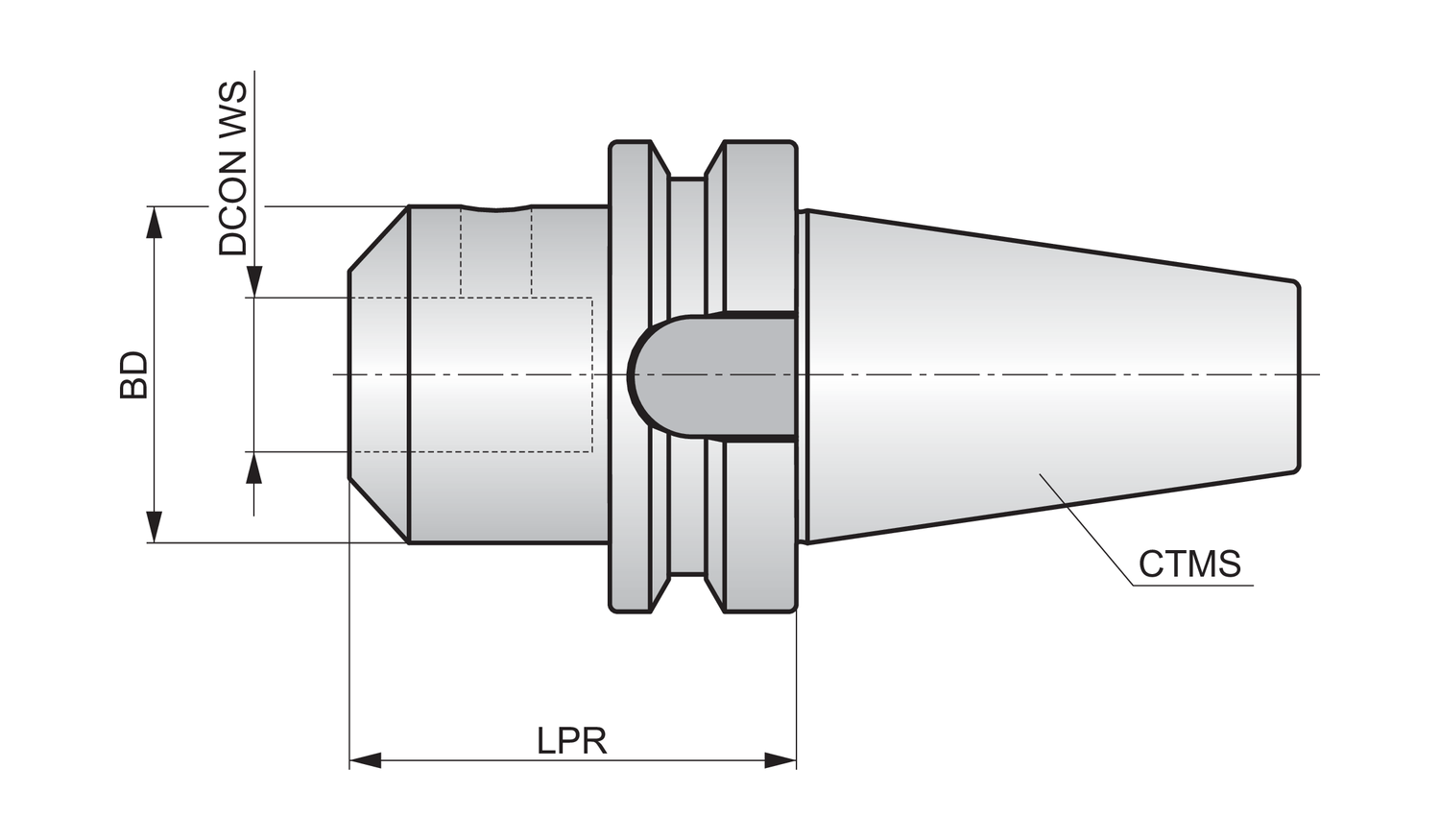

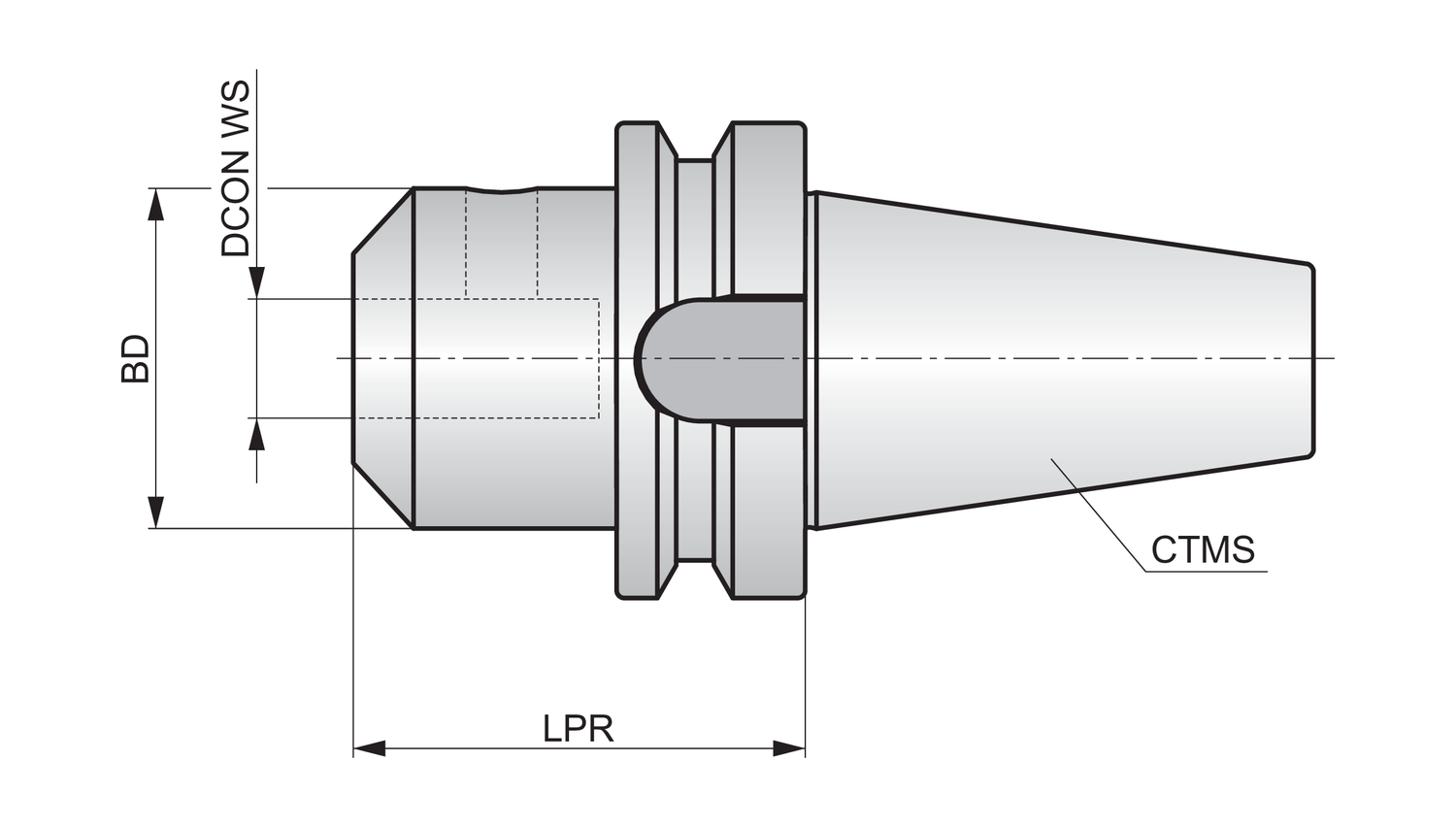

Additional Information	Description: Value Brand Name: Dormer Pramet EAN number: 3603604035293 Product number (SAP): 86042637 Size: 40 ISO: BBT.40ADB-W.12.063 Ordering code ANSI: BBT.40ADB-W.12.063 Net weight – grams: 1200 Gross weight – grams: 1200 Body diameter – millimeter (BD): 42 mm Connection diameter workpiece side – millimeter (DCON WS): 12 mm Connection text machine side (CTMS): BT40 Dual Contact Connection text workpiece side (CTWS): W12 Protruding length – millimeter (LPR): 63 mm
