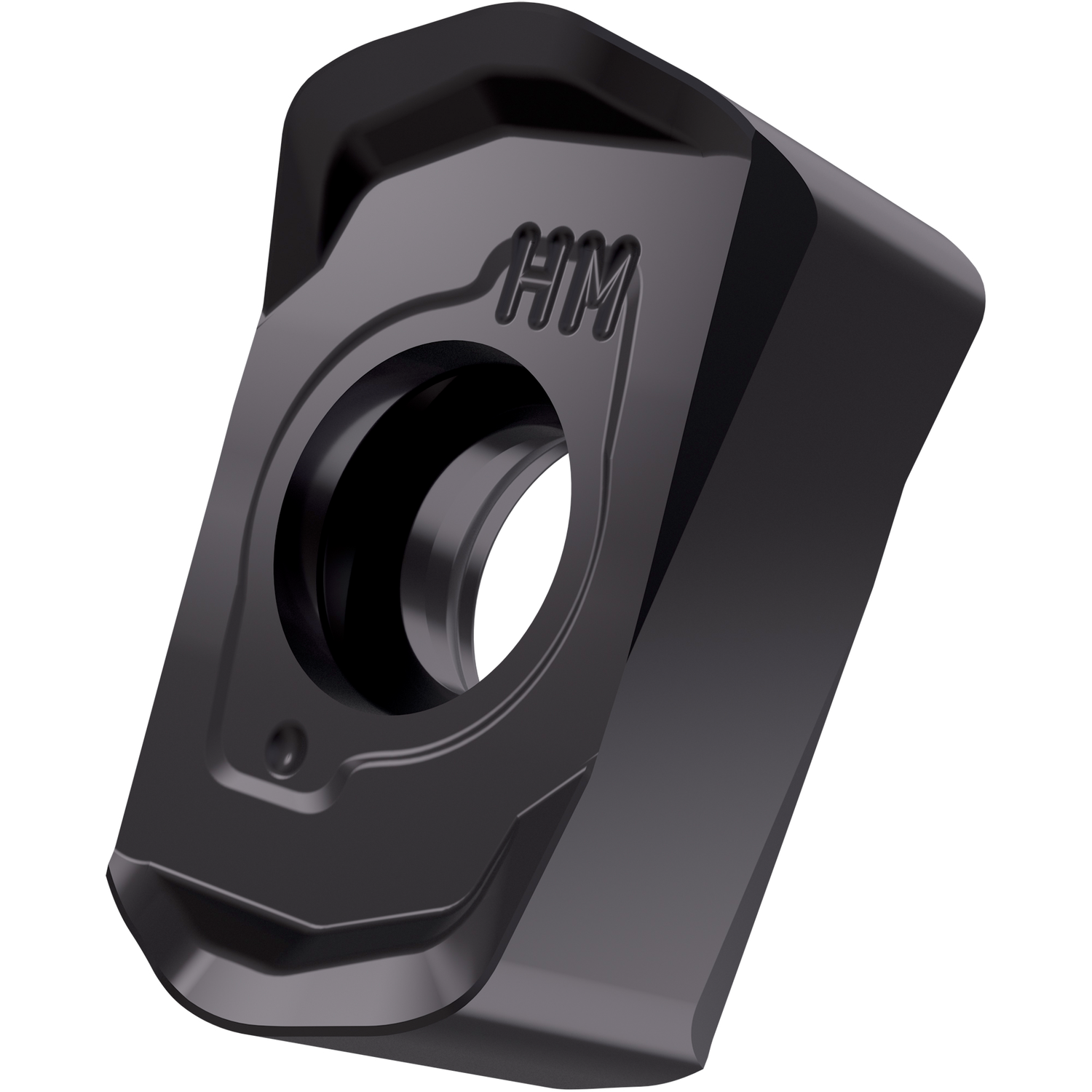

PRAMET BNGX 10T308SR-HM:8215 Milling Insert for HFC Cutters

Product Code: BNGX 10T308SR-HM:8215

$32.75$29.77 Ex. GST

Product Code: BNGX 10T308SR-HM:8215 SKU BNGX 10T308SR-HM:8215 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Double-sided milling insert BNGX 10T3, 82° parallelogram and high-feed design for a maximum depth of cut of 1.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-G and HM geometry with rounded cutting edges and facet, 8215 PVD coated fine grained WC-Co carbide within ISO-grade range H10 -H15 for machining of hardened material with high feed cutters SBN10

Additional information

Weight 0.0318 kg
barcode
Additional Information

Description: Value
EAN number: 3603603386471
Product number (SAP): 80030277
Ordering code ANSI: BNGX 10T308SR-HM:8215
Gross weight – grams: 2.279
Insert width – millimeter (W1): 5.8 mm
Fixing hole diameter – millimeter (D1): 2.76 mm
Cutting edge length – millimeter (L): 9.92 mm
Insert thickness – millimeter (S): 3.9 mm
Grade: 8215
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: N 0°
Insert size: 10
Insert Type: X
Chipbreaker manufacturer's designation (CBMD): HM
Insert shape code (SC): B – parallelogram 82° included angle
ISO: BNGX10T308SR-HM:8215

Brand

PRAMET
