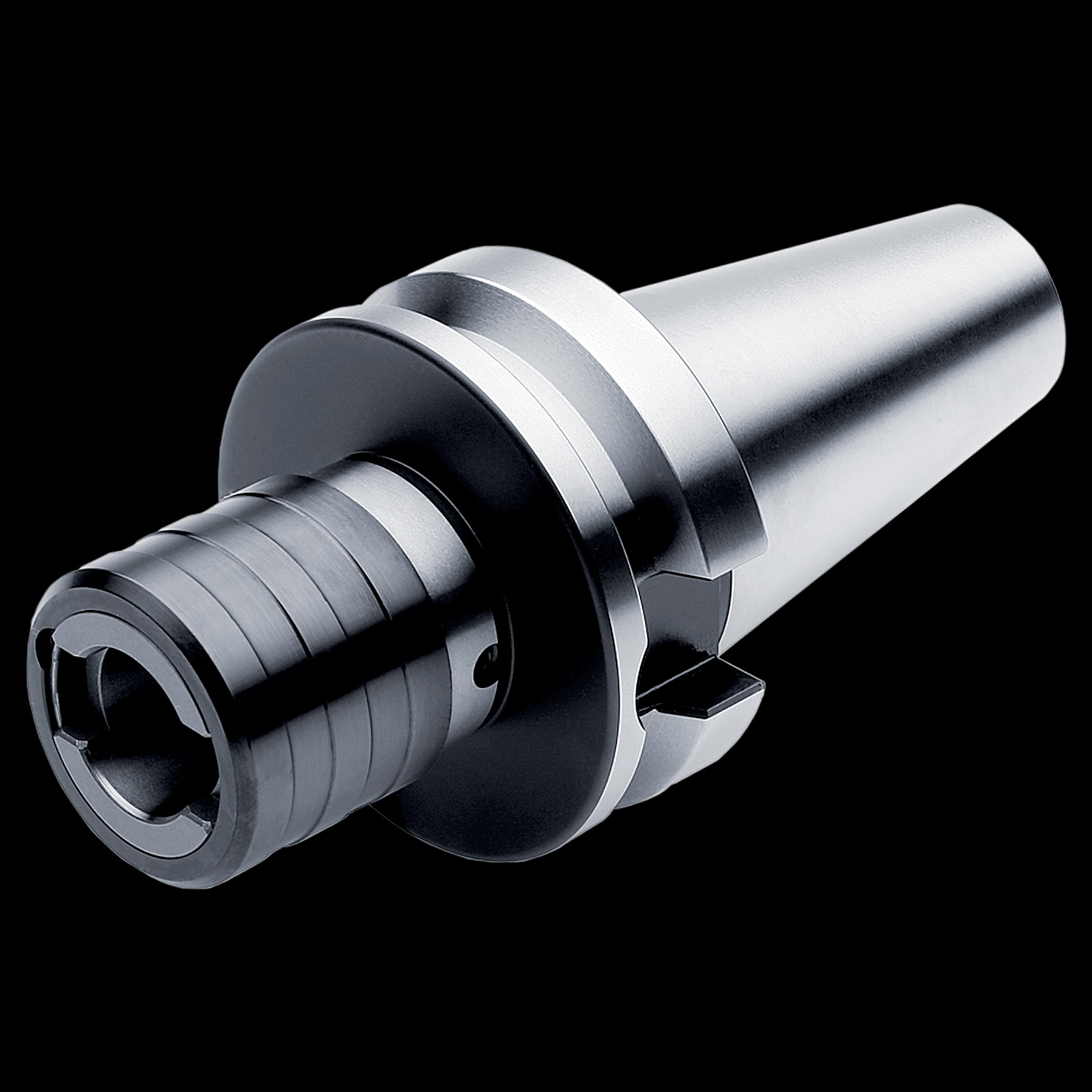

PRAMET BT.30A-QTCC.M5.M22 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603197428
Product number (SAP): 86028606
Size: 30
ISO: BT.30A-QTCC.M5.M22
Ordering code ANSI: BT.30A-QTCC.M5.M22
Net weight – grams: 1109.5
Gross weight – grams: 1186
Axial Floating Back – millimeters (FLB): 12 mm
Axial Floating Forward – millimeters (FLF): 12 mm
Body diameter – millimeter (BD): 54 mm
Connection diameter workpiece side – millimeter (DCON WS): 31 mm
Connection size Value (CSIZE): M5 – M22
Connection text machine side (CTMS): BT 30
Functional length – millimeter (LF): 95 mm
