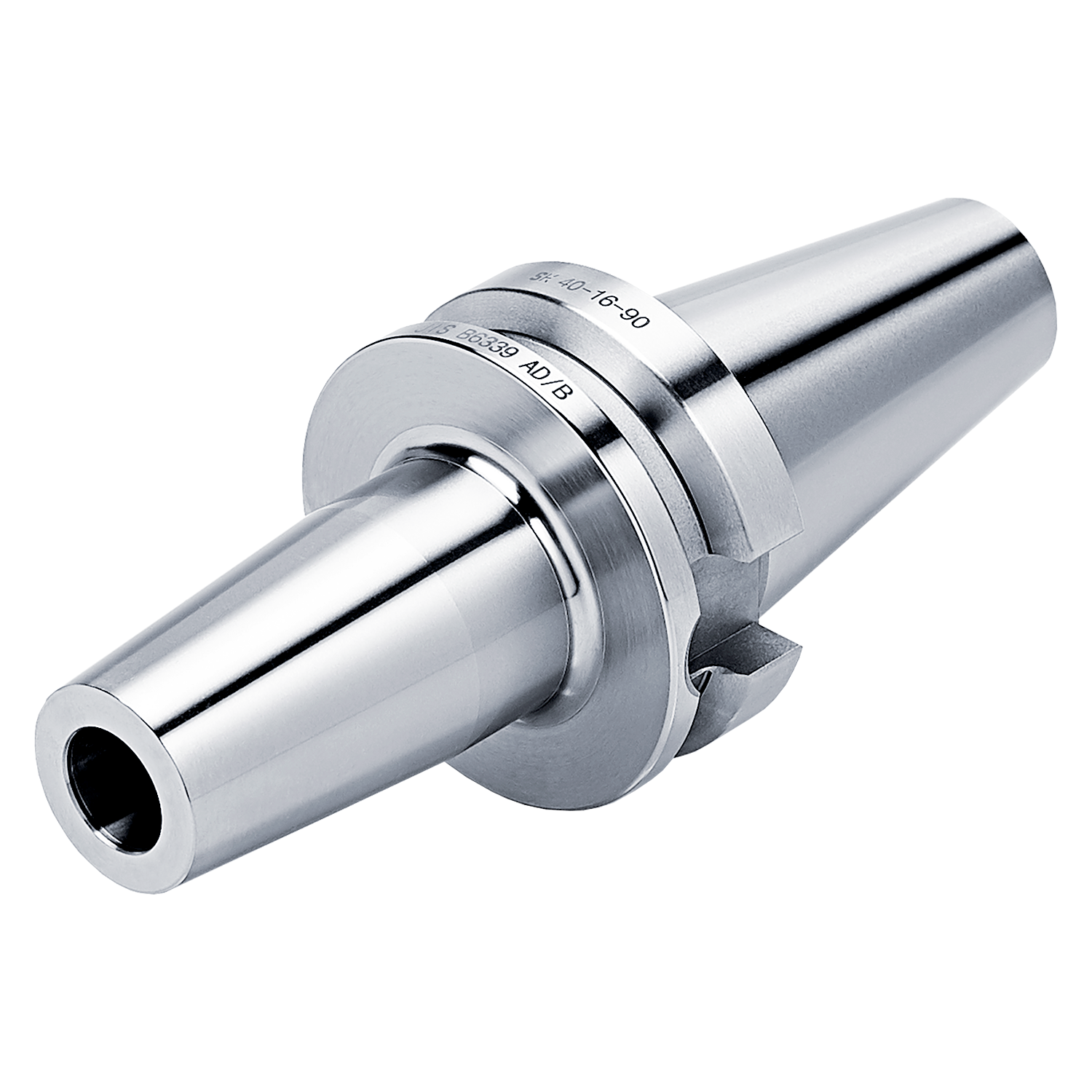

PRAMET BT.40ADB-IHA.M12.125 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603199088
Product number (SAP): 86028772
Size: 40
ISO: BT.40ADB-IHA.M12.125
Ordering code ANSI: BT.40ADB-IHA.M12.125
Net weight – grams: 1437
Gross weight – grams: 1535
Body diameter – millimeter (BD): 21 mm
Body diameter 2 – millimeters (BD2): 36 mm
Body length – millimeter (LB): 152 mm
Connection diameter tolerance workpiece side (TCDCONWS): H4
Connection diameter workpiece side – millimeter (DCON WS): 12.5 mm
Connection text machine side (CTMS): BT 40
Connection thread nominal size workpiece side (THSZWS): M12
Protruding length – millimeter (LPR): 152 mm
