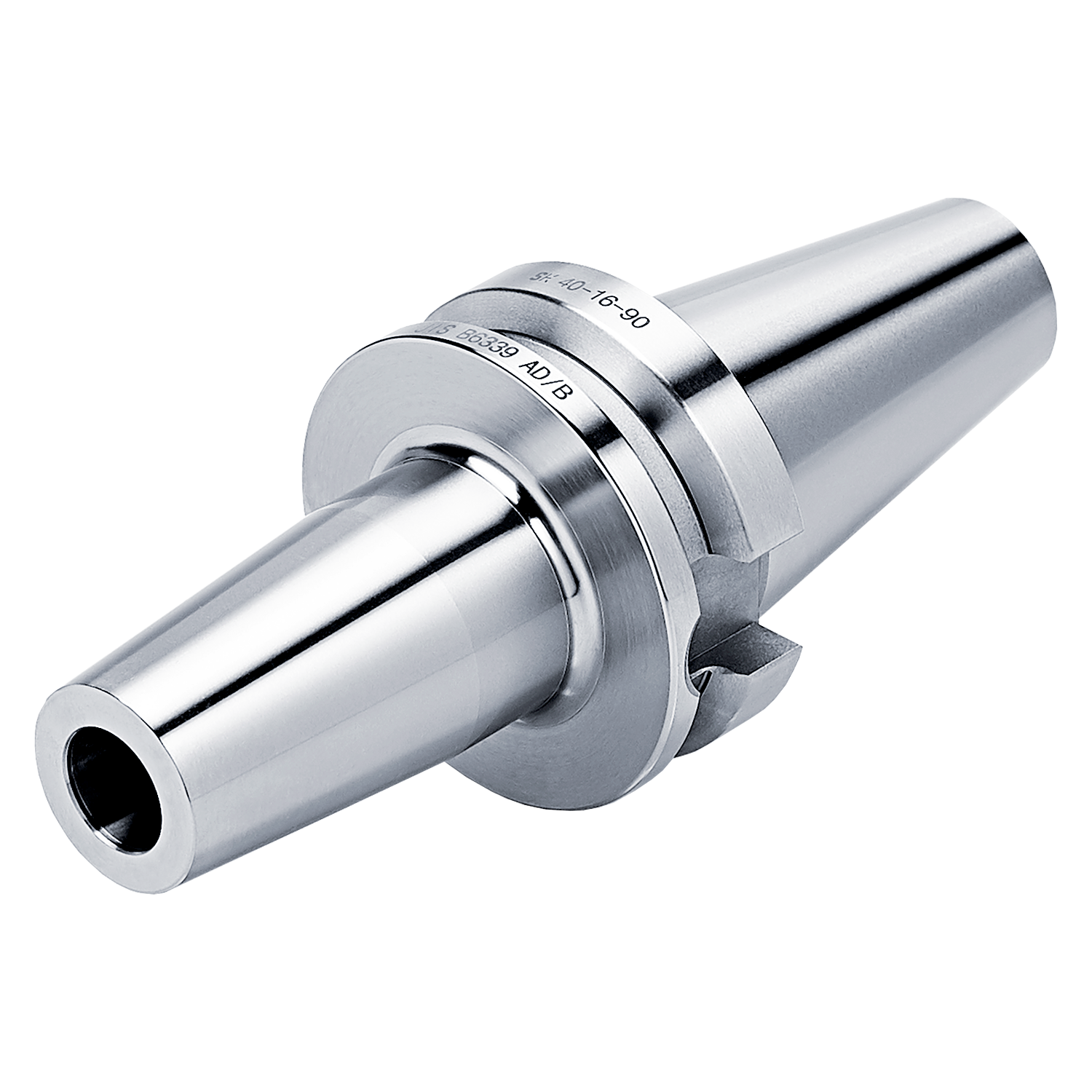

PRAMET BT.40ADB-IHA.M16.025 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603199095
Product number (SAP): 86028773
Size: 40
ISO: BT.40ADB-IHA.M16.025
Ordering code ANSI: BT.40ADB-IHA.M16.025
Net weight – grams: 1014.6
Gross weight – grams: 1102.9
Body diameter – millimeter (BD): 29 mm
Body diameter 2 – millimeters (BD2): 29 mm
Body length – millimeter (LB): 52 mm
Connection diameter tolerance workpiece side (TCDCONWS): H4
Connection diameter workpiece side – millimeter (DCON WS): 17 mm
Connection text machine side (CTMS): BT 40
Connection thread nominal size workpiece side (THSZWS): M16
Protruding length – millimeter (LPR): 52 mm
