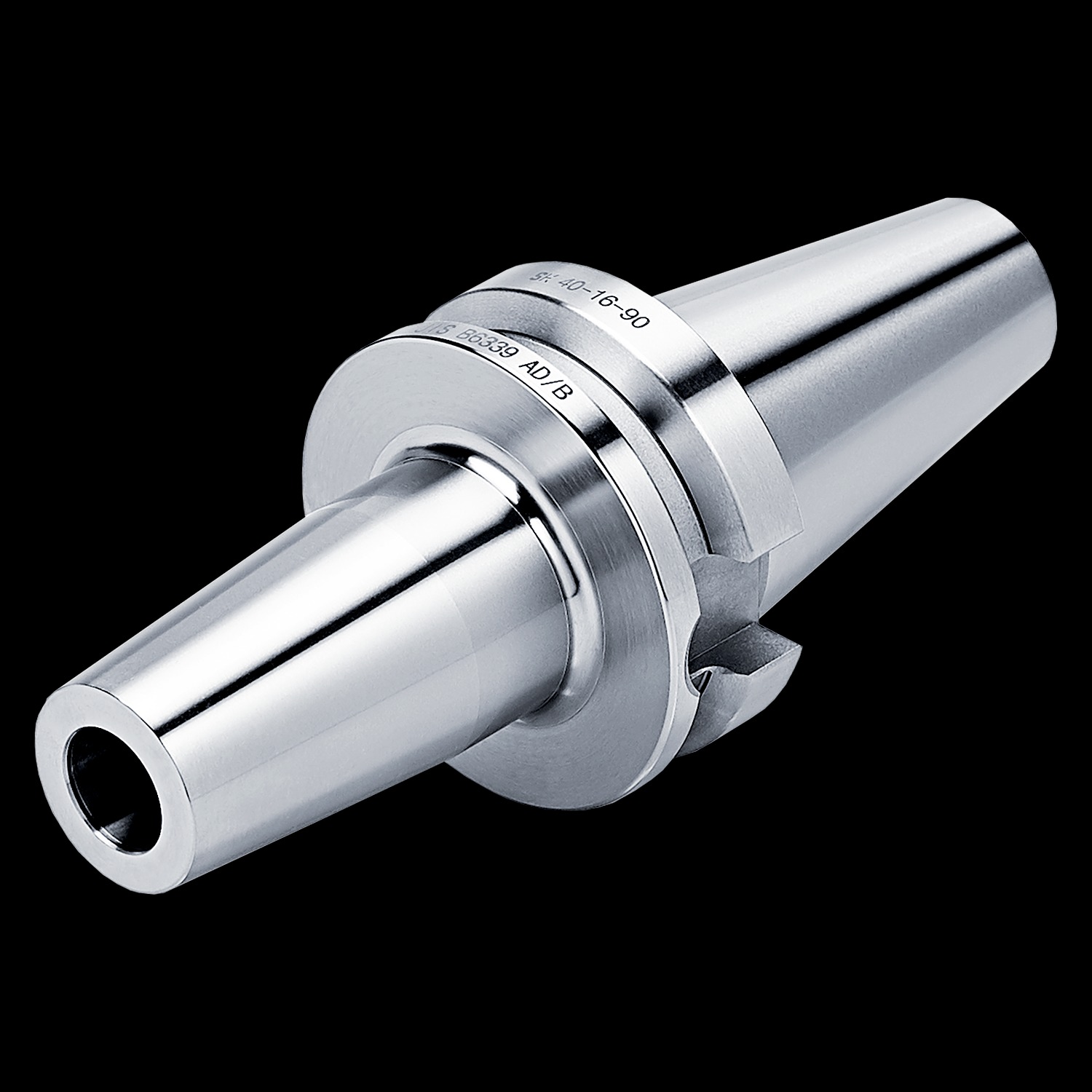

PRAMET BT.40ADB-IHA.M8.100 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603199217
Product number (SAP): 86028785
Size: 40
ISO: BT.40ADB-IHA.M8.100
Ordering code ANSI: BT.40ADB-IHA.M8.100
Net weight – grams: 1103
Gross weight – grams: 1166
Body diameter – millimeter (BD): 13 mm
Body diameter 2 – millimeters (BD2): 25 mm
Body length – millimeter (LB): 127 mm
Connection diameter tolerance workpiece side (TCDCONWS): H4
Connection diameter workpiece side – millimeter (DCON WS): 8.5 mm
Connection text machine side (CTMS): BT 40
Connection thread nominal size workpiece side (THSZWS): M8
Protruding length – millimeter (LPR): 127 mm
