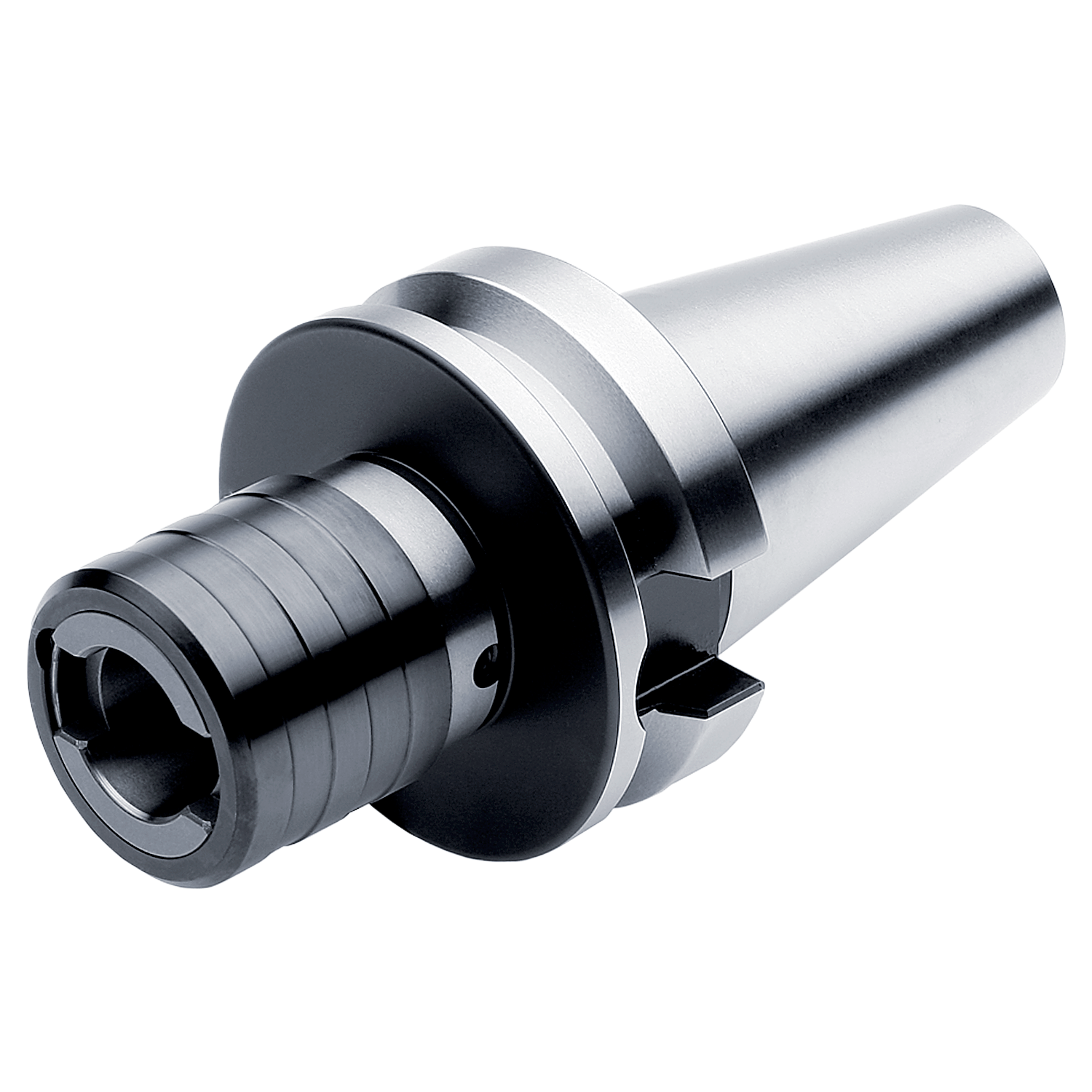

PRAMET BT.40ADB-QT.ER25.089 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603604036382
Product number (SAP): 86042744
Size: 40
ISO: BT.40ADB-QT.ER25.089
Ordering code ANSI: BT.40ADB-QT.ER25.089
Net weight – grams: 1340
Gross weight – grams: 1341
Axial Floating Back – millimeters (FLB): 0.5 mm
Axial Floating Forward – millimeters (FLF): 0.5 mm
Body diameter – millimeter (BD): 42 mm
Connection bore diameter minimum – millimeter (DCBN): 2 mm
Connection bore diameter maximum – millimeter (DCBX): 16 mm
Connection text machine side (CTMS): BT40
Connection text workpiece side (CTWS): ER25
Protruding length – millimeter (LPR): 89 mm
