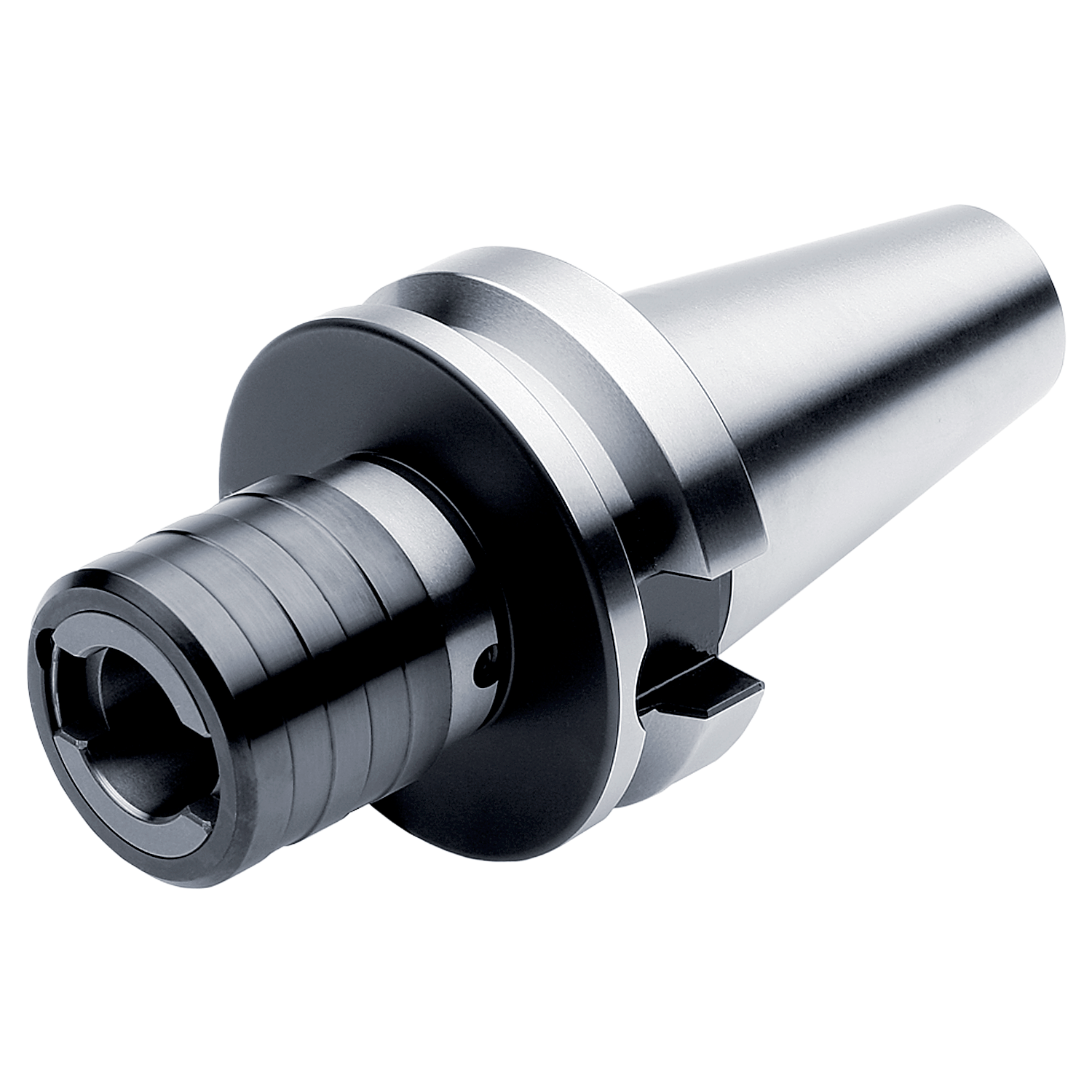

PRAMET BT.40ADB-QT.ER40.115 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603604036405
Product number (SAP): 86042746
Size: 40
ISO: BT.40ADB-QT.ER40.115
Ordering code ANSI: BT.40ADB-QT.ER40.115
Net weight – grams: 2500
Gross weight – grams: 2500
Axial Floating Back – millimeters (FLB): 0.5 mm
Axial Floating Forward – millimeters (FLF): 0.5 mm
Body diameter – millimeter (BD): 63 mm
Connection bore diameter minimum – millimeter (DCBN): 3 mm
Connection bore diameter maximum – millimeter (DCBX): 26 mm
Connection text machine side (CTMS): BT40
Connection text workpiece side (CTWS): ER40
Protruding length – millimeter (LPR): 115 mm
