PRAMET BT.40ADB-W.25.090.C Tooling system

Product Code: BT.40ADB-W.25.090.C

$214.14$194.67 Ex. GST

Product Code: BT.40ADB-W.25.090.C SKU BT.40ADB-W.25.090.C Categories CUTTING TOOLS (HSS & Carbide), Holding, N1 - Tooling system

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

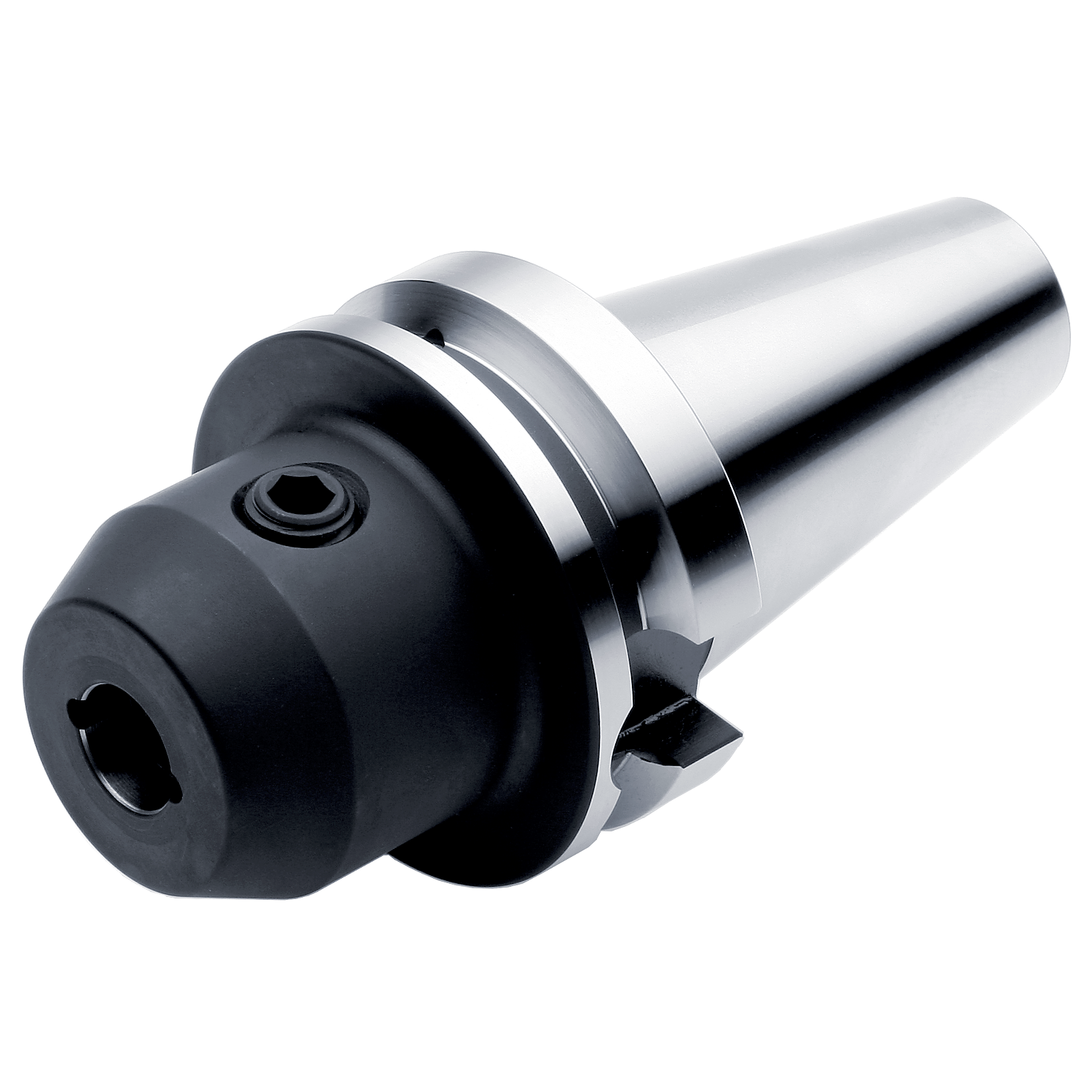

MAS 403 BT Weldon End Mill Holder With Coolant Channels

Weight	0.2079 kg
barcode
Additional Information	Description: Value Brand Name: Dormer Pramet EAN number: 3603603196292 Product number (SAP): 86028493 Size: 40 ISO: BT.40ADB-W.25.090.C Ordering code ANSI: BT.40ADB-W.25.090.C Net weight – grams: 2145.5 Gross weight – grams: 2225.5 Body diameter – millimeter (BD): 65 mm Connection diameter tolerance workpiece side (TCDCONWS): H4 Connection diameter workpiece side – millimeter (DCON WS): 25 mm Connection text machine side (CTMS): BT 40 Protruding length – millimeter (LPR): 90 mm
