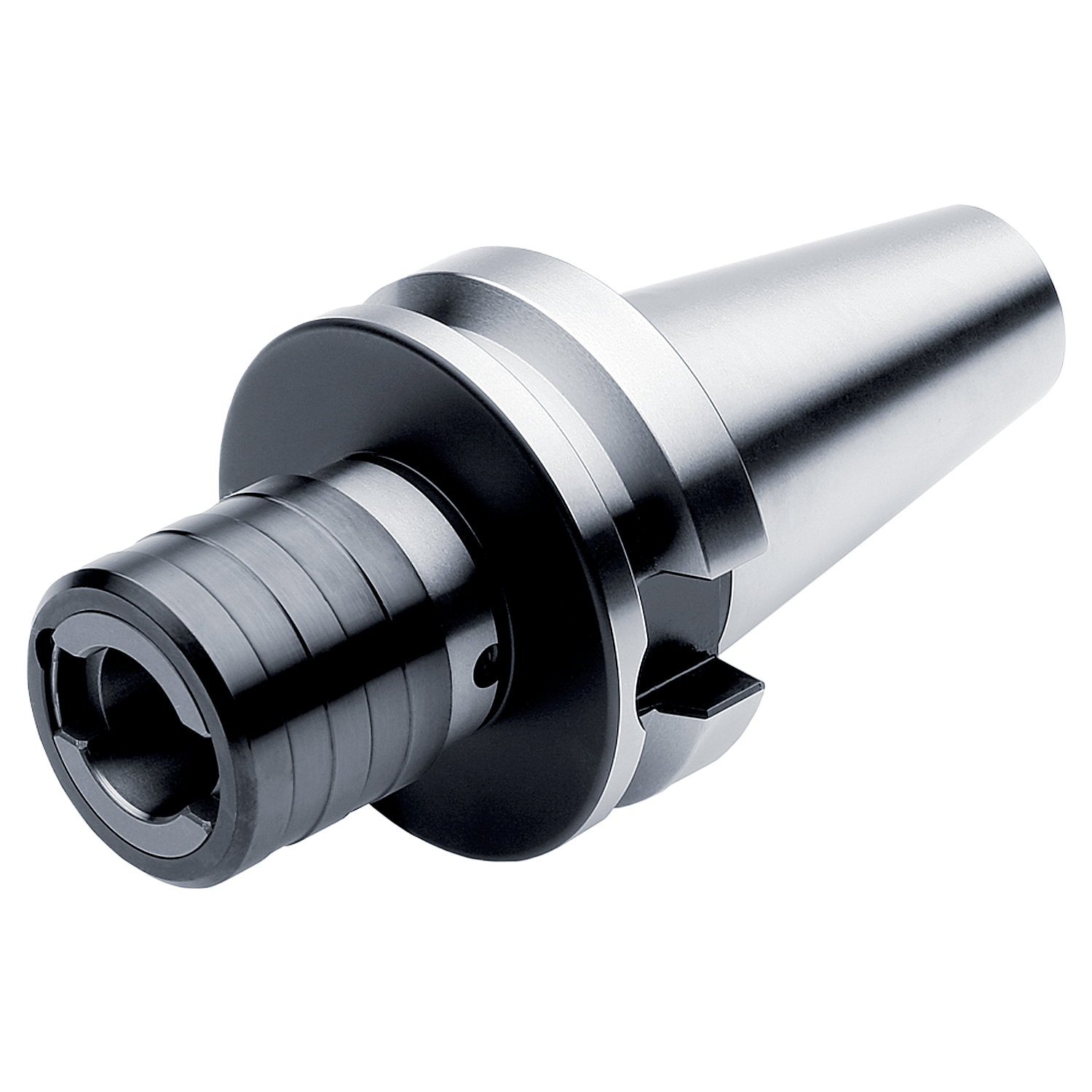

PRAMET BT.50ADB-QT.ER32.120 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603604036436
Product number (SAP): 86042749
Size: 50
ISO: BT.50ADB-QT.ER32.120
Ordering code ANSI: BT.50ADB-QT.ER32.120
Net weight – grams: 4500
Gross weight – grams: 4500
Axial Floating Back – millimeters (FLB): 0.5 mm
Axial Floating Forward – millimeters (FLF): 0.5 mm
Body diameter – millimeter (BD): 50 mm
Connection bore diameter minimum – millimeter (DCBN): 2 mm
Connection bore diameter maximum – millimeter (DCBX): 20 mm
Connection text machine side (CTMS): BT50
Connection text workpiece side (CTWS): ER32
Protruding length – millimeter (LPR): 120 mm
