PRAMET C3-SCLCR-11065-09 Turning C holders Int & Ext

Product Code: C3-SCLCR-11065-09

$743.16$675.60 Ex. GST

Product Code: C3-SCLCR-11065-09 SKU C3-SCLCR-11065-09 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

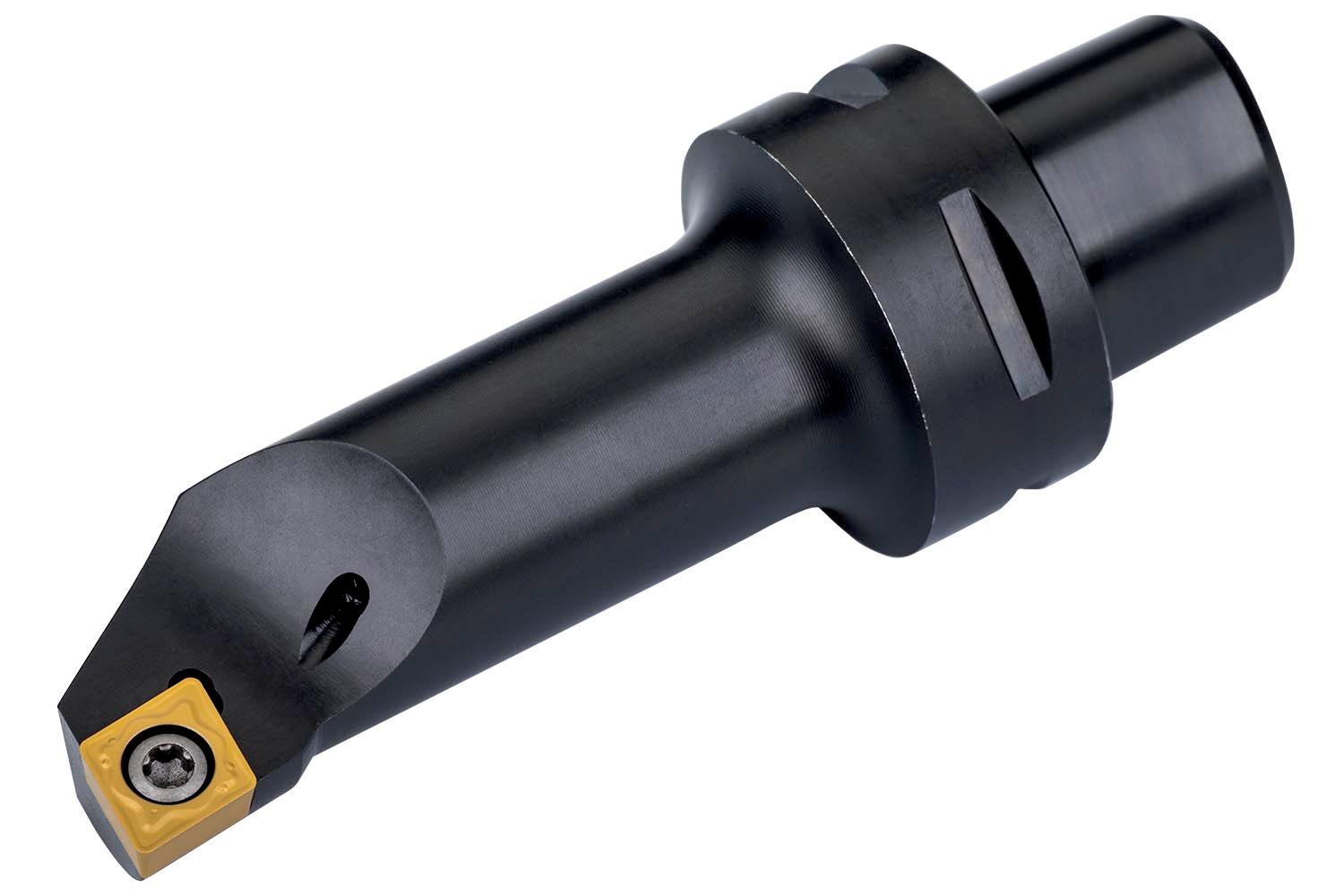

Screw clamp boring bar for holding a 80° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation CC.. 09T3.. ), right hand 95° side and end cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C3, with 11mm funtional width and 65mm protruding length for taper boring and longitudinal boring with and without shoulder

Additional information

Weight 0.5698 kg
barcode
Additional Information

Description: Value
EAN number: 3603603684546
Product number (SAP): 86036391
Ordering code ANSI: C3-SCLCR-11065-09
Gross weight – grams: 209
Connection diameter – millimeter (DCON MS): 32 mm
Minimum bore diameter – millimeter (DMIN): 20 mm
Functional width – millimeter (WF): 11 mm
Functional length – millimeter (LF): 65 mm
Usable Length – millimeter (LU): 48 mm
Body diameter – millimeter (BD): 16 mm
Tool cutting edge angle (KAPR): 95
Inclination angle (LAMS): -8.4
Orthogonal rake angle (GAMO): 0
Net weight – grams: 209
Insert size: 09
ISO: C3-SCLCR-11065-09

Brand

PRAMET
