PRAMET C3-SVJBR-22040-11-B1 Turning C holders Int & Ext

Description

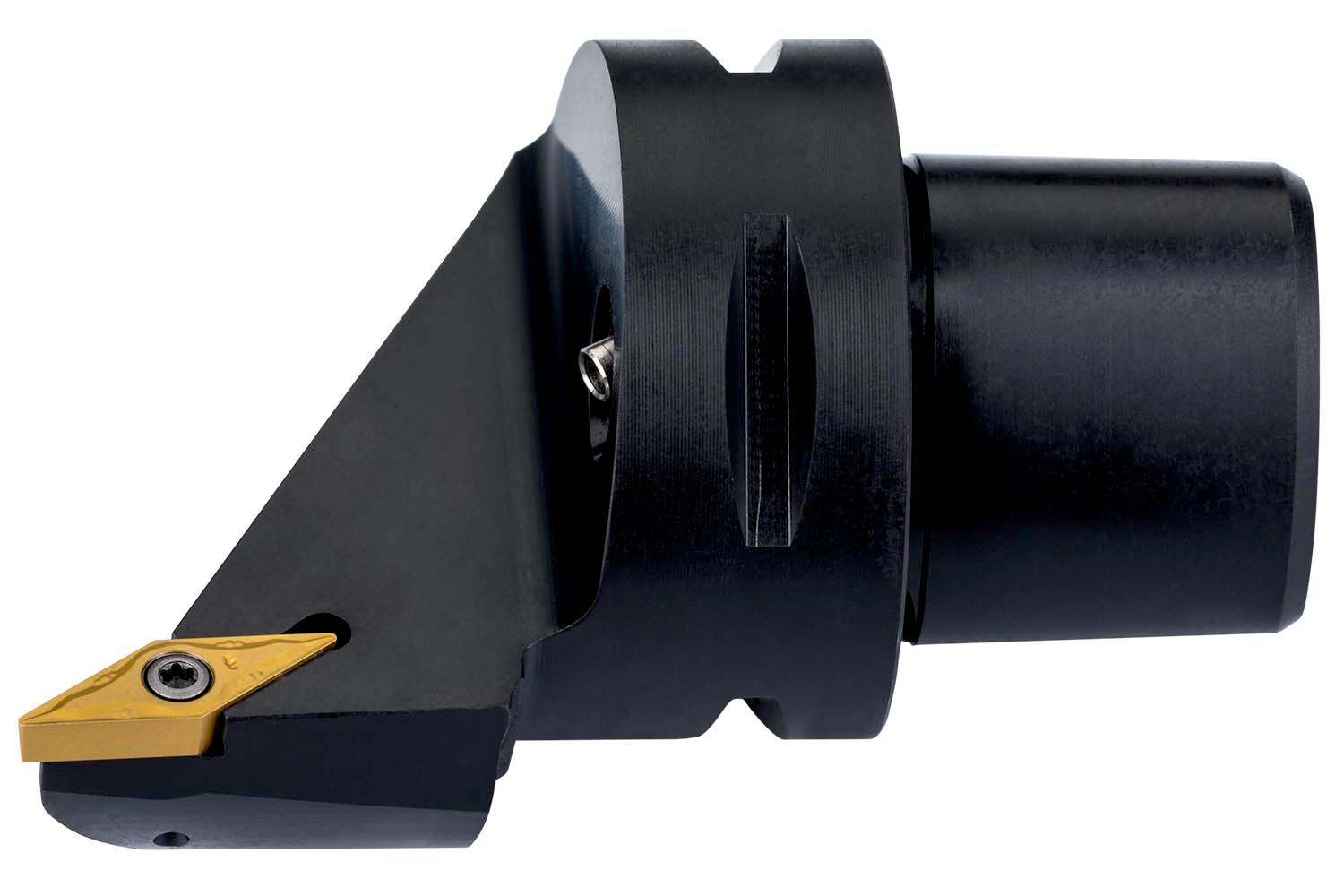

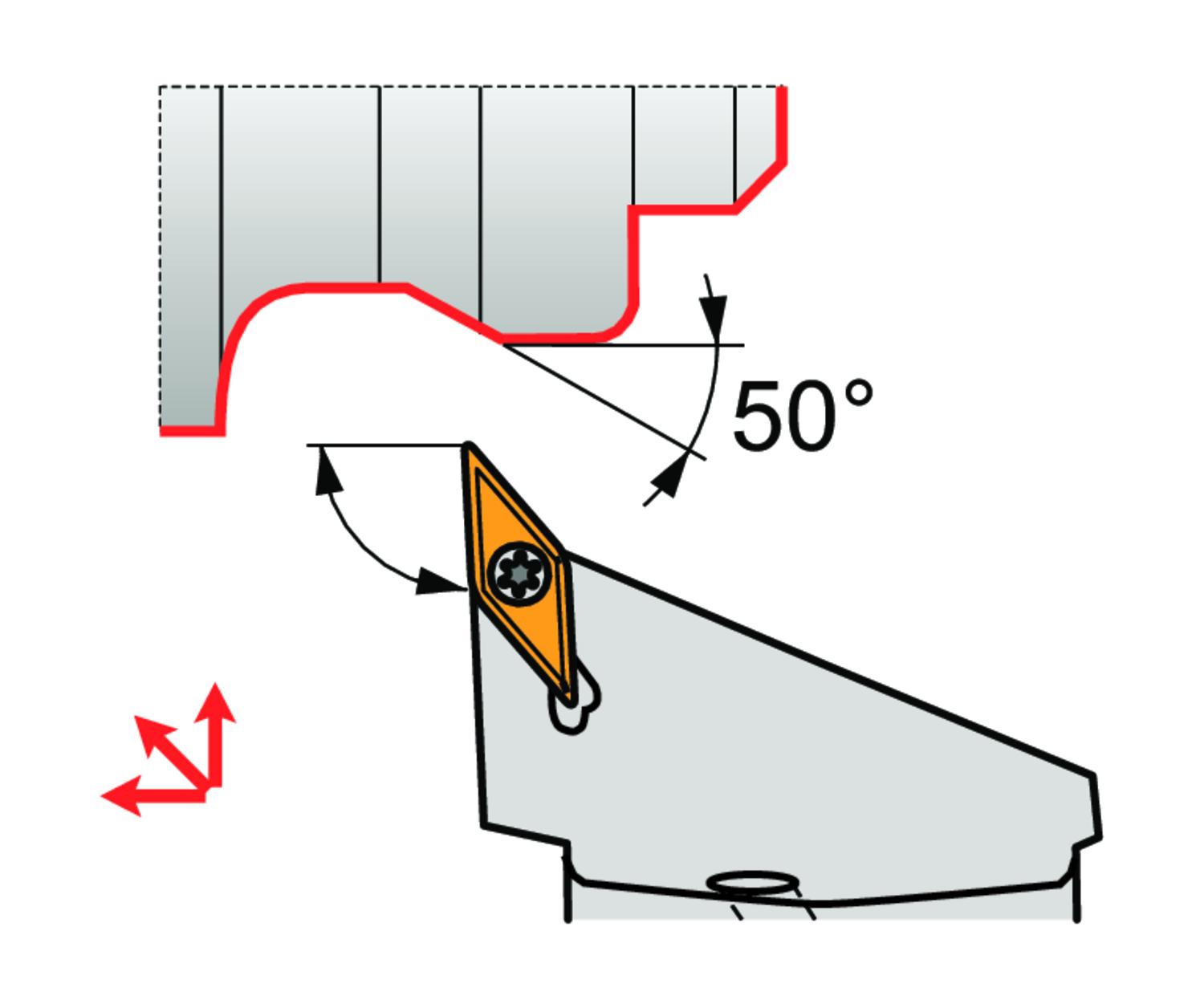

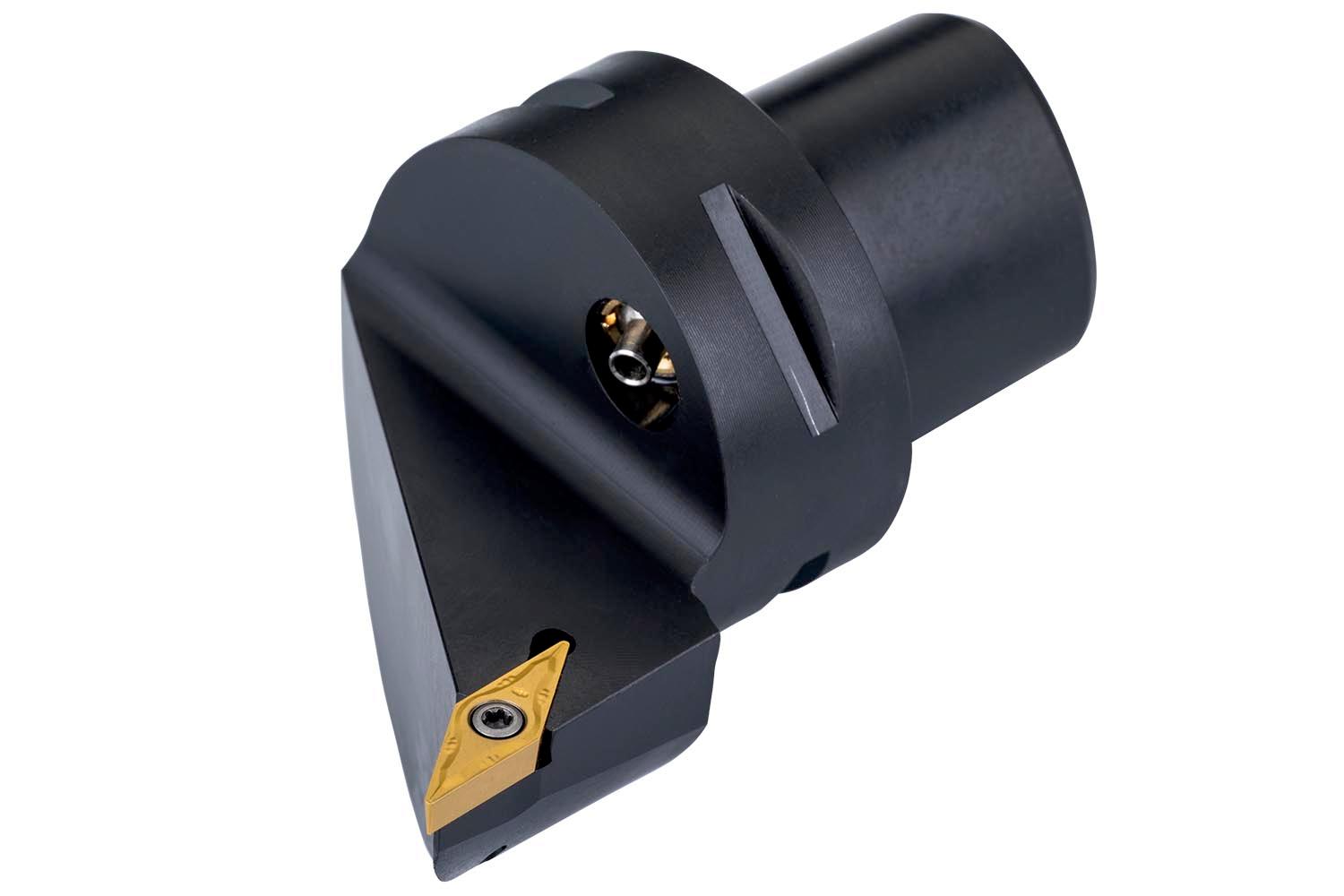

Screw clamp turning tool for holding a 35° rhombus positive insert with an inscribed circle diameter of 6.35mm, 3.18mm thick (ISO designation VB.. 1103.. or VC.. 1103.. ), right hand 93° side cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C3, with 22mm funtional width and 40mm protruding length for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

Additional information

Weight	0.1705 kg
barcode
Additional Information	Description: Value EAN number: 3603603684294 Product number (SAP): 86036366 Ordering code ANSI: C3-SVJBR-22040-11-B1 Gross weight – grams: 170.5 Connection diameter – millimeter (DCON MS): 32 mm Functional width – millimeter (WF): 22 mm Functional length – millimeter (LF): 40 mm Tool cutting edge angle (KAPR): 93 Inclination angle (LAMS): 0 Orthogonal rake angle (GAMO): 0 Net weight – grams: 170.5 Insert size: 11 ISO: C3-SVJBR-22040-11-B1

Need Technical Advice?

Description

Additional information

Brand

PRAMET
