PRAMET C4-DCLNL-27050-12 Turning C holders Int & Ext

Product Code: C4-DCLNL-27050-12

$533.28$484.80 Ex. GST

Product Code: C4-DCLNL-27050-12 SKU C4-DCLNL-27050-12 Categories , ,
PRAMET C4-DCLNL-27050-12 Turning C holders Int & Ext

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

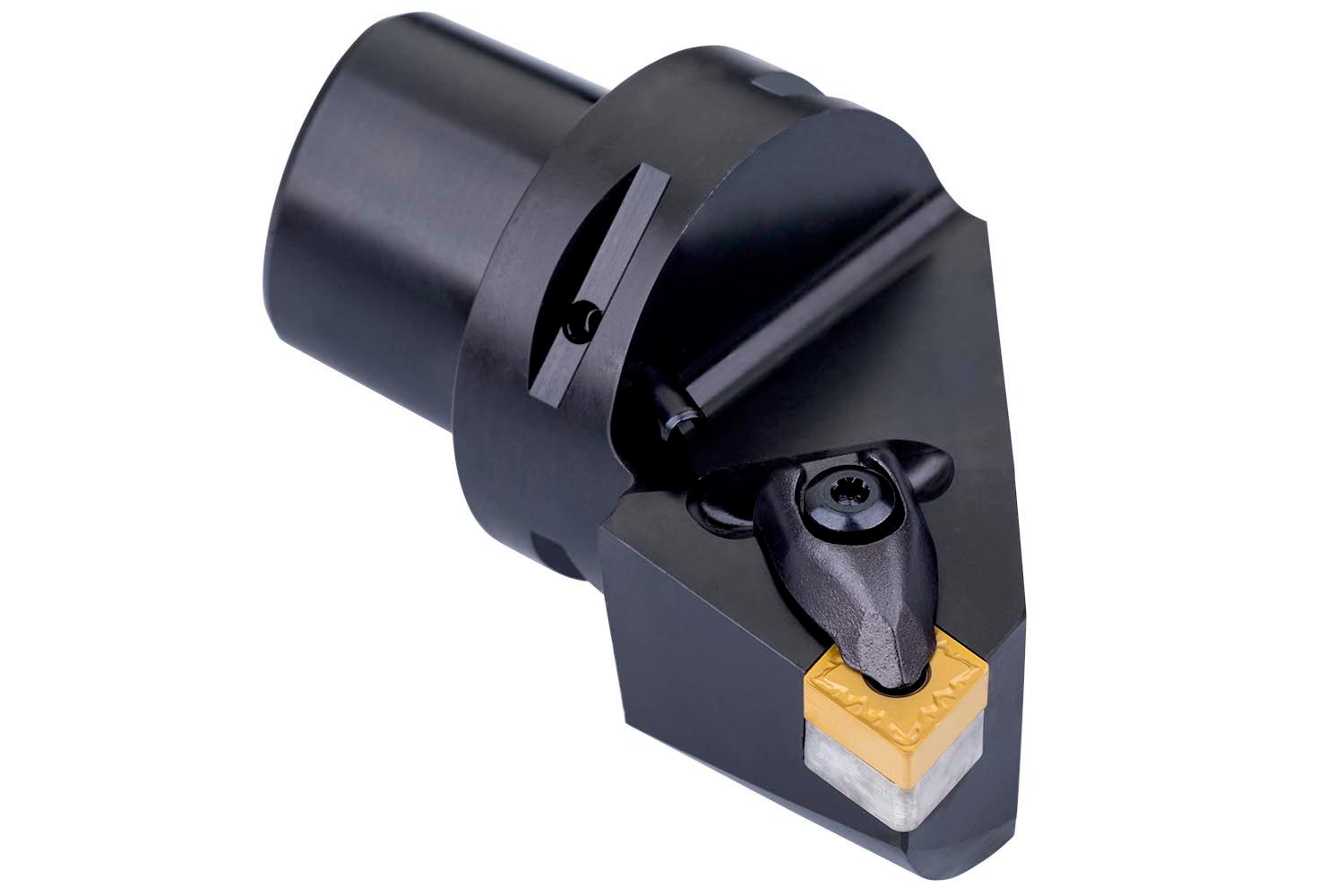

Double clamp turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation CN.. 1204.. ), left hand 95° side and end cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 27mm funtional width and 50mm protruding length for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder

Additional information

Weight 0.4081 kg
barcode
Additional Information

Description: Value
EAN number: 3603603682429
Product number (SAP): 86036279
Ordering code ANSI: C4-DCLNL-27050-12
Gross weight – grams: 437
Connection diameter – millimeter (DCON MS): 40 mm
Minimum bore diameter – millimeter (DMIN): 110 mm
Minimum bore diameter Perpendicular – millimeter (DMINP): 140 mm
Functional width – millimeter (WF): 27 mm
Functional length – millimeter (LF): 50 mm
Tool cutting edge angle (KAPR): 95
Inclination angle (LAMS): -6
Orthogonal rake angle (GAMO): -6
Net weight – grams: 437
Insert size: 12
ISO: C4-DCLNL-27050-12

Brand

PRAMET
