PRAMET C4-DCLNL-27055-16 Turning C holders Int & Ext

Description

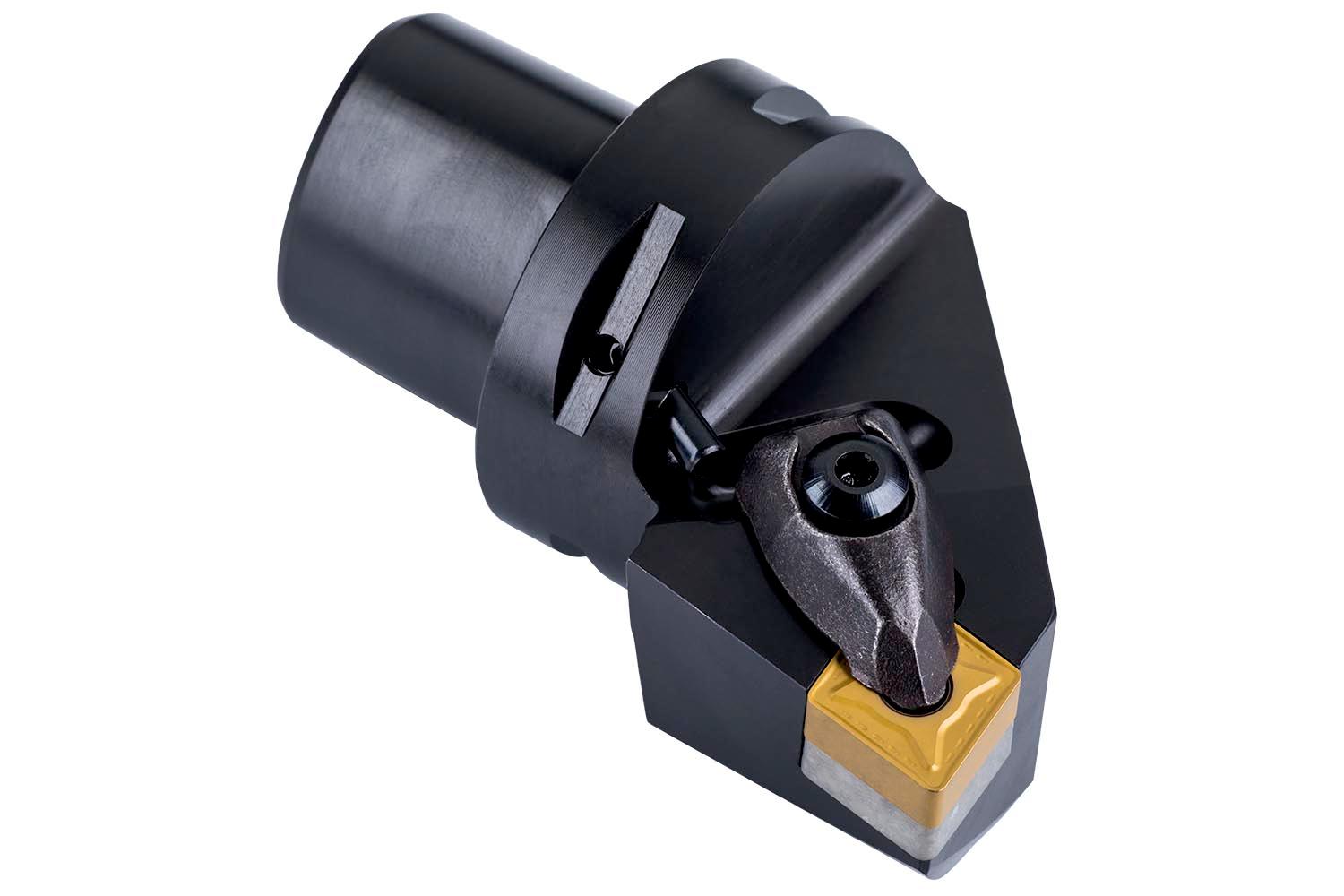

Double clamp turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 15.575mm, 6.35mm thick (ISO designation CN.. 1606.. ), left hand 95° side and end cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 27mm funtional width and 55mm protruding length for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder

Additional information

Weight	0.4081 kg
barcode
Additional Information	Description: Value EAN number: 3603603682481 Product number (SAP): 86036285 Ordering code ANSI: C4-DCLNL-27055-16 Gross weight – grams: 474.8 Connection diameter – millimeter (DCON MS): 40 mm Minimum bore diameter – millimeter (DMIN): 125 mm Minimum bore diameter Perpendicular – millimeter (DMINP): 145 mm Functional width – millimeter (WF): 27 mm Functional length – millimeter (LF): 55 mm Tool cutting edge angle (KAPR): 95 Inclination angle (LAMS): -6 Orthogonal rake angle (GAMO): -6 Net weight – grams: 474 Insert size: 16 ISO: C4-DCLNL-27055-16

Need Technical Advice?

Description

Additional information

Brand

PRAMET
