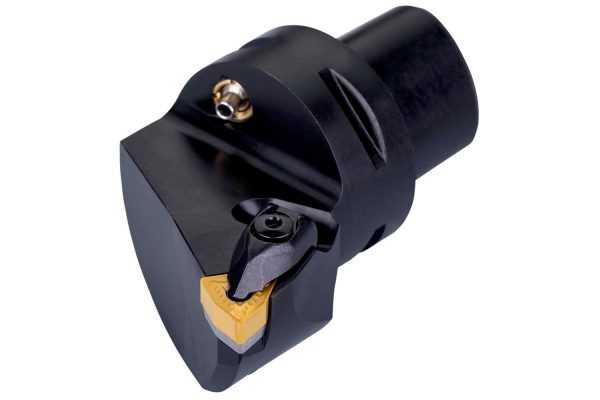

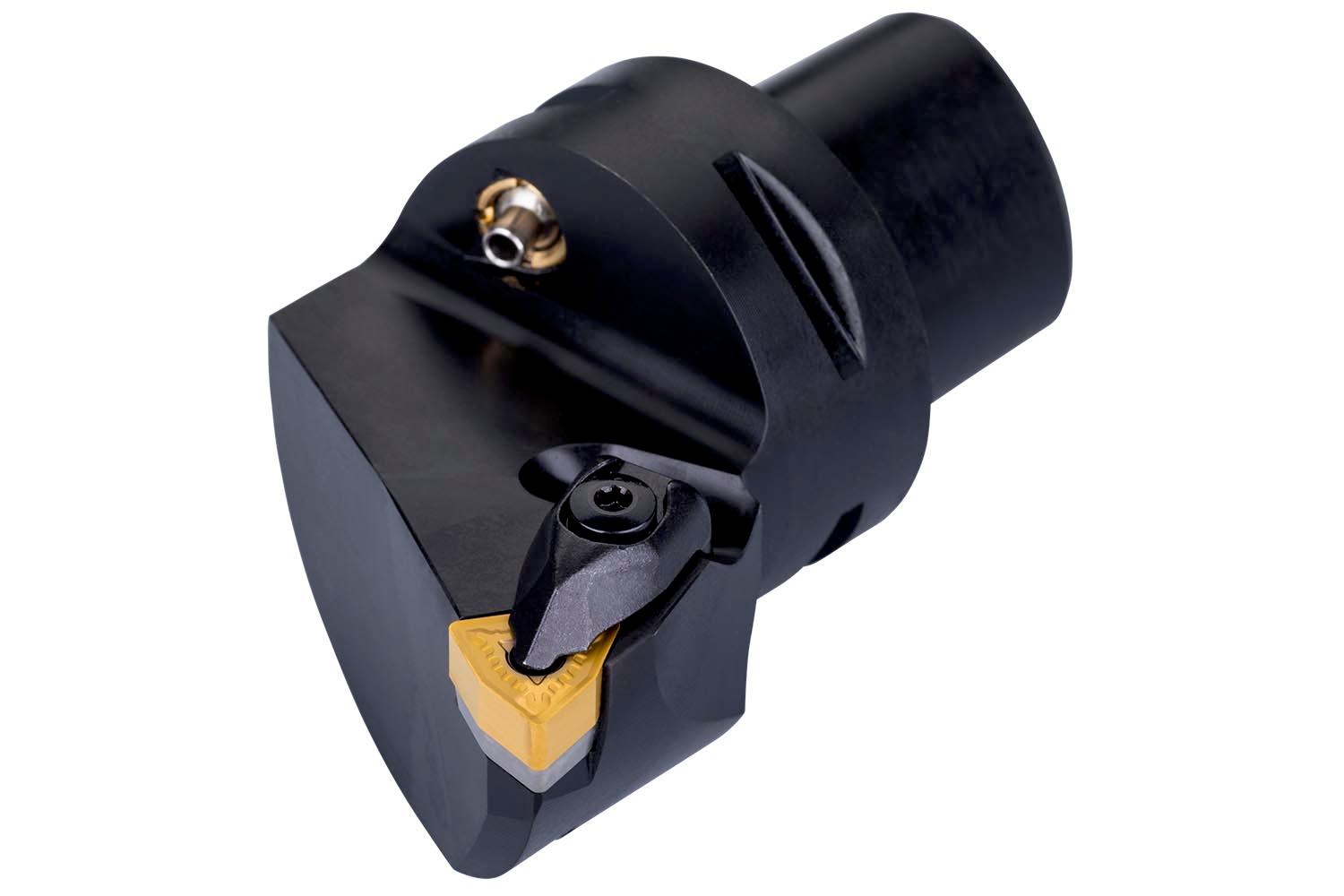

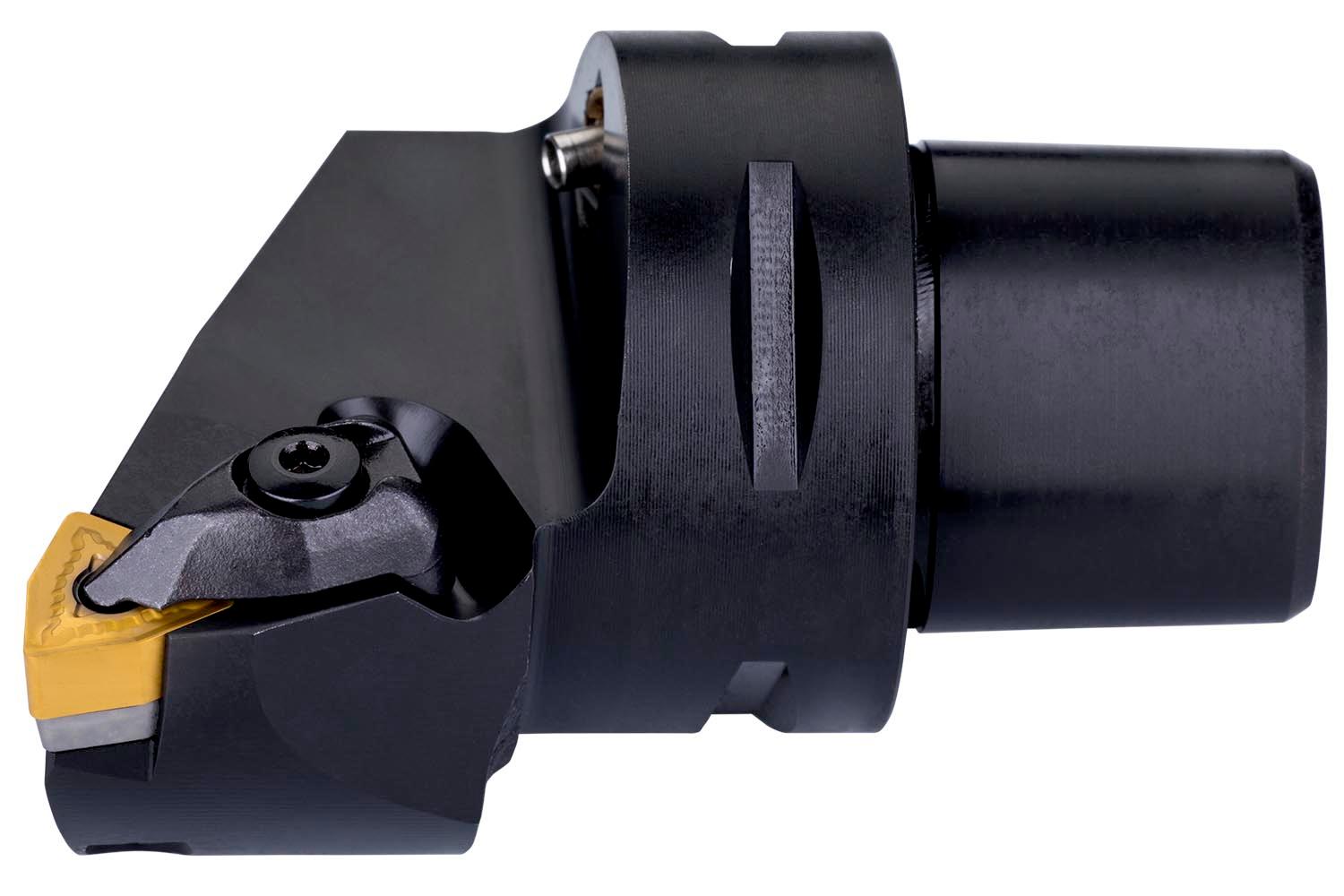

PRAMET C4-DWLNR-27050-06 Turning C holders Int & Ext

Description

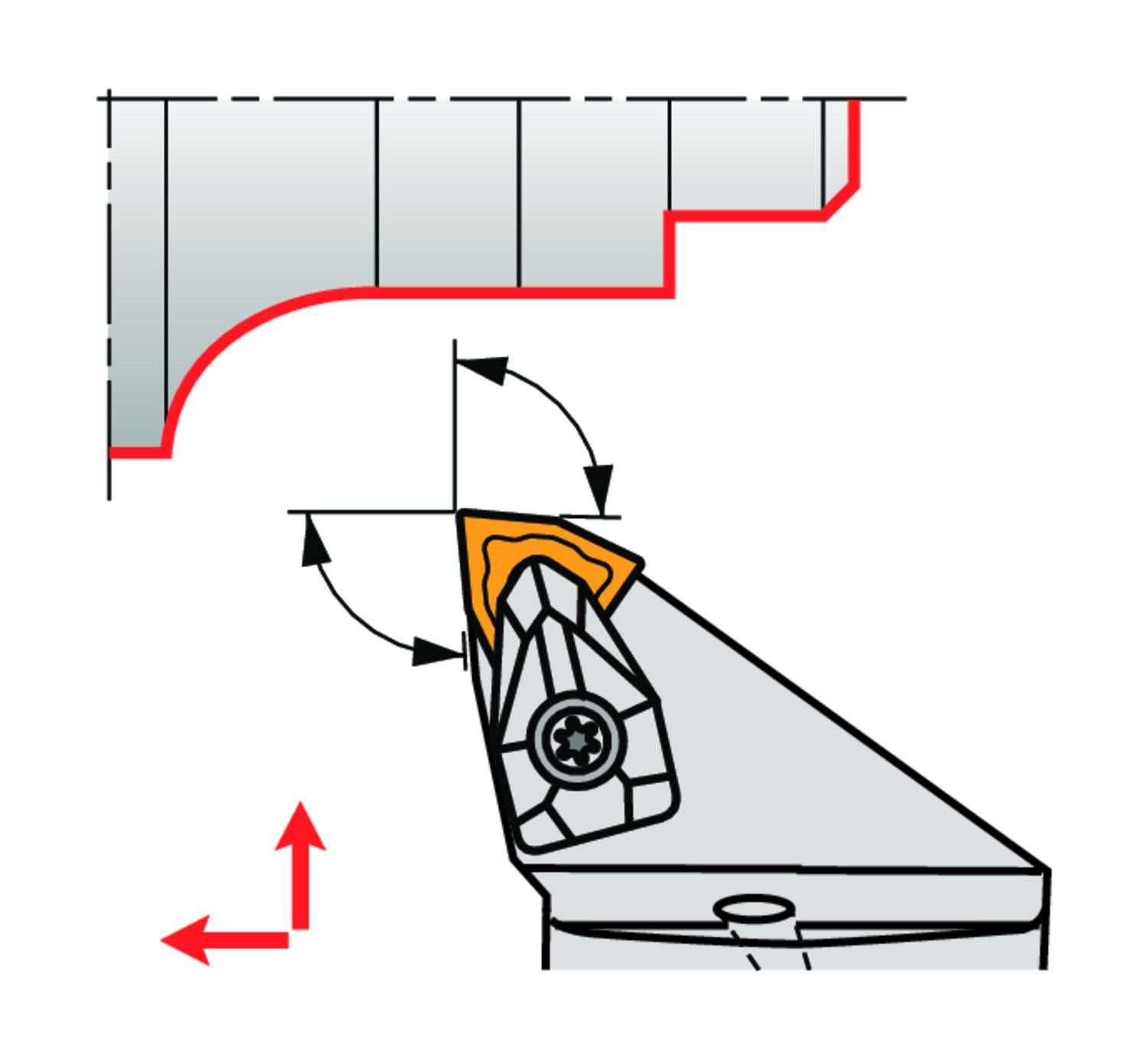

Double clamp turning tool for holding a 80° trigon negative insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation WN.. 0604.. ), right hand 95° side and end cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 27mm funtional width and 50mm protruding length for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder

Additional information

Weight	0.4240 kg
barcode

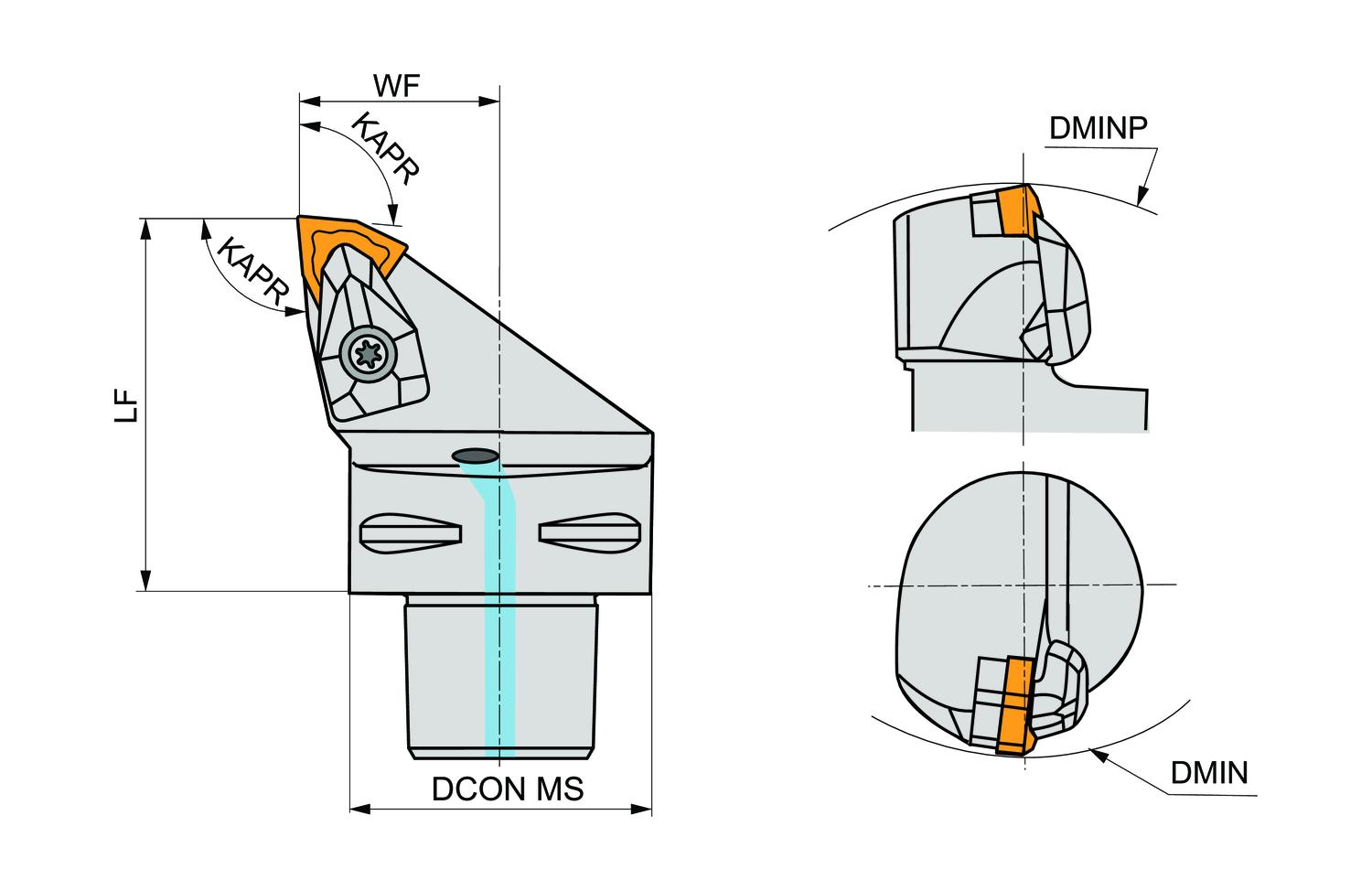

Additional Information	Description: Value EAN number: 3603603682986 Product number (SAP): 86036335 Ordering code ANSI: C4-DWLNR-27050-06 Gross weight – grams: 424 Connection diameter – millimeter (DCON MS): 40 mm Minimum bore diameter – millimeter (DMIN): 60 mm Minimum bore diameter Perpendicular – millimeter (DMINP): 140 mm Functional width – millimeter (WF): 27 mm Functional length – millimeter (LF): 50 mm Tool cutting edge angle (KAPR): 95 Inclination angle (LAMS): -6 Orthogonal rake angle (GAMO): -6 Net weight – grams: 424 Insert size: 06 ISO: C4-DWLNR-27050-06
