Description: Value

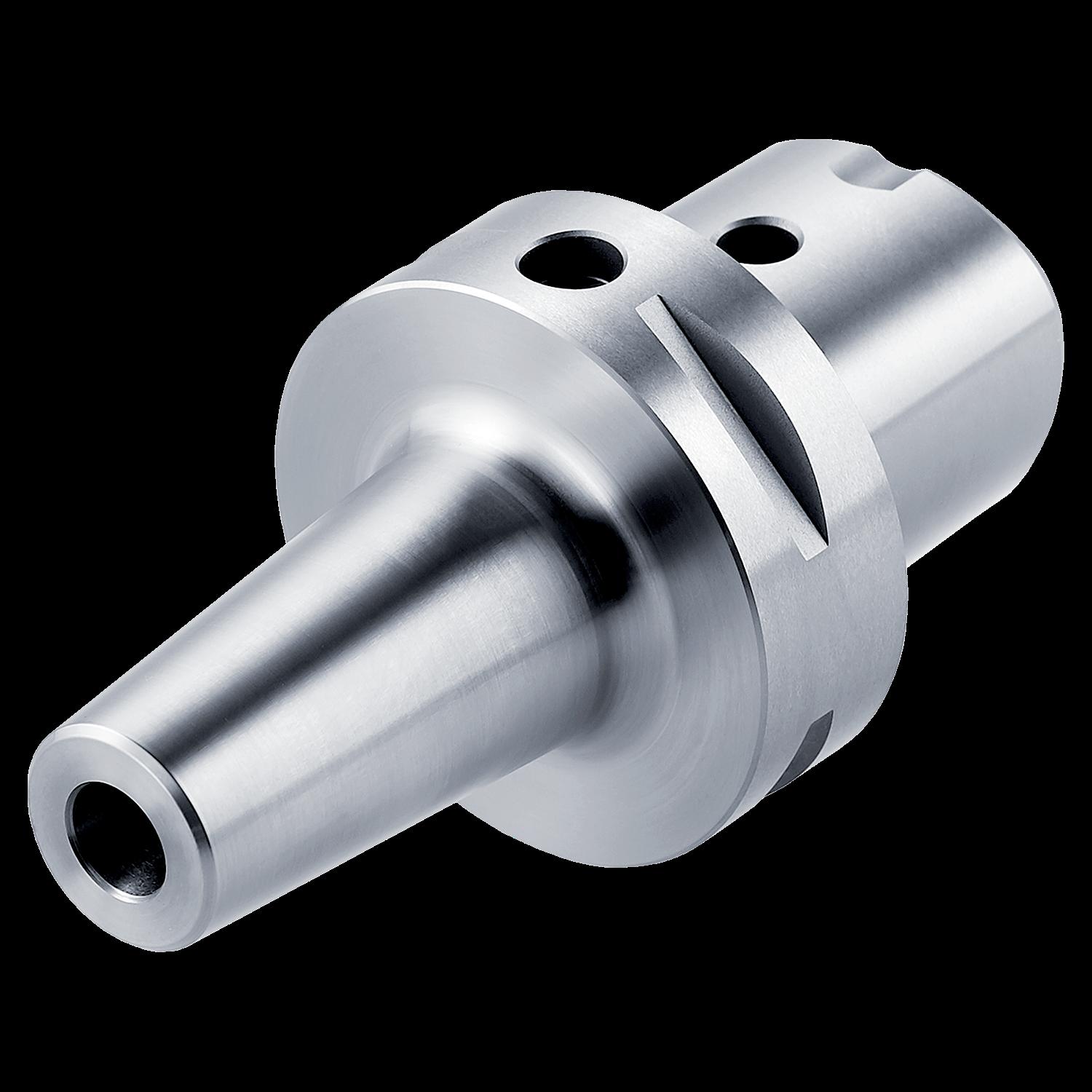

Brand Name: Dormer Pramet
EAN number: 3603604028073
Product number (SAP): 86041977
Size: C4
ISO: C4-SC.18.080
Ordering code ANSI: C4-SC.18.080
Net weight – grams: 600
Gross weight – grams: 600
Body diameter – millimeter (BD): 33 mm
Body diameter 2 – millimeters (BD2): 42 mm
Body half taper angle (BHTA): 4.5
Connection diameter workpiece side – millimeter (DCON WS): 18 mm
Connection text machine side (CTMS): C4
Overall height – millimeter (OAH): 30 mm
Overall width – millimeters (OAW): 150 mm
Protruding length – millimeter (LPR): 80 mm
|
