PRAMET C4-SDUCL-13080-11 Turning C holders Int & Ext

Product Code: C4-SDUCL-13080-11-PRAMET

$586.89$533.54 Ex. GST

Product Code: C4-SDUCL-13080-11-PRAMET SKU C4-SDUCL-13080-11-PRAMET Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

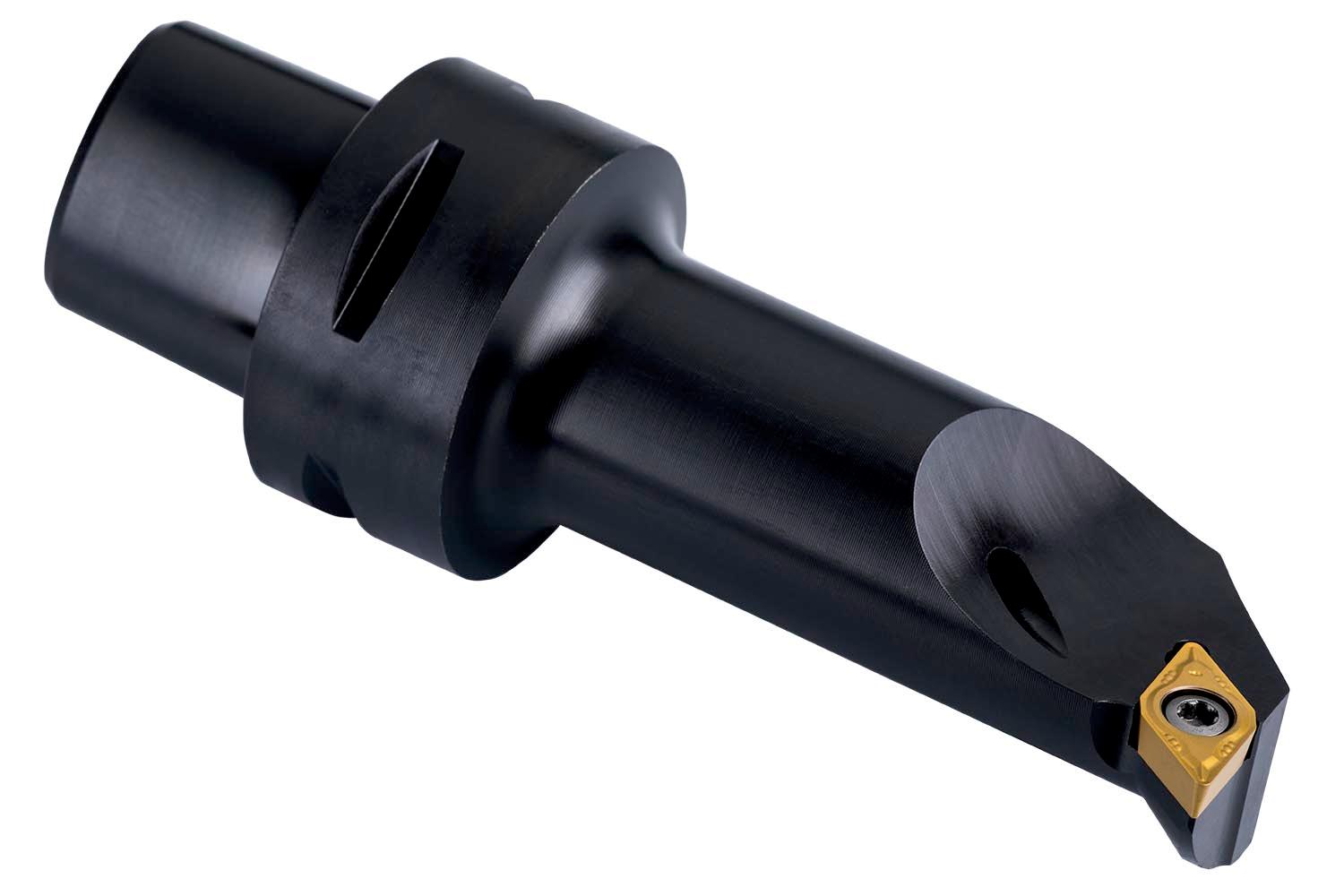

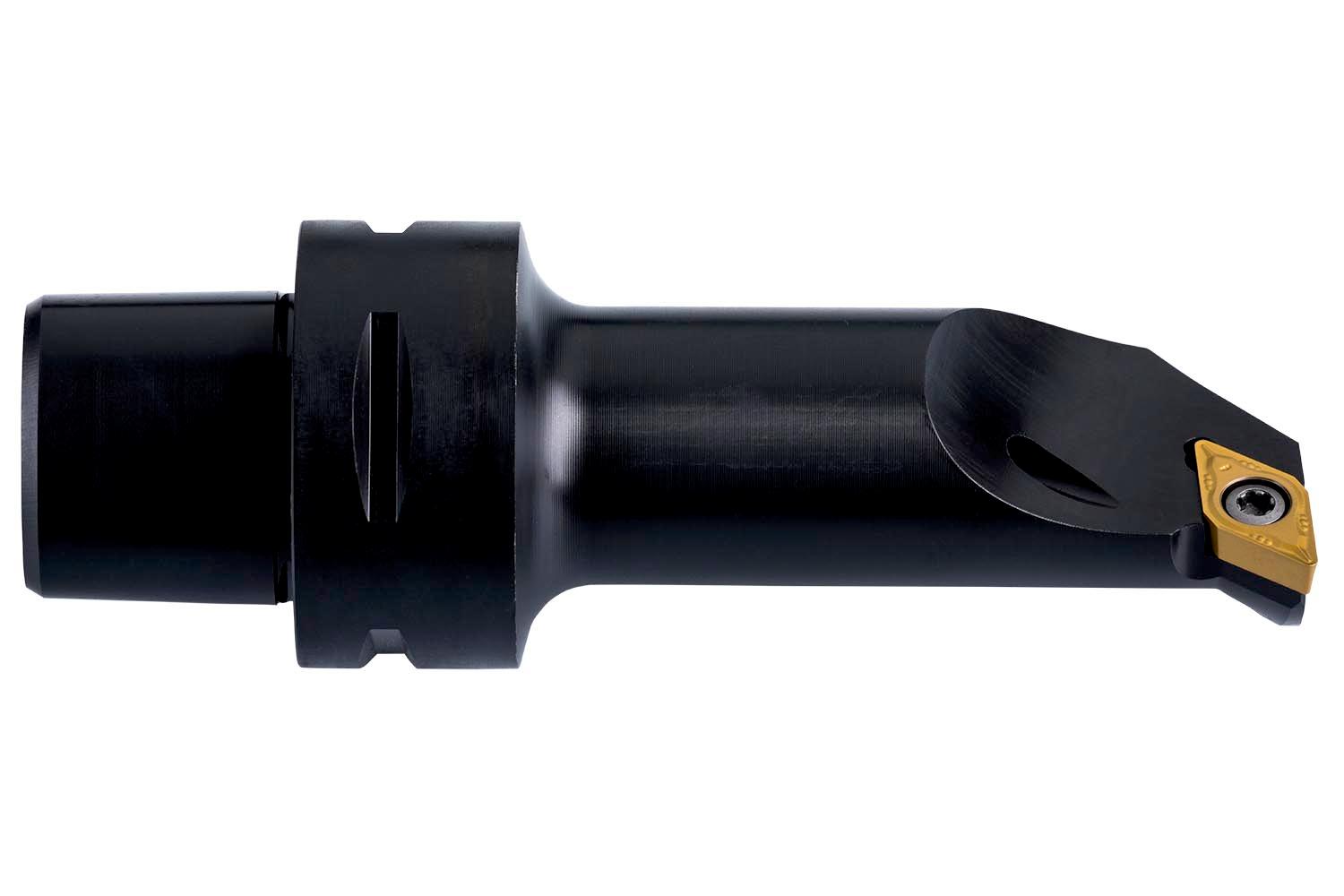

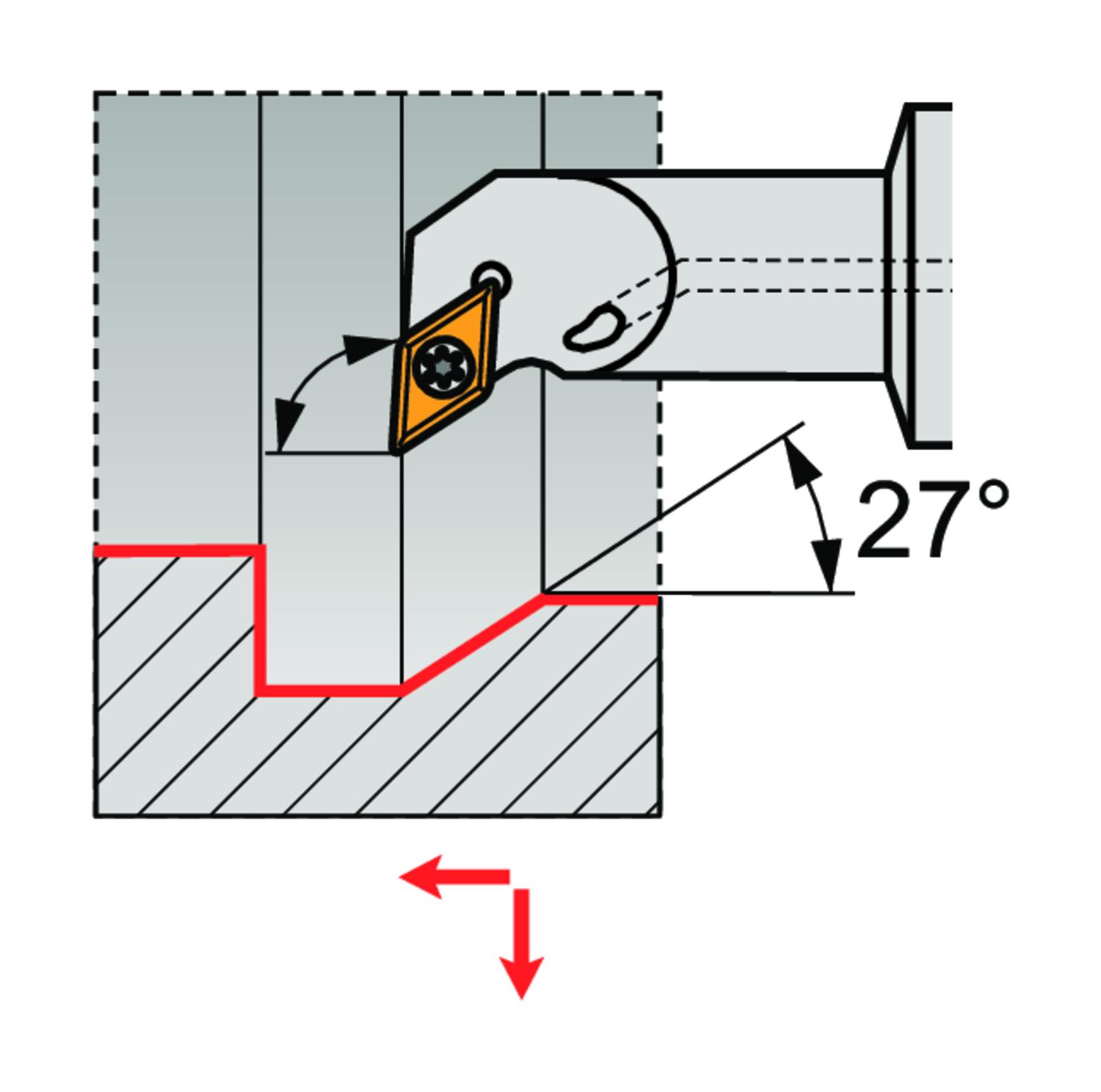

Screw clamp boring bar for holding a 55° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation DC.. 11T3.. ), left hand 93° end cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 13mm funtional width and 80mm protruding length for taper boring, single and multi-directional copy boring and longitudinal boring with and without shoulder

Additional information

Weight 0.4100 kg
barcode
Additional Information

Description: Value
EAN number: 3603603684683
Product number (SAP): 86036405
Ordering code ANSI: C4-SDUCL-13080-11
Gross weight – grams: 410

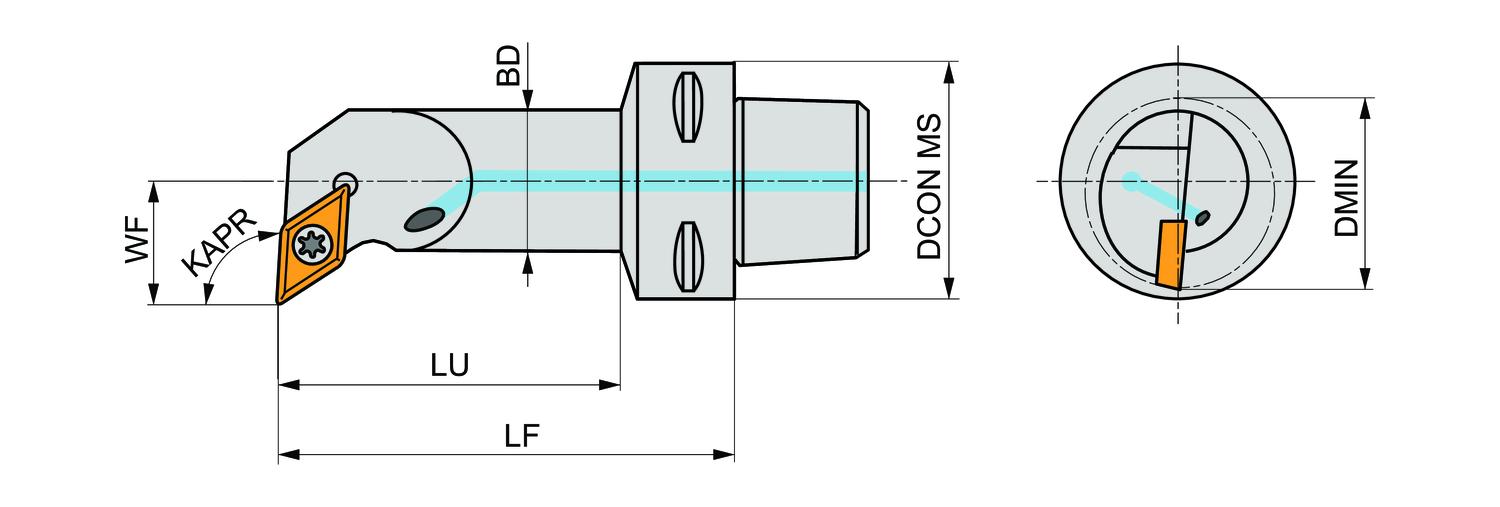

Connection diameter – millimeter (DCON MS): 40 mm
Minimum bore diameter – millimeter (DMIN): 25 mm
Functional width – millimeter (WF): 13 mm
Functional length – millimeter (LF): 80 mm
Usable Length – millimeter (LU): 57 mm
Body diameter – millimeter (BD): 20 mm
Tool cutting edge angle (KAPR): 93
Inclination angle (LAMS): -5.8
Orthogonal rake angle (GAMO): 0
Net weight – grams: 410
Insert size: 11
ISO: C4-SDUCL-13080-11
