PRAMET C5-SDNCN-00060-11 Turning C holders Int & Ext

Description

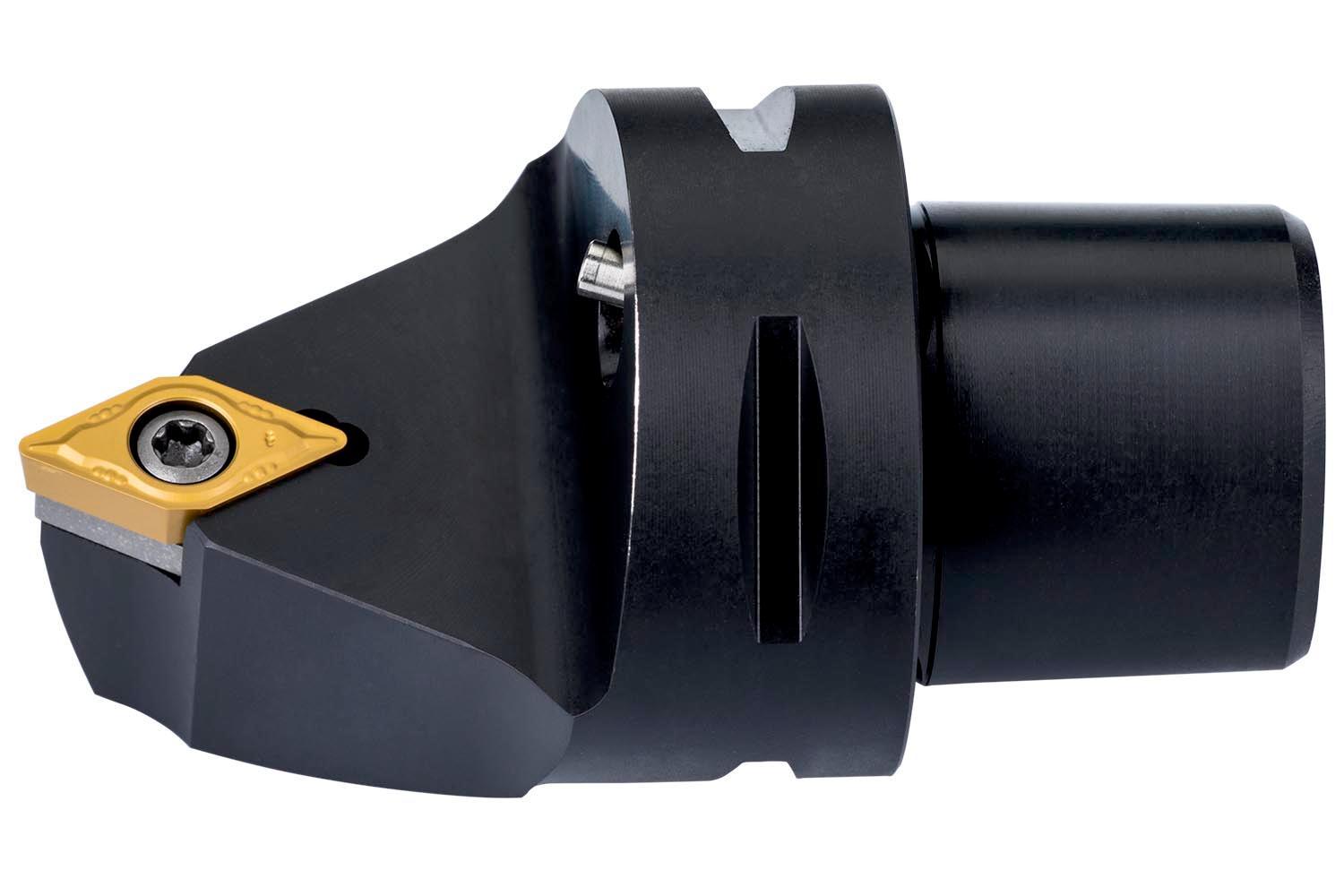

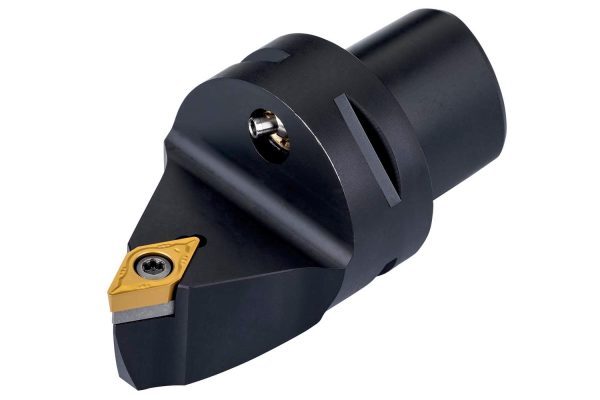

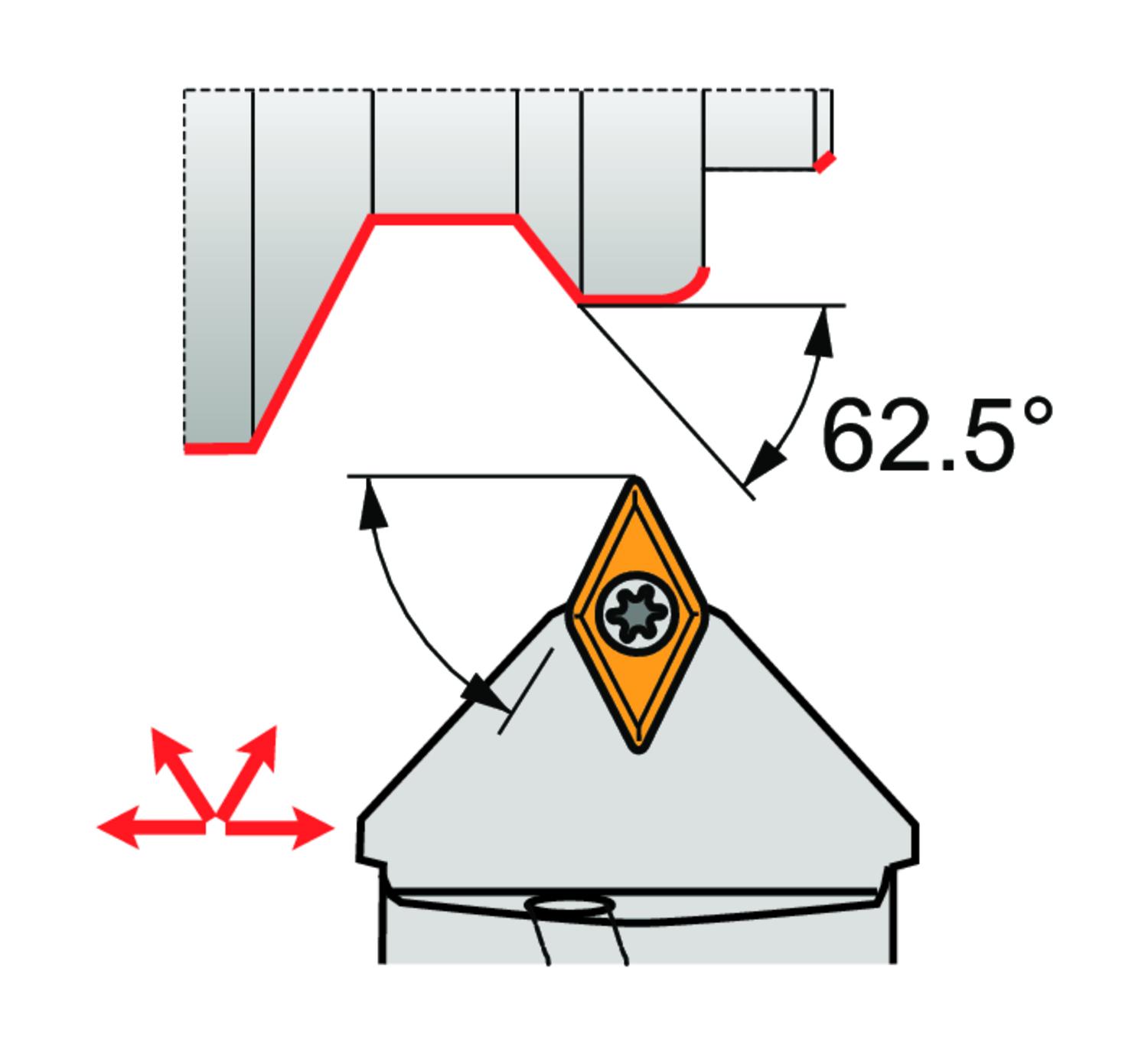

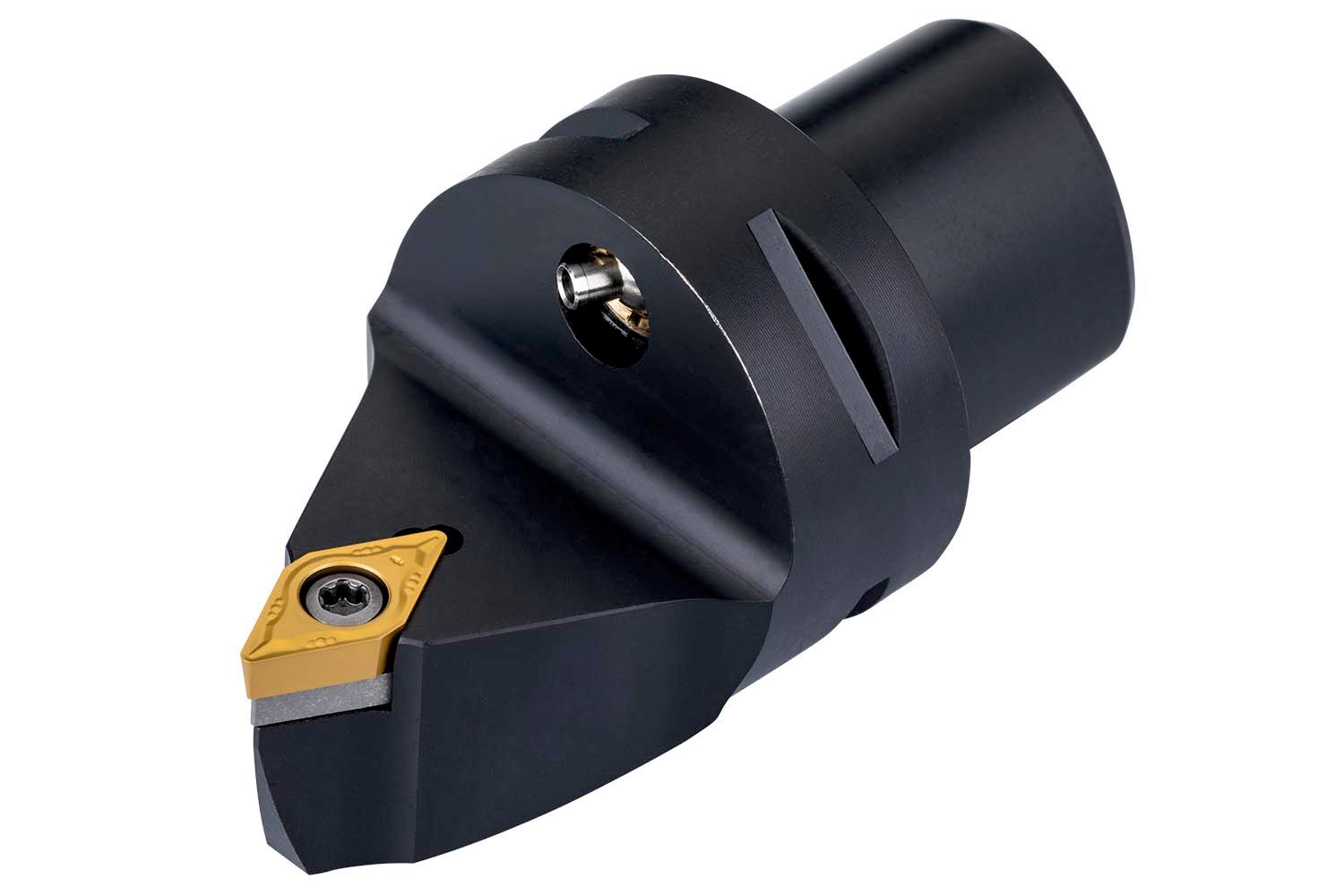

Screw clamp turning tool for holding a 55° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation DC.. 11T3.. ), neutral hand 62°30′ side cutting with straight shank according to ISO 26623 (Polygon Shank Coupling) size C5, with 60mm protruding length for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning without shoulder

Additional information

Weight	0.6185 kg
barcode

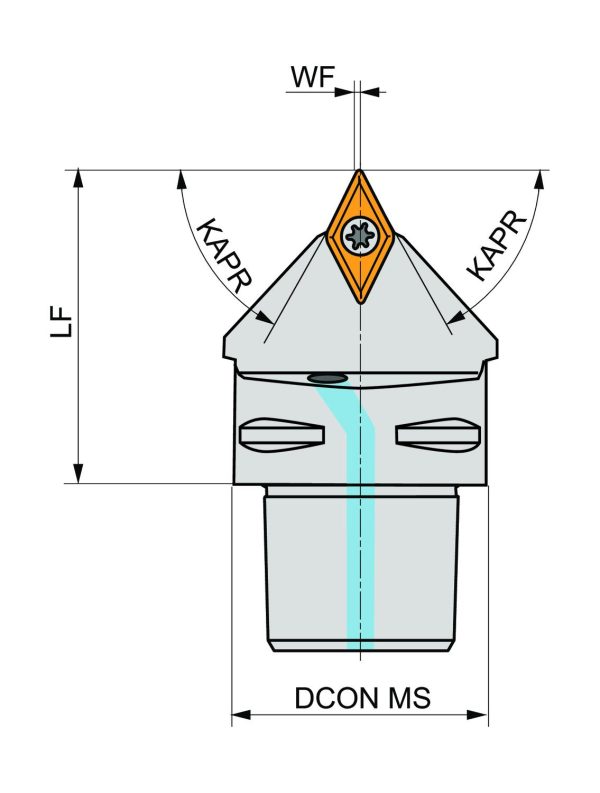

Additional Information	Description: Value EAN number: 3603603684195 Product number (SAP): 86036356 Ordering code ANSI: C5-SDNCN-00060-11 Gross weight – grams: 618.5 Connection diameter – millimeter (DCON MS): 50 mm Functional width – millimeter (WF): 0.5 mm Functional length – millimeter (LF): 60 mm Tool cutting edge angle (KAPR): 62.5 Inclination angle (LAMS): 0 Orthogonal rake angle (GAMO): 0 Net weight – grams: 618.5 Insert size: 11 ISO: C5-SDNCN-00060-11

Need Technical Advice?

Description

Additional information

Brand

PRAMET
