PRAMET C5-SRDCN-00060-12A Turning C holders Int & Ext

Description

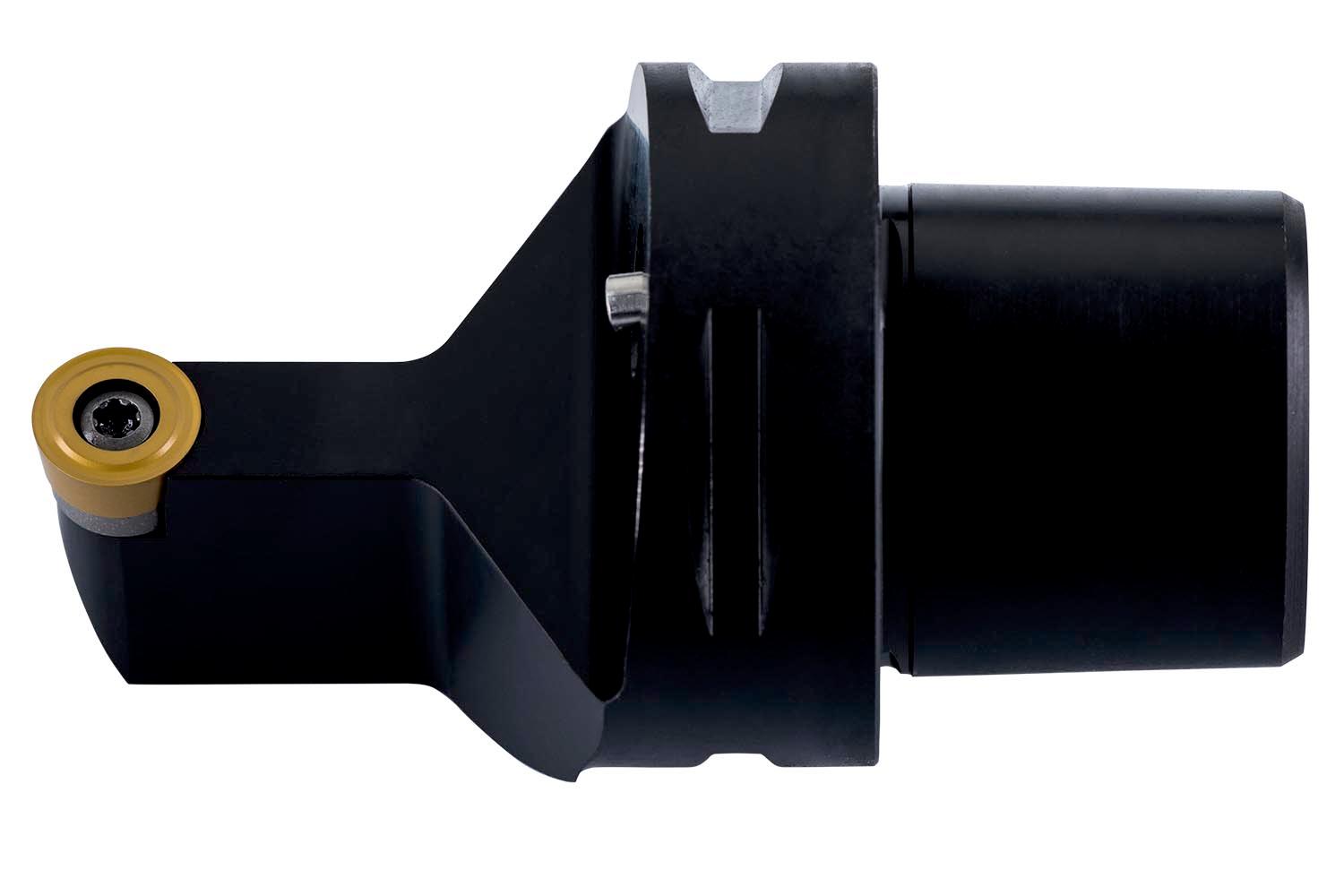

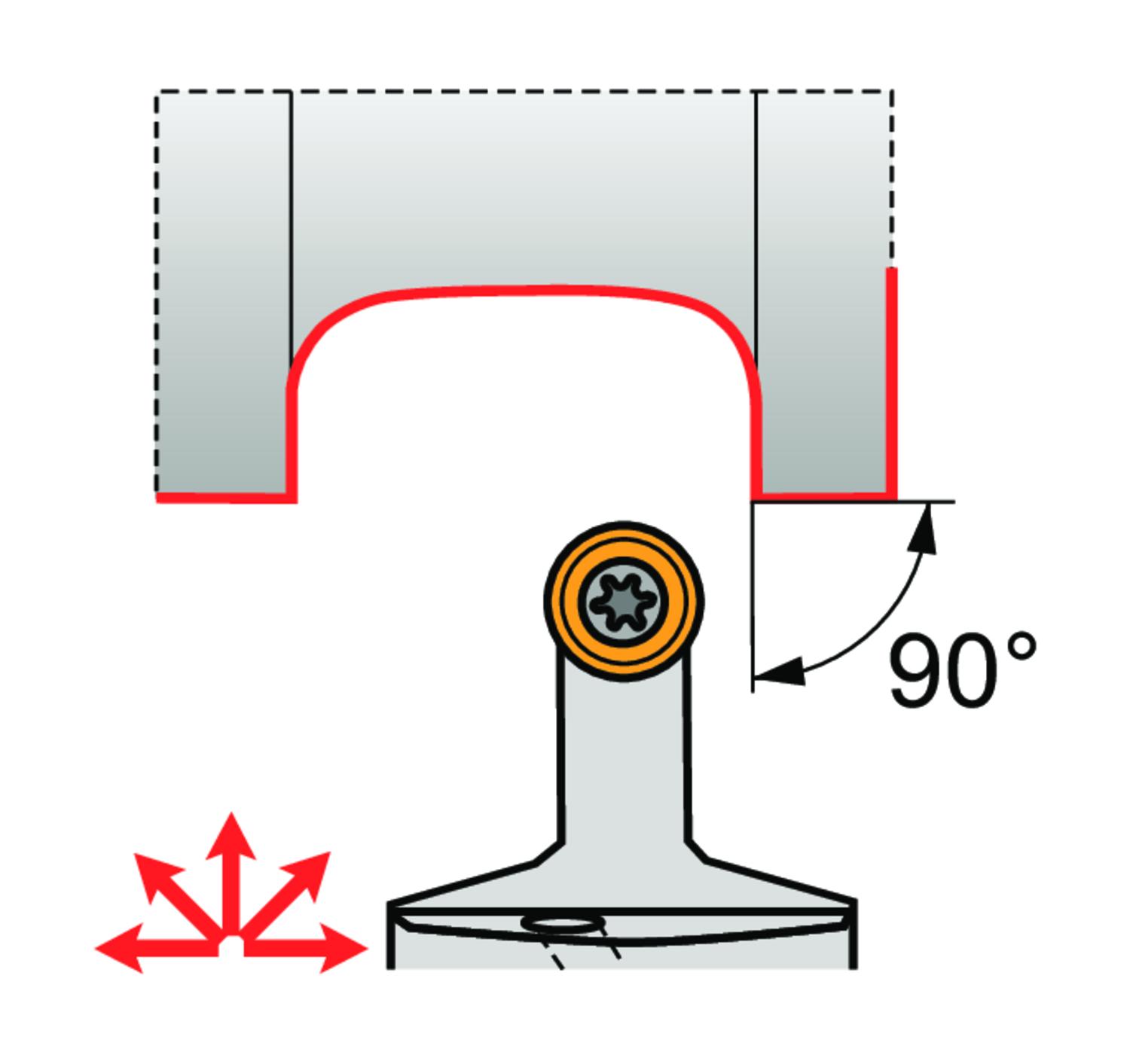

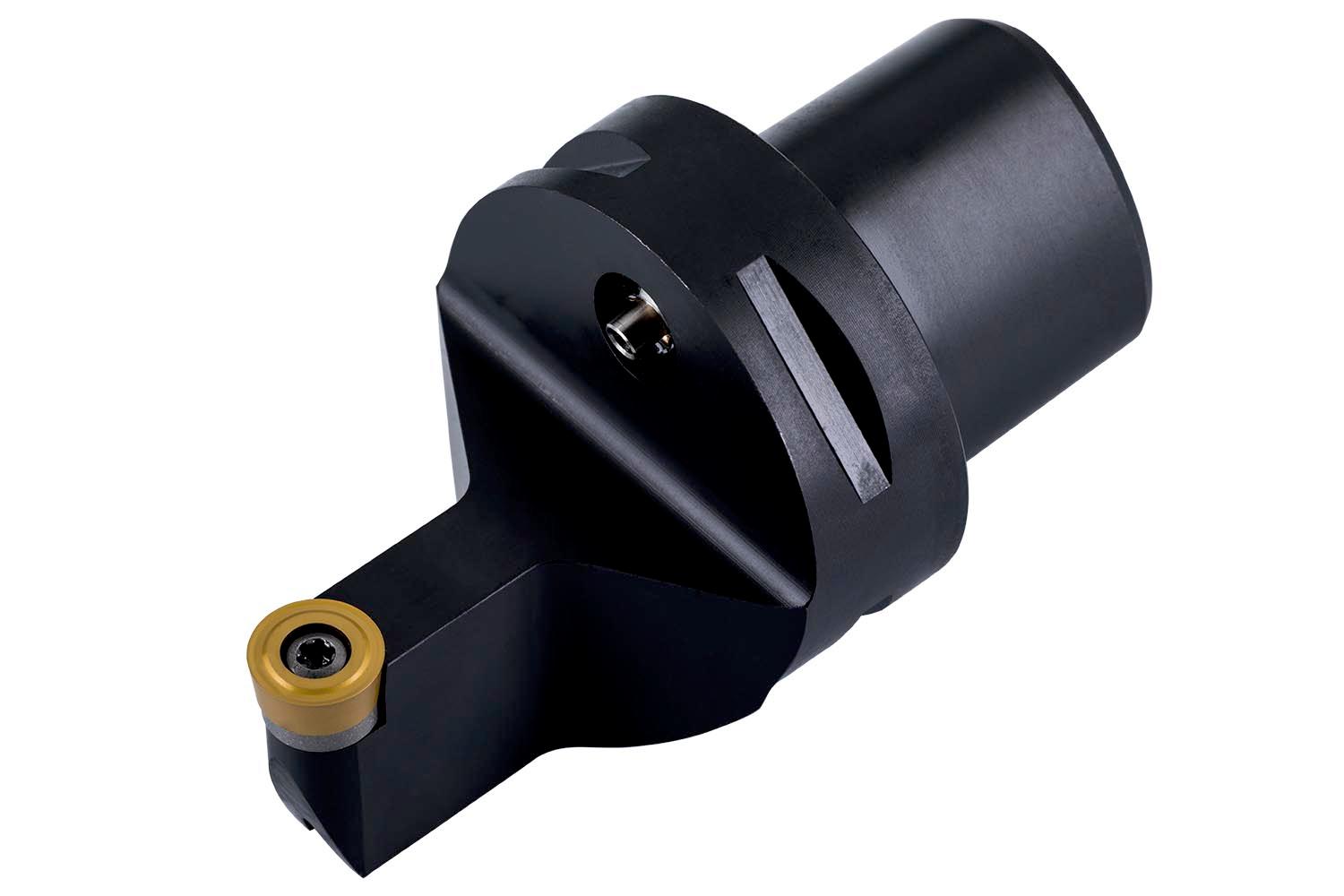

Screw clamp turning tool for holding a round positive insert with a diameter of 12mm, 4.76mm thick (ISO designation RC.. 1204MO ), neutral hand side and end cutting with straight shank according to ISO 26623 (Polygon Shank Coupling) size C5, with 60mm protruding length for taper turning, single and multi-directional copy turning and longitudinal turning without shoulder

Additional information

Weight	0.5620 kg
barcode

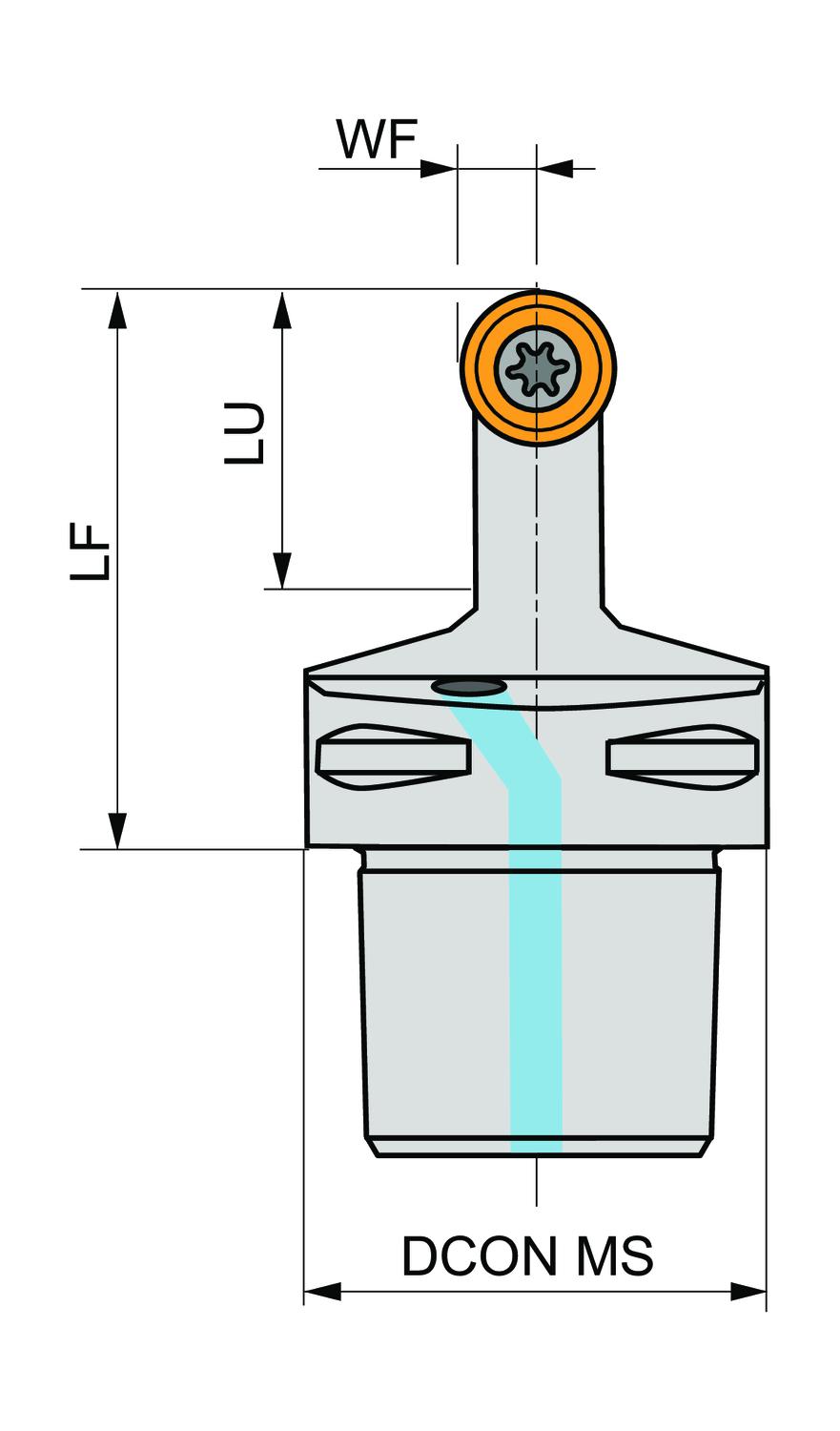

Additional Information	Description: Value EAN number: 3603603684225 Product number (SAP): 86036359 Ordering code ANSI: C5-SRDCN-00060-12A Gross weight – grams: 562 Connection diameter – millimeter (DCON MS): 50 mm Functional width – millimeter (WF): 6 mm Functional length – millimeter (LF): 60 mm Usable Length – millimeter (LU): 28 mm Inclination angle (LAMS): 0 Orthogonal rake angle (GAMO): 0 Net weight – grams: 562 Insert size: 12 ISO: C5-SRDCN-00060-12A

Need Technical Advice?

Description

Additional information

Brand

PRAMET
