PRAMET C6-DDJNR-45065-15 Turning C holders Int & Ext

Description

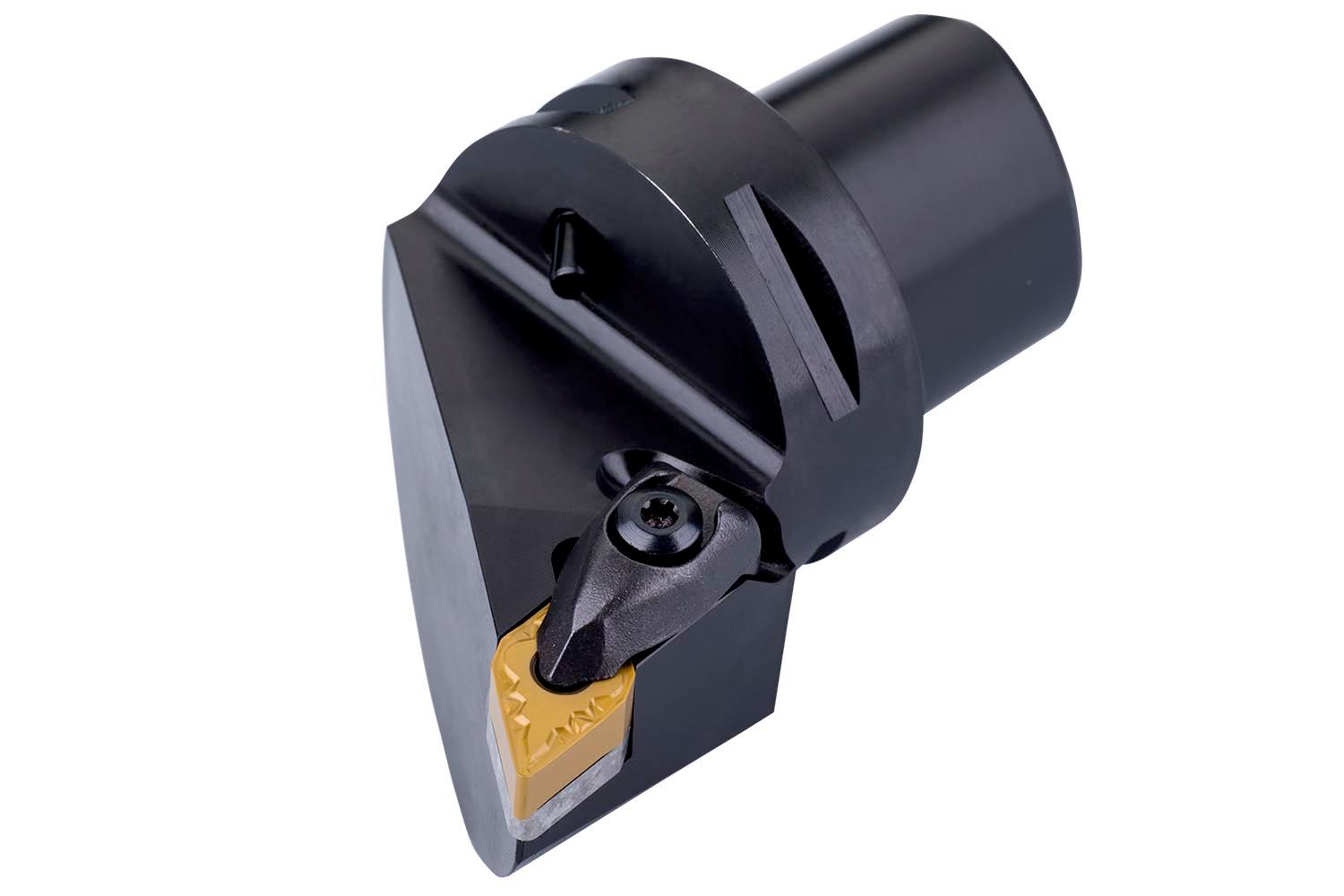

Double clamp turning tool for holding a 55° rhombus negative insert with an inscribed circle diameter of 12.7mm, 6.35mm thick (ISO designation DN.. 1506.. ), right hand 93° side cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C6, with 45mm funtional width and 65mm protruding length for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

Additional information

Weight	1.1760 kg
barcode
Additional Information	Description: Value EAN number: 3603603682665 Product number (SAP): 86036303 Ordering code ANSI: C6-DDJNR-45065-15 Gross weight – grams: 1185.2 Connection diameter – millimeter (DCON MS): 63 mm Minimum bore diameter – millimeter (DMIN): 110 mm Minimum bore diameter Perpendicular – millimeter (DMINP): 190 mm Functional width – millimeter (WF): 45 mm Functional length – millimeter (LF): 65 mm Tool cutting edge angle (KAPR): 93 Inclination angle (LAMS): -7 Orthogonal rake angle (GAMO): -6 Net weight – grams: 1176 Insert size: 15 ISO: C6-DDJNR-45065-15
