PRAMET C6-DDUNR-45065-15 Turning C holders Int & Ext

Description

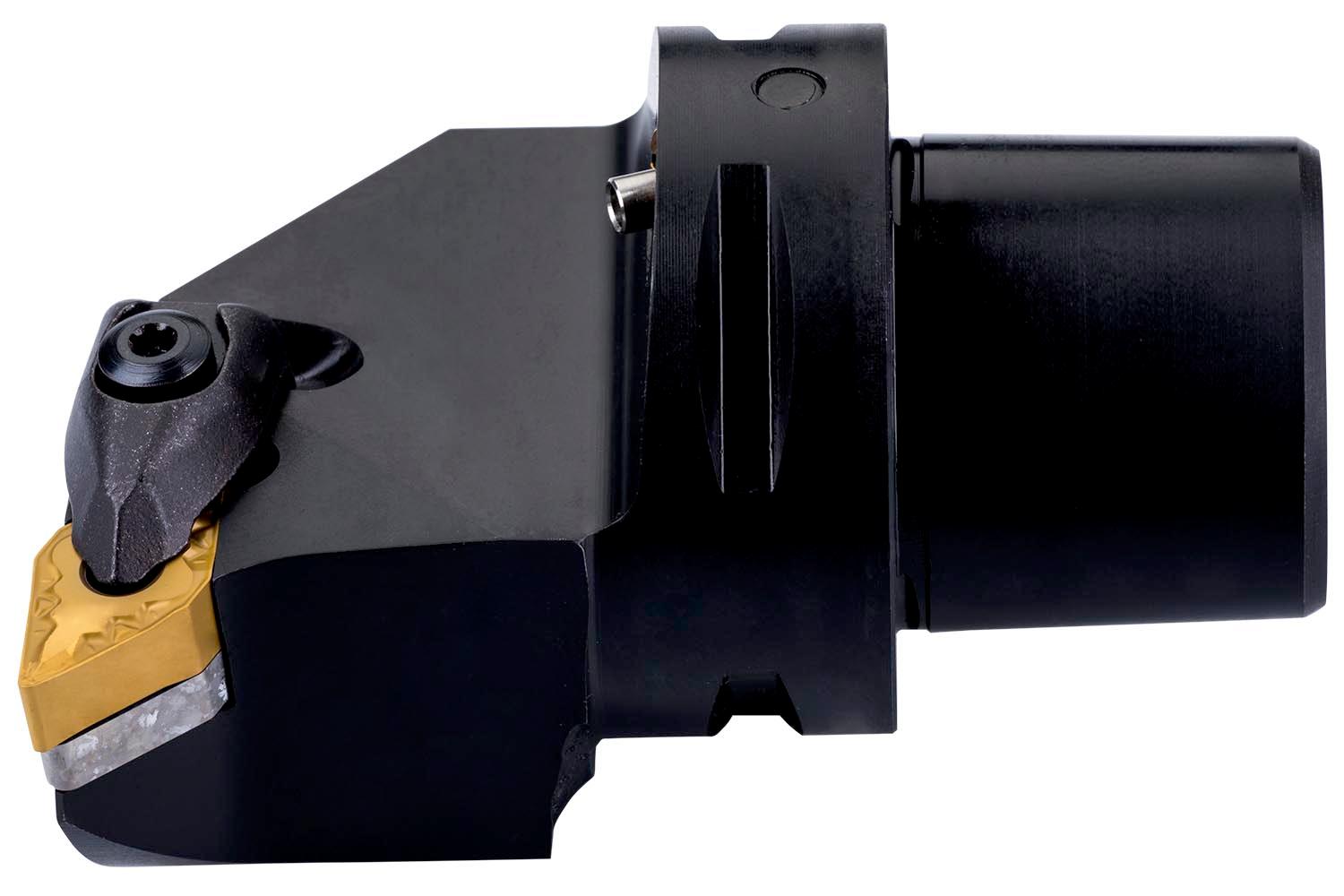

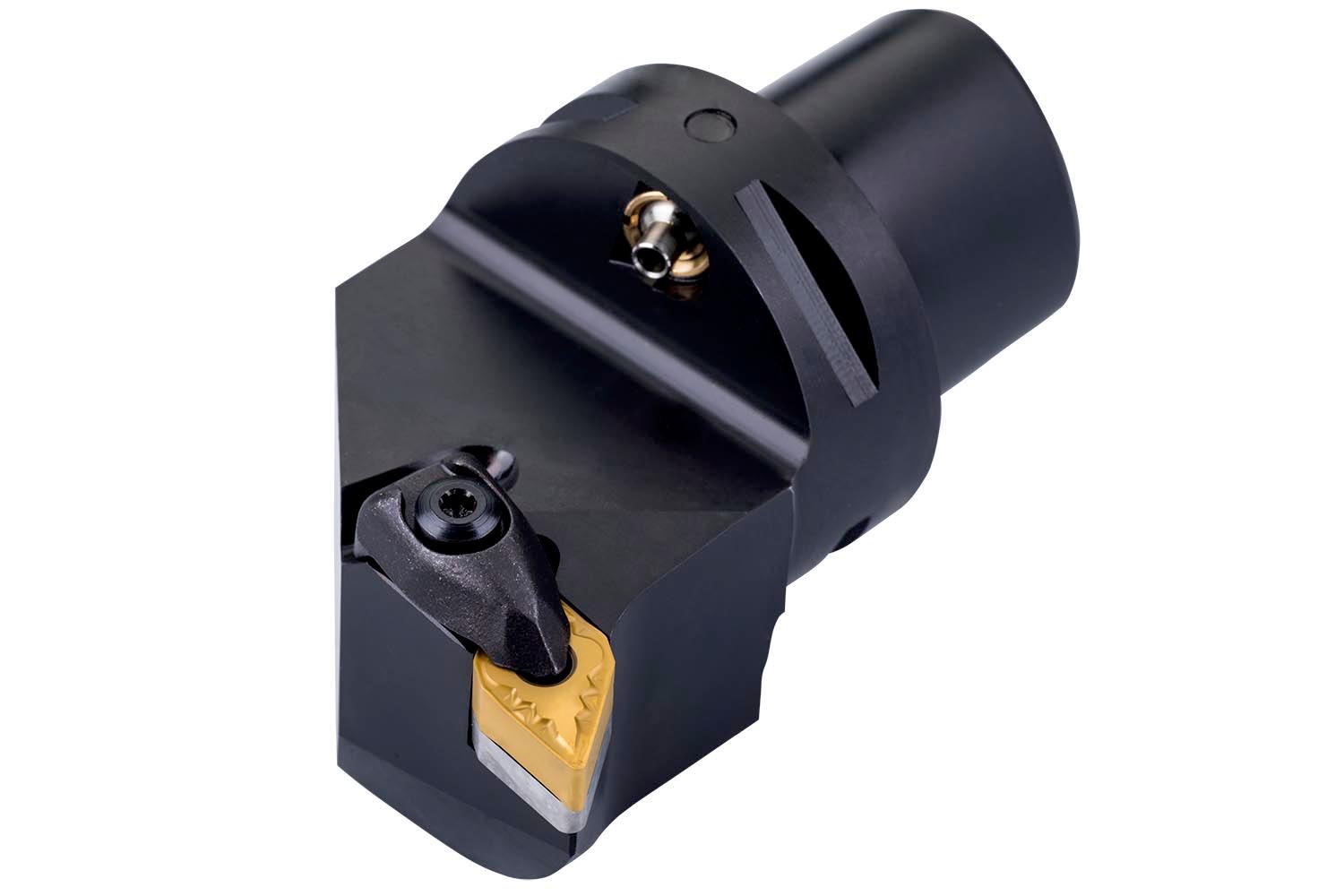

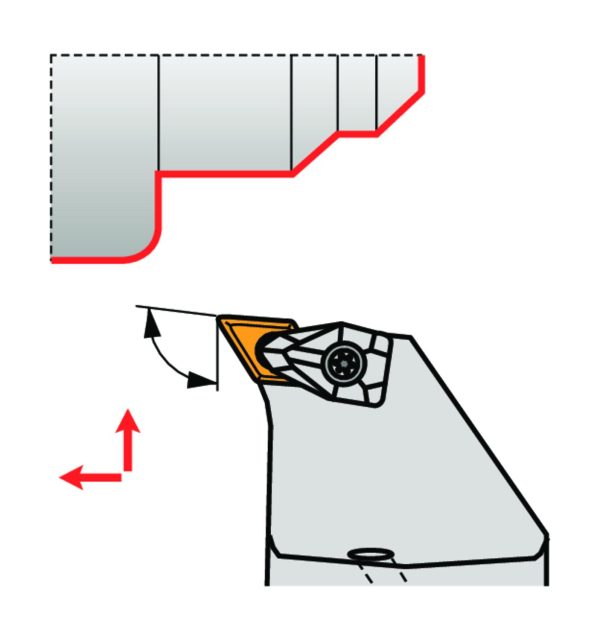

Double clamp turning tool for holding a 55° rhombus negative insert with an inscribed circle diameter of 12.7mm, 6.35mm thick (ISO designation DN.. 1506.. ), right hand 93° end cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C6, with 45mm funtional width and 65mm protruding length for face turning with and without shoulder

Additional information

Weight	1.3910 kg
barcode

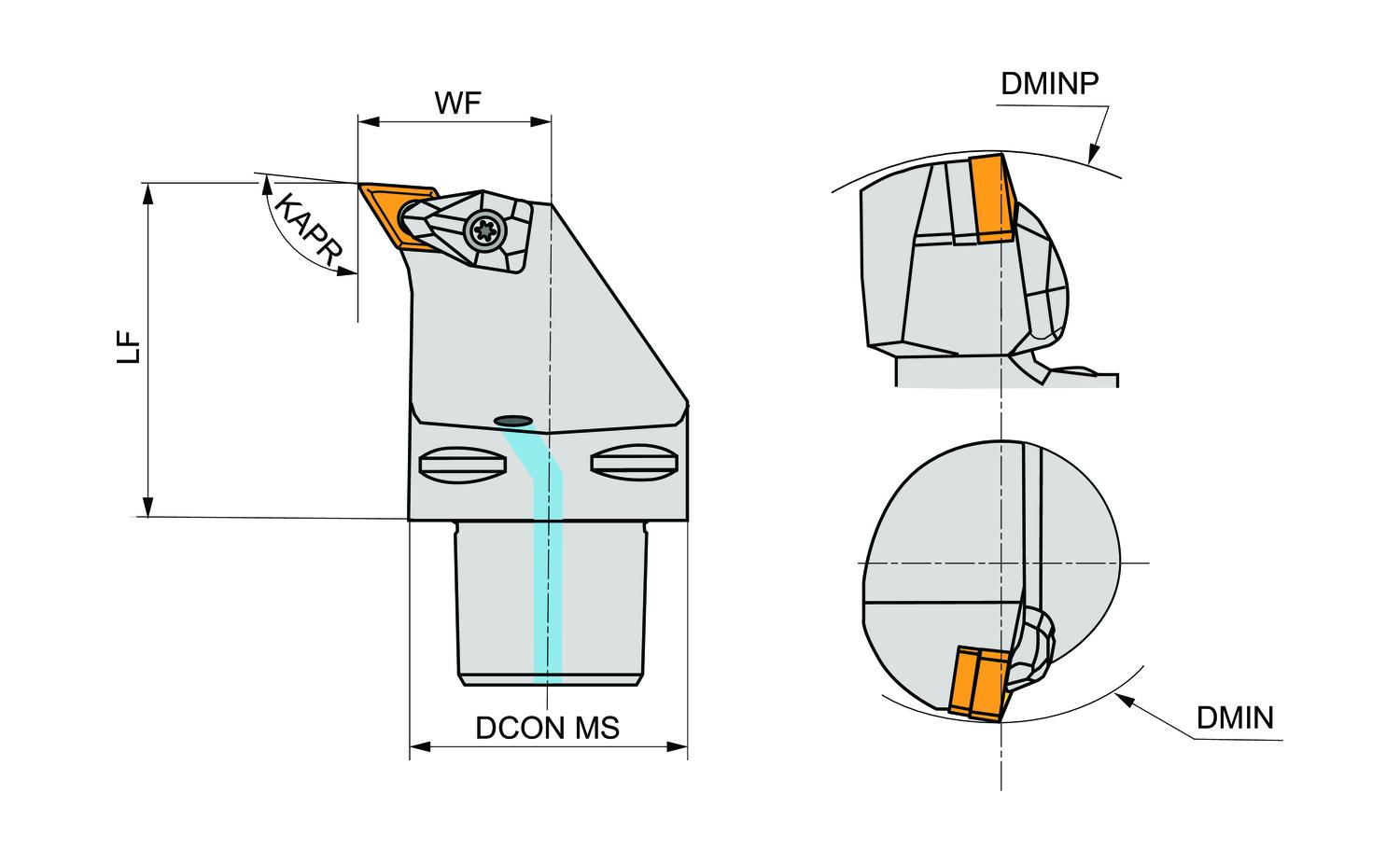

Additional Information	Description: Value EAN number: 3603603682696 Product number (SAP): 86036306 Ordering code ANSI: C6-DDUNR-45065-15 Gross weight – grams: 1398.1 Connection diameter – millimeter (DCON MS): 63 mm Minimum bore diameter – millimeter (DMIN): 110 mm Minimum bore diameter Perpendicular – millimeter (DMINP): 190 mm Functional width – millimeter (WF): 45 mm Functional length – millimeter (LF): 65 mm Tool cutting edge angle (KAPR): 93 Inclination angle (LAMS): -7 Orthogonal rake angle (GAMO): -6 Net weight – grams: 1391 Insert size: 15 ISO: C6-DDUNR-45065-15
