PRAMET C6-DSDNN-00070-19 Turning C holders Int & Ext

Product Code: C6-DSDNN-00070-19-PRAMET

$537.04$488.22 Ex. GST

Product Code: C6-DSDNN-00070-19-PRAMET SKU C6-DSDNN-00070-19-PRAMET Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

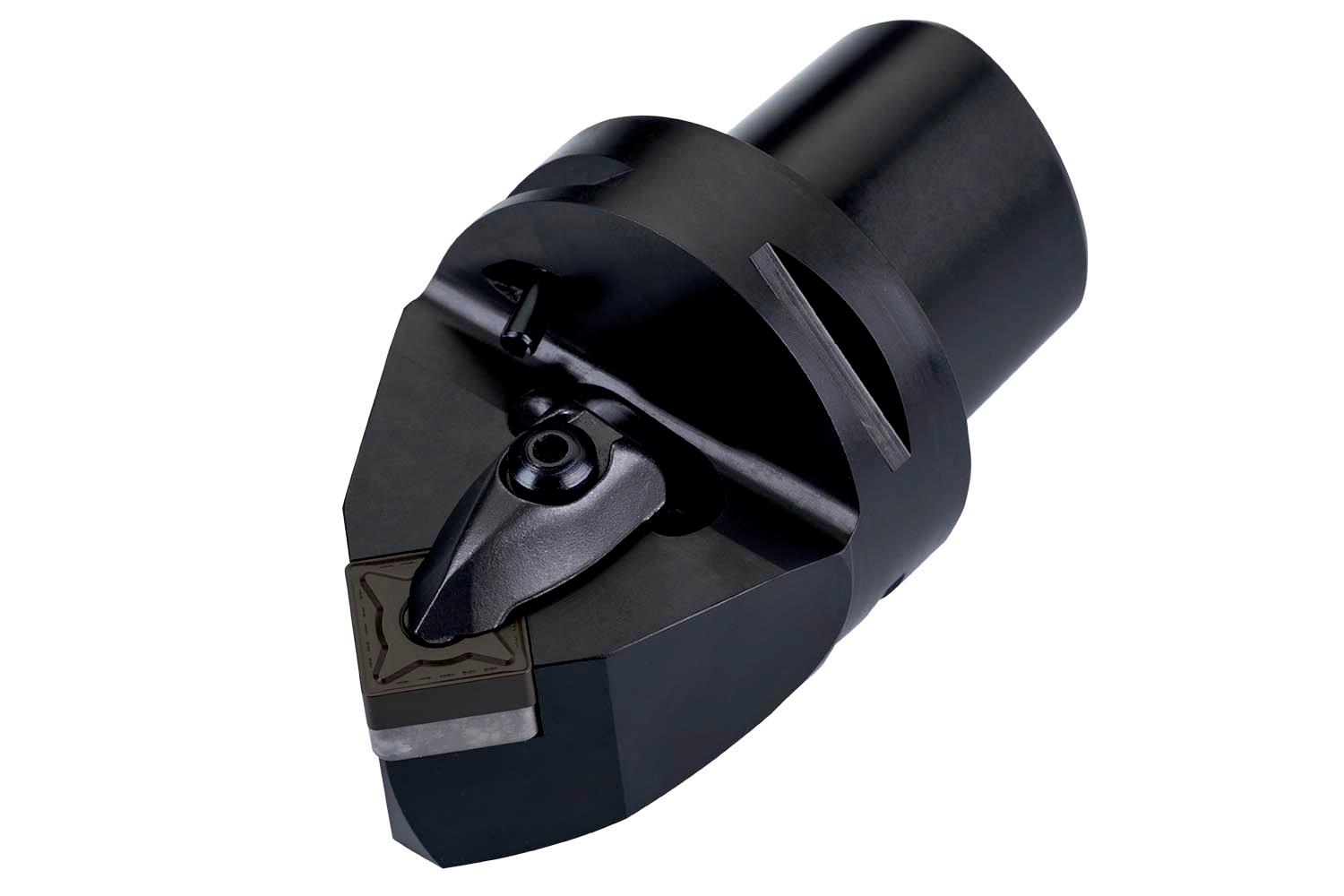

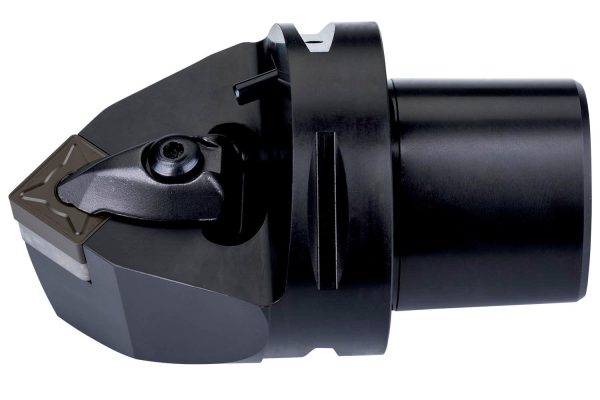

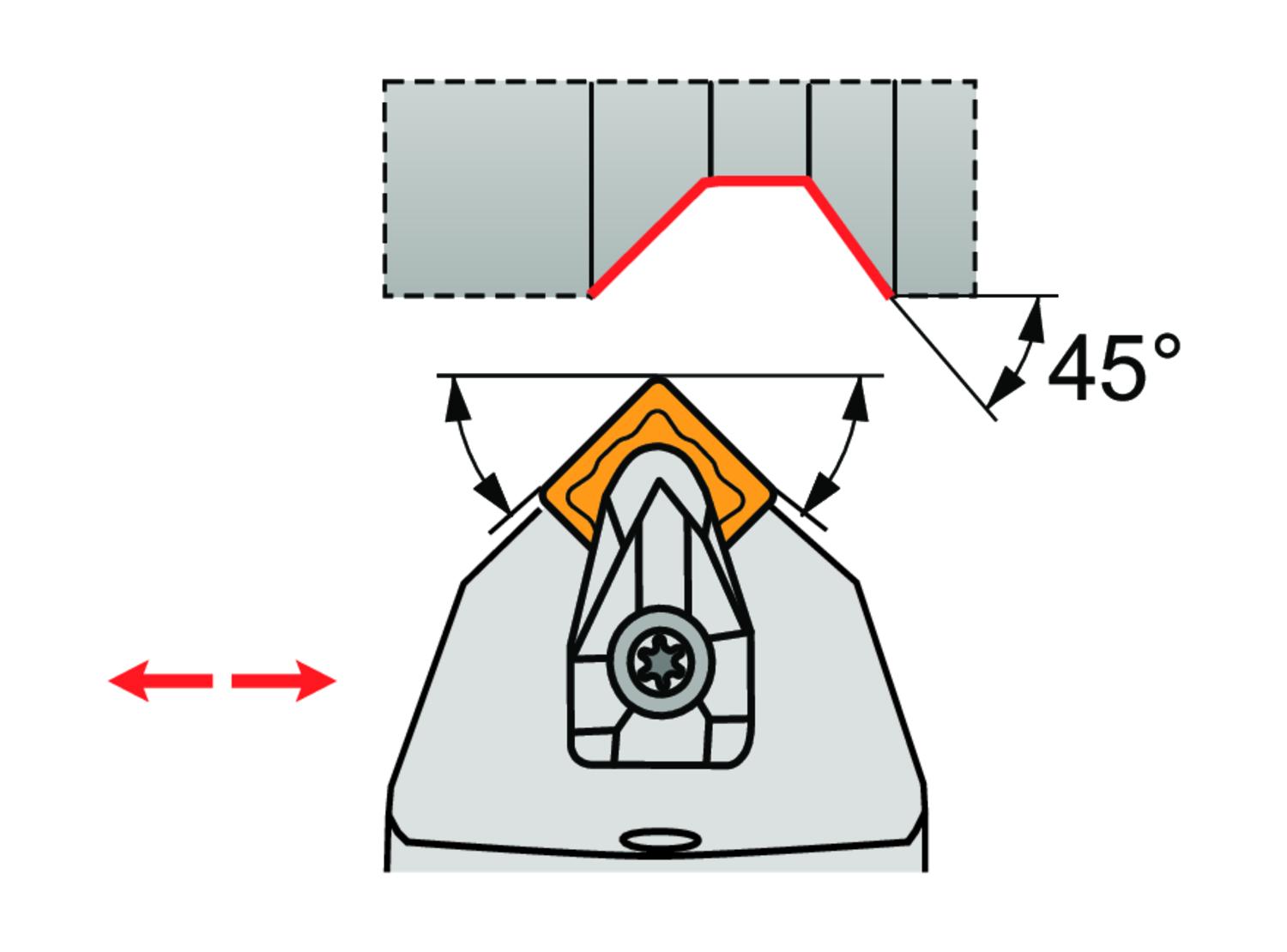

Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 19.05mm, 6.35mm thick (ISO designation SN.. 1906.. ), neutral hand 45° side cutting with straight shank according to ISO 26623 (Polygon Shank Coupling) size C6, with 70mm protruding length for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning without shoulder

Additional information

Weight 1.2790 kg
barcode
Additional Information

Description: Value
EAN number: 3603603682849
Product number (SAP): 86036321
Ordering code ANSI: C6-DSDNN-00070-19
Gross weight – grams: 1283

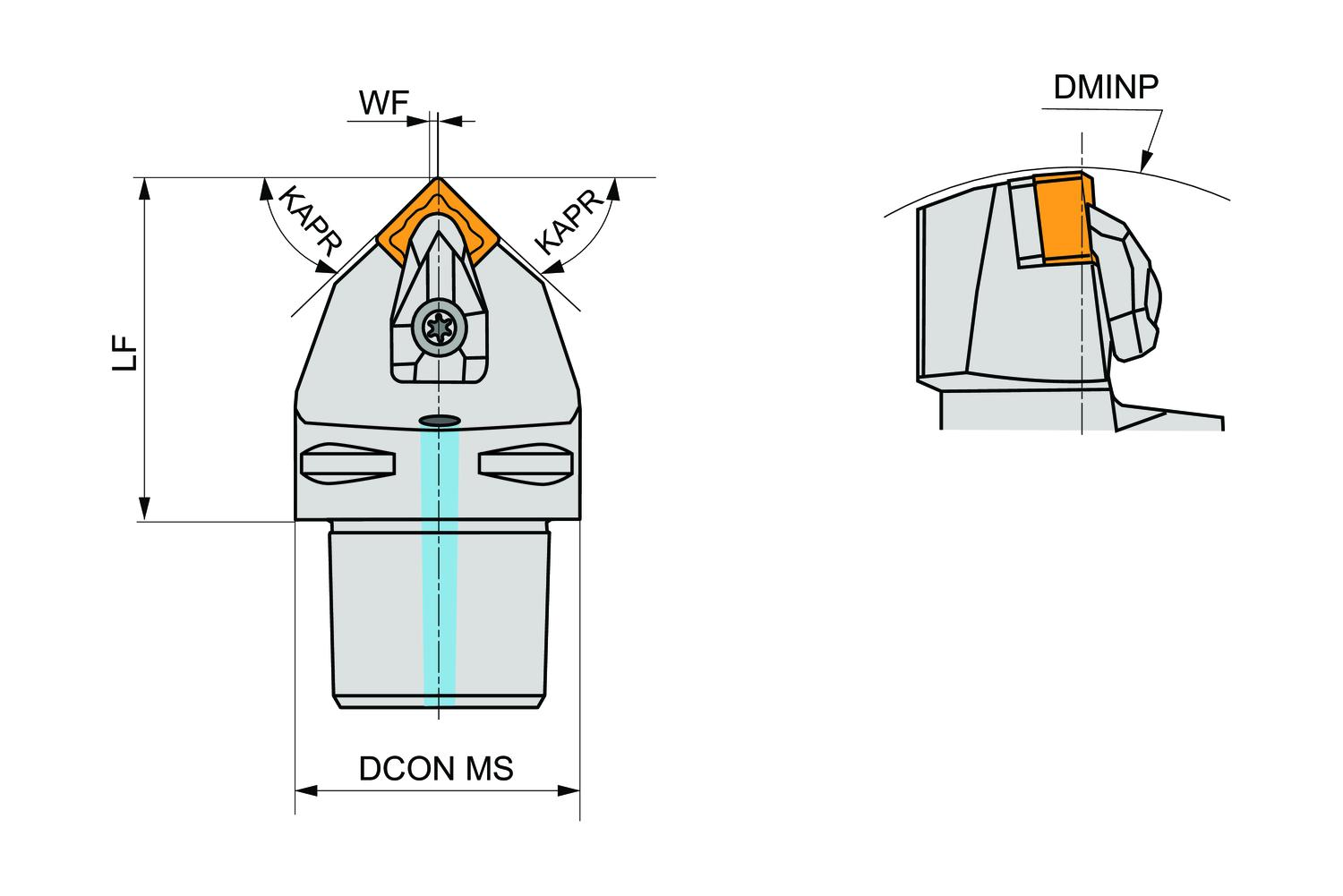

Connection diameter – millimeter (DCON MS): 63 mm
Minimum bore diameter Perpendicular – millimeter (DMINP): 195 mm
Functional width – millimeter (WF): 0.5 mm
Functional length – millimeter (LF): 70 mm
Tool cutting edge angle (KAPR): 45
Inclination angle (LAMS): -6
Orthogonal rake angle (GAMO): -6
Net weight – grams: 1279
Insert size: 19
ISO: C6-DSDNN-00070-19
