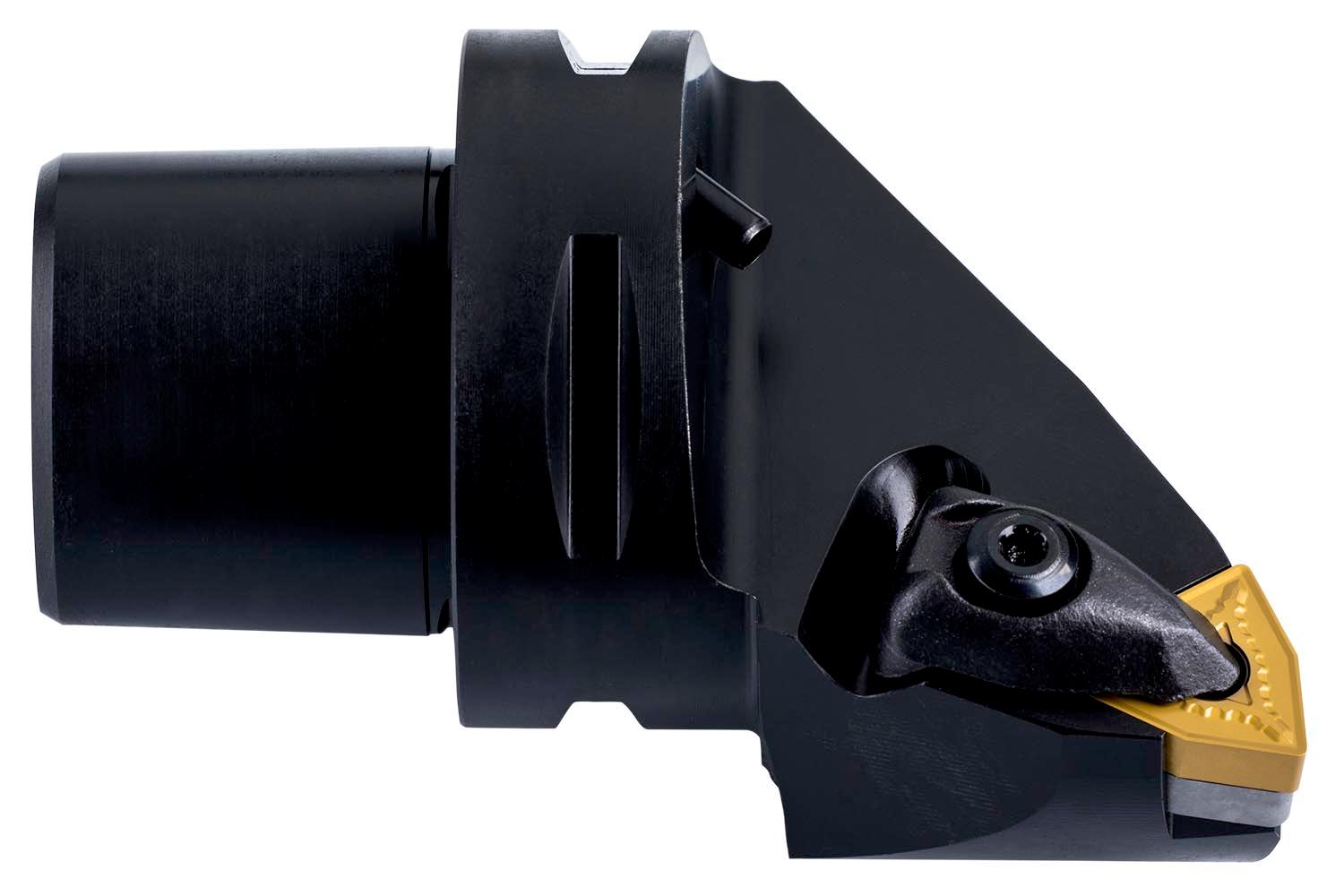

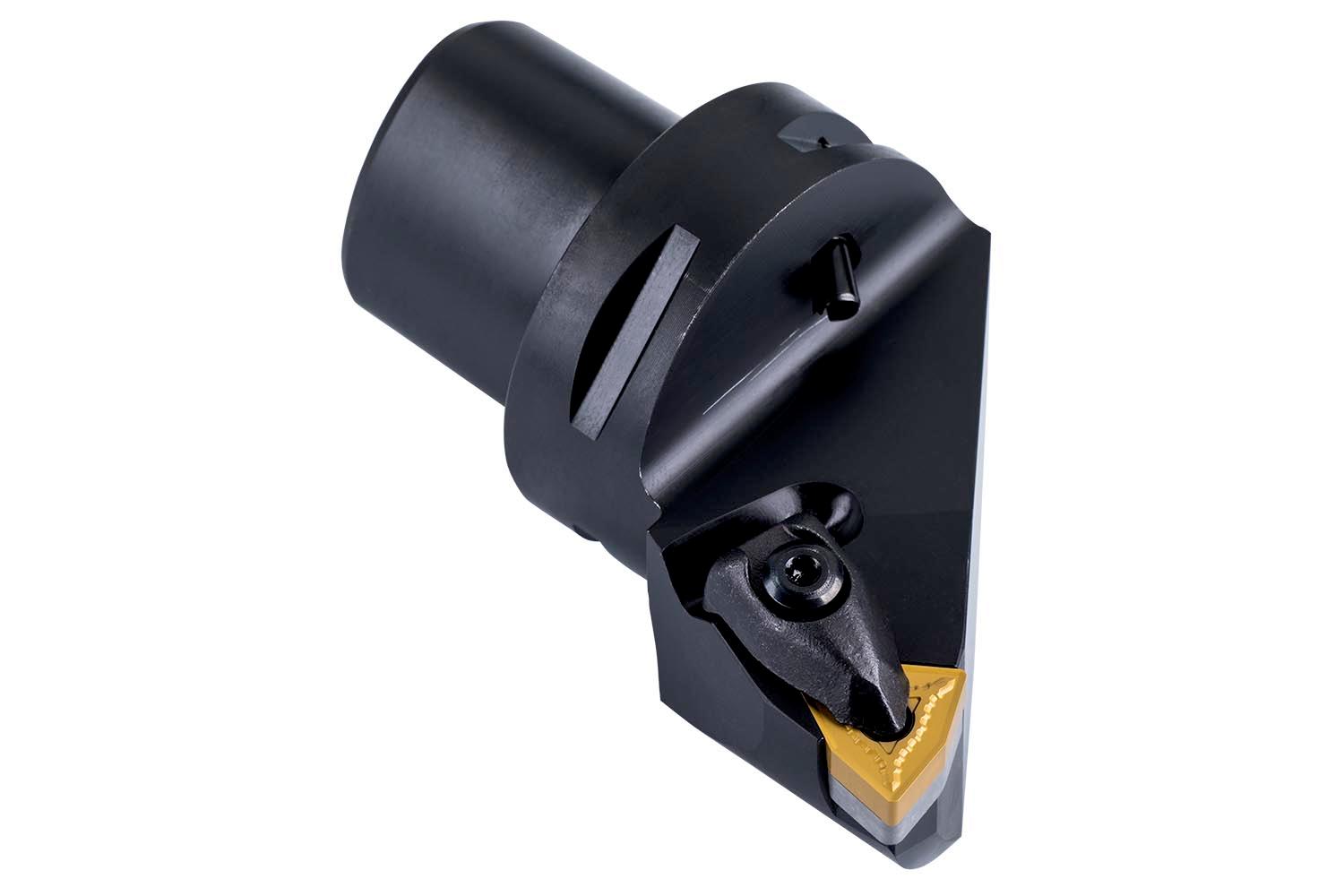

PRAMET C6-DWLNL-45065-08 Turning C holders Int & Ext

Description

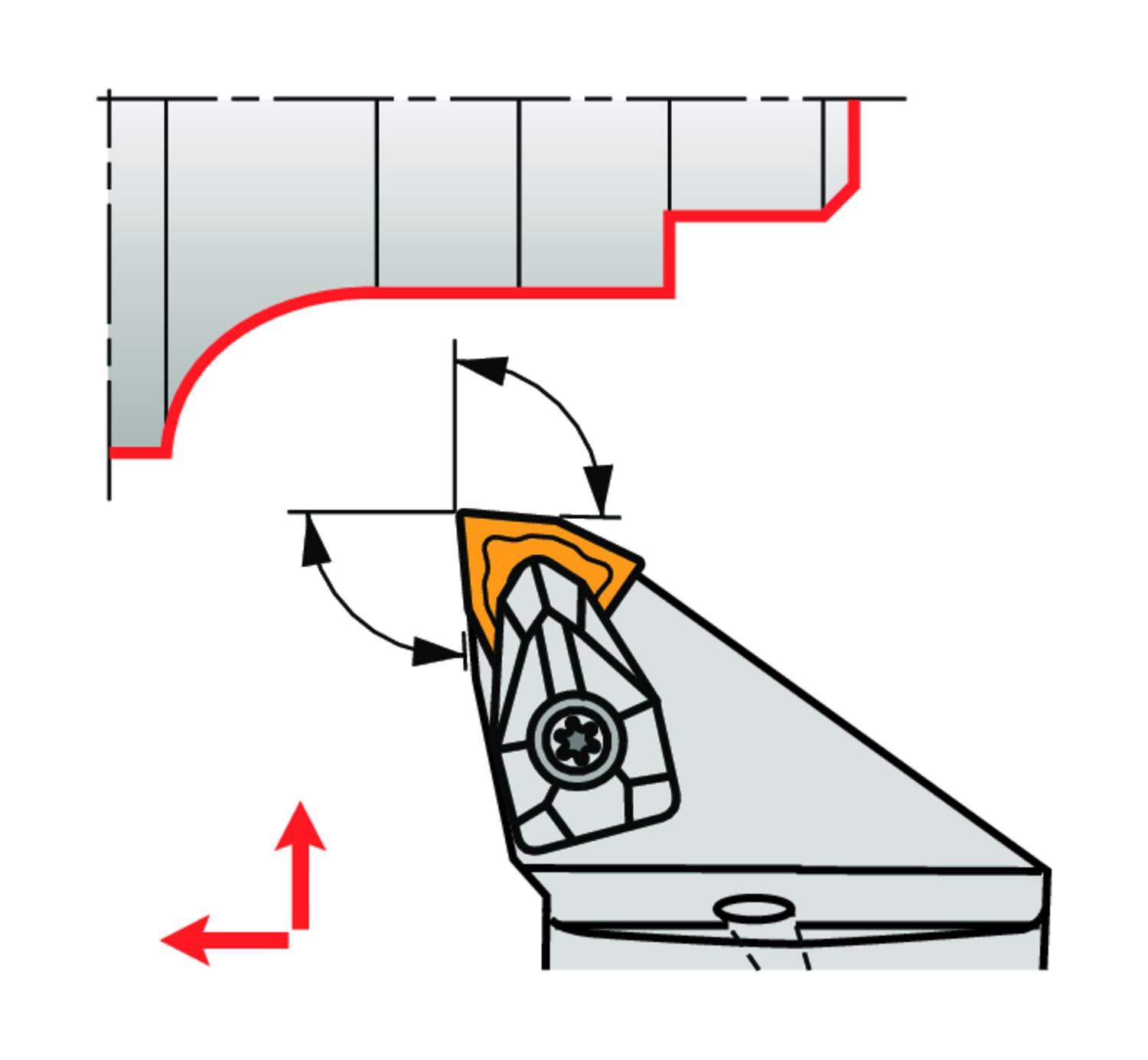

Double clamp turning tool for holding a 80° trigon negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation WN.. 0804.. ), left hand 95° side and end cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C6, with 45mm funtional width and 65mm protruding length for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder

Additional information

Weight	1.3360 kg
barcode

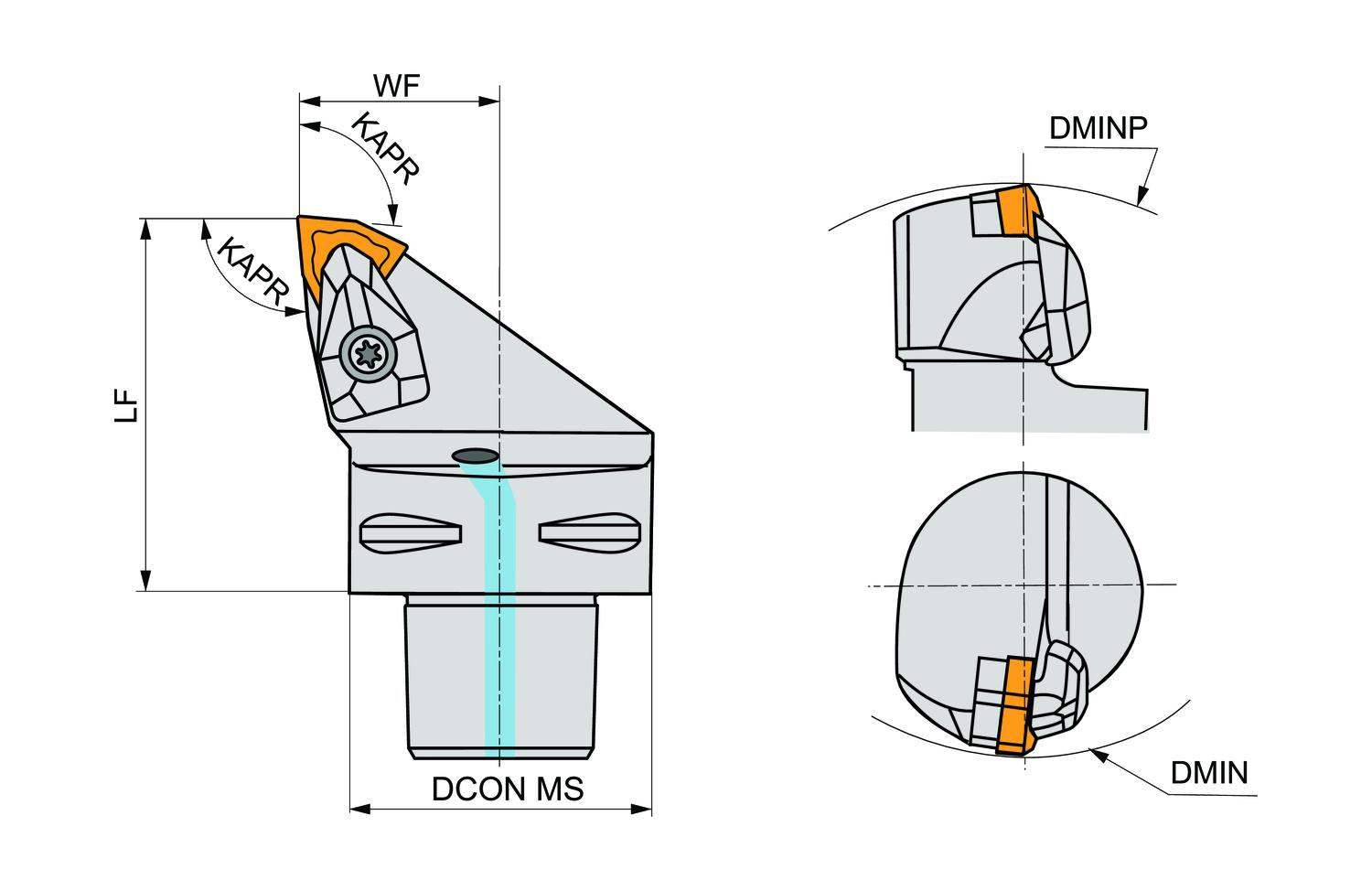

Additional Information	Description: Value EAN number: 3603603684034 Product number (SAP): 86036340 Ordering code ANSI: C6-DWLNL-45065-08 Gross weight – grams: 1336 Connection diameter – millimeter (DCON MS): 63 mm Minimum bore diameter – millimeter (DMIN): 110 mm Minimum bore diameter Perpendicular – millimeter (DMINP): 190 mm Functional width – millimeter (WF): 45 mm Functional length – millimeter (LF): 65 mm Tool cutting edge angle (KAPR): 95 Inclination angle (LAMS): -6 Orthogonal rake angle (GAMO): -6 Net weight – grams: 1336 Insert size: 08 ISO: C6-DWLNL-45065-08
