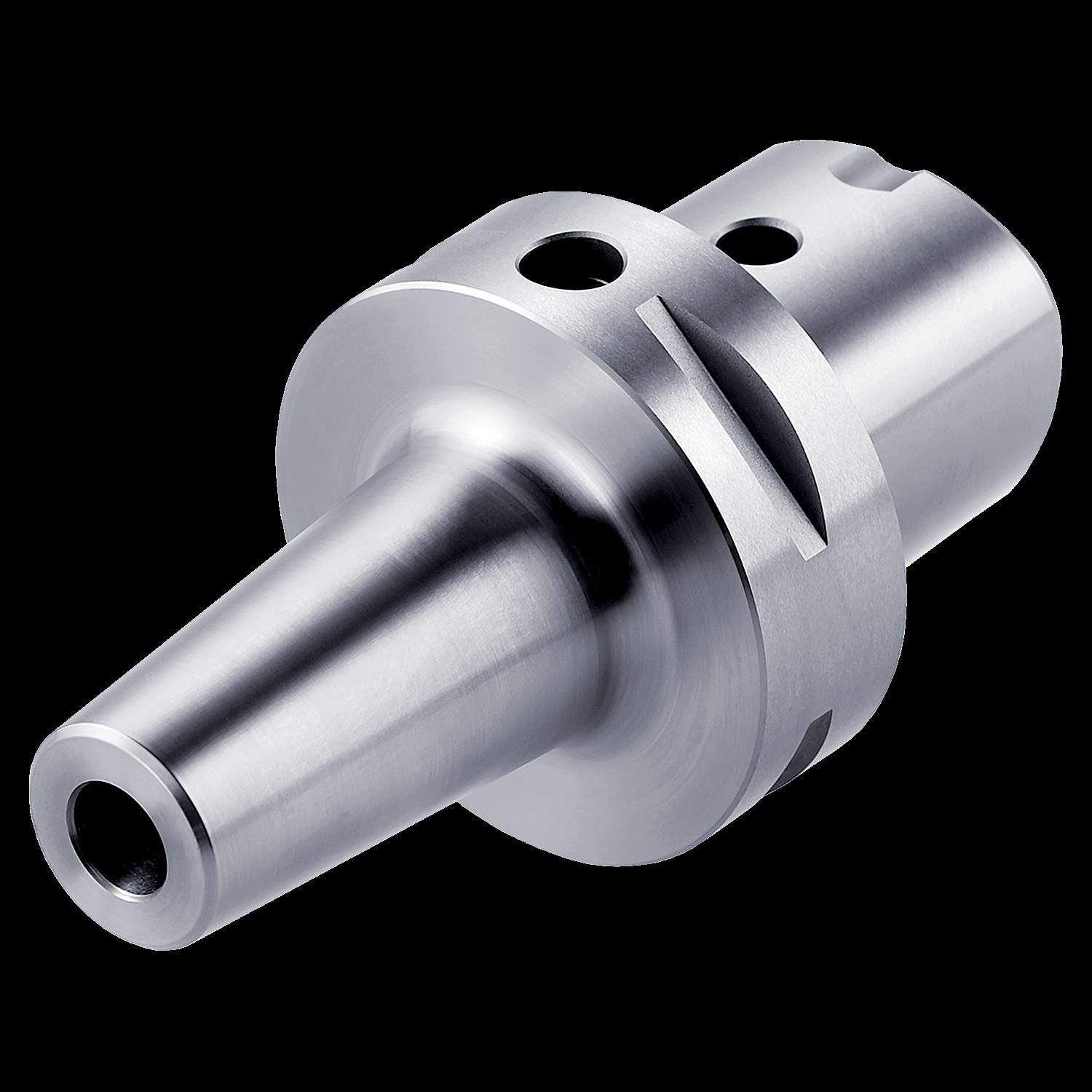

PRAMET C6-SC.12.080.C Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603604219563
Product number (SAP): 86045704
Size: C6
ISO: C6-SC.12.080.C
Ordering code ANSI: C6-SC.12.080.C
Net weight – grams: 1200
Gross weight – grams: 1200
Body diameter – millimeter (BD): 24 mm
Body diameter 2 – millimeters (BD2): 32 mm
Body half taper angle (BHTA): 4.5
Connection diameter workpiece side – millimeter (DCON WS): 12 mm
Connection text machine side (CTMS): C6
Connection text workpiece side (CTWS): M12
Protruding length – millimeter (LPR): 80 mm
