Description: Value

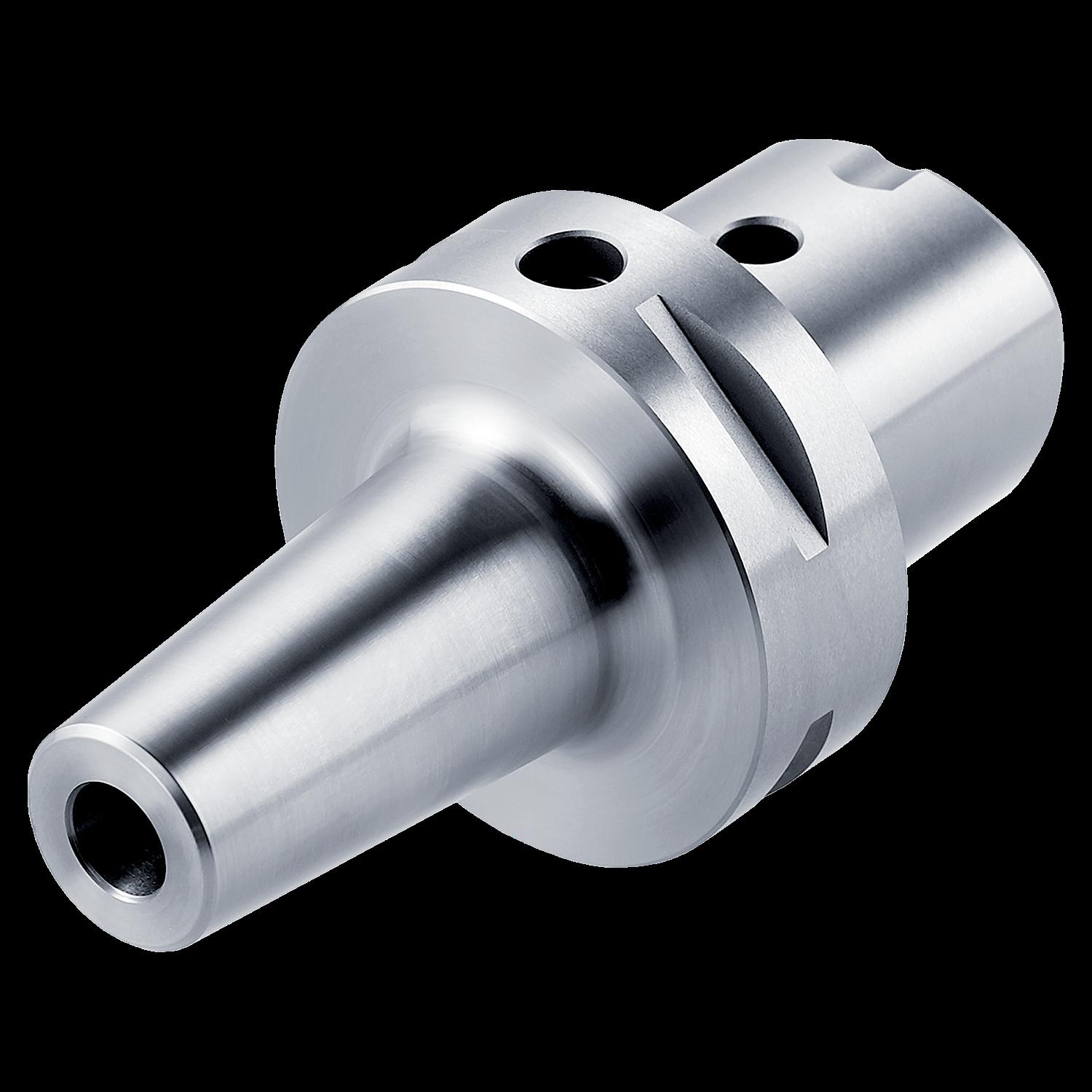

Brand Name: Dormer Pramet
EAN number: 3603604219310
Product number (SAP): 86045679
Size: C6
ISO: C6-SC.20.120
Ordering code ANSI: C6-SC.20.120
Net weight – grams: 1575
Gross weight – grams: 1580
Body diameter – millimeter (BD): 33 mm
Body diameter 2 – millimeters (BD2): 42 mm
Body half taper angle (BHTA): 4.5
Connection diameter workpiece side – millimeter (DCON WS): 20 mm
Connection text machine side (CTMS): C6
Connection text workpiece side (CTWS): 27
Protruding length – millimeter (LPR): 120 mm
|
