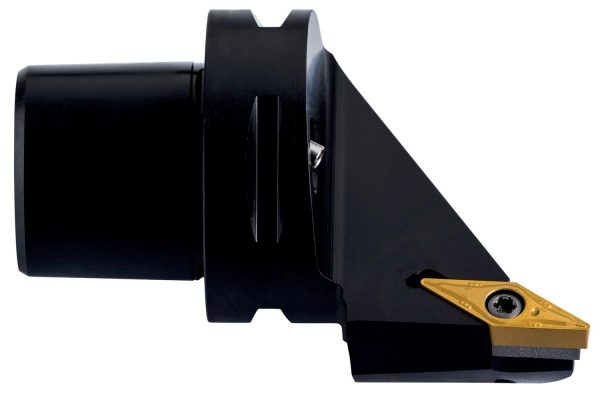

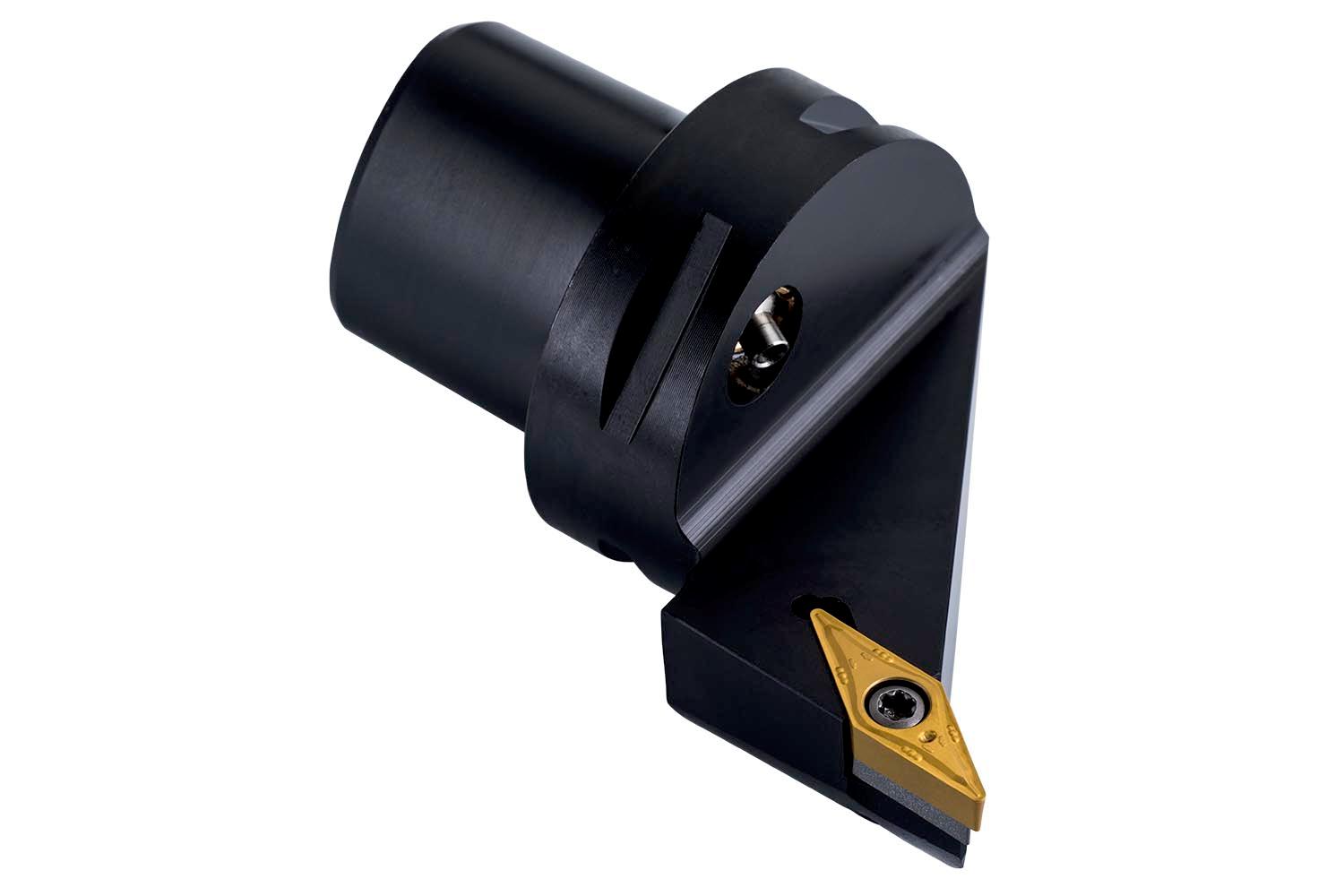

PRAMET C6-SVHBL-45065-16 Turning C holders Int & Ext

Description

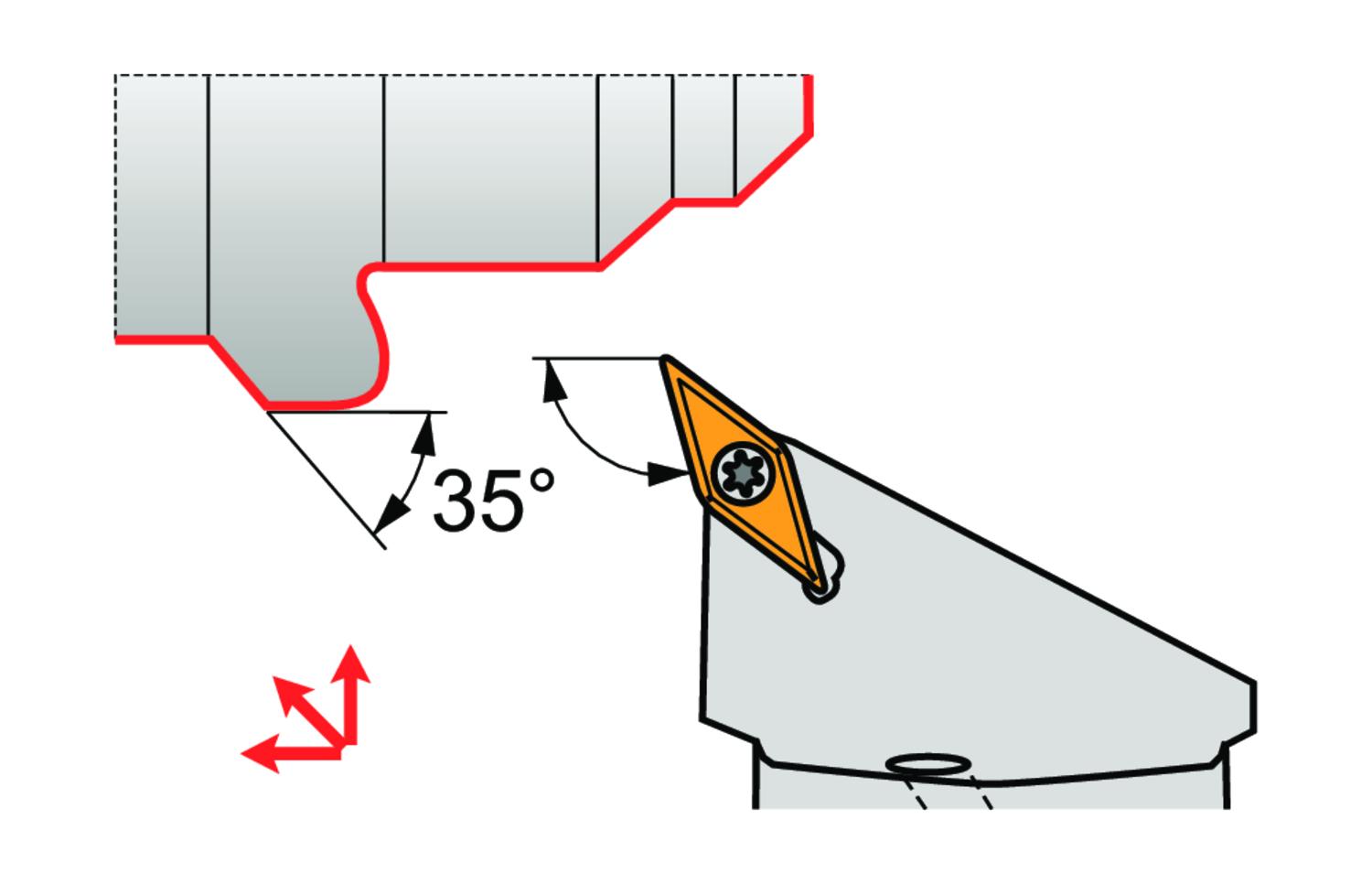

Screw clamp turning tool for holding a 35° rhombus positive insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation VB.. 1604.. or VC.. 1604.. ), left hand 107°30′ side cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C6, with 45mm funtional width and 65mm protruding length for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

Additional information

Weight	1.1240 kg
barcode

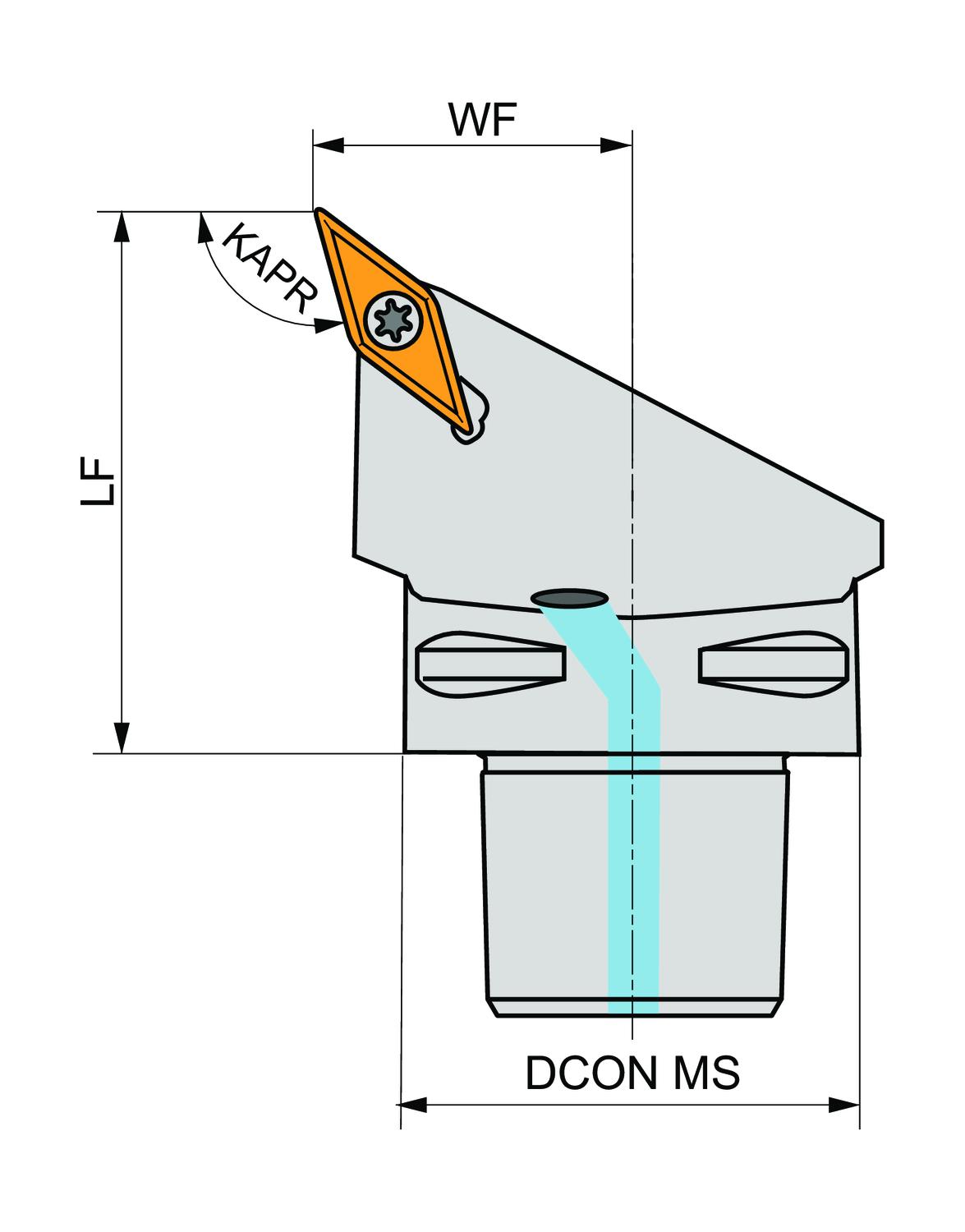

Additional Information	Description: Value EAN number: 3603603684270 Product number (SAP): 86036364 Ordering code ANSI: C6-SVHBL-45065-16 Gross weight – grams: 1127.8 Connection diameter – millimeter (DCON MS): 63 mm Functional width – millimeter (WF): 45 mm Functional length – millimeter (LF): 65 mm Tool cutting edge angle (KAPR): 107.5 Inclination angle (LAMS): 0 Orthogonal rake angle (GAMO): 0 Net weight – grams: 1124 Insert size: 16 ISO: C6-SVHBL-45065-16

Need Technical Advice?

Description

Additional information

Brand

PRAMET
