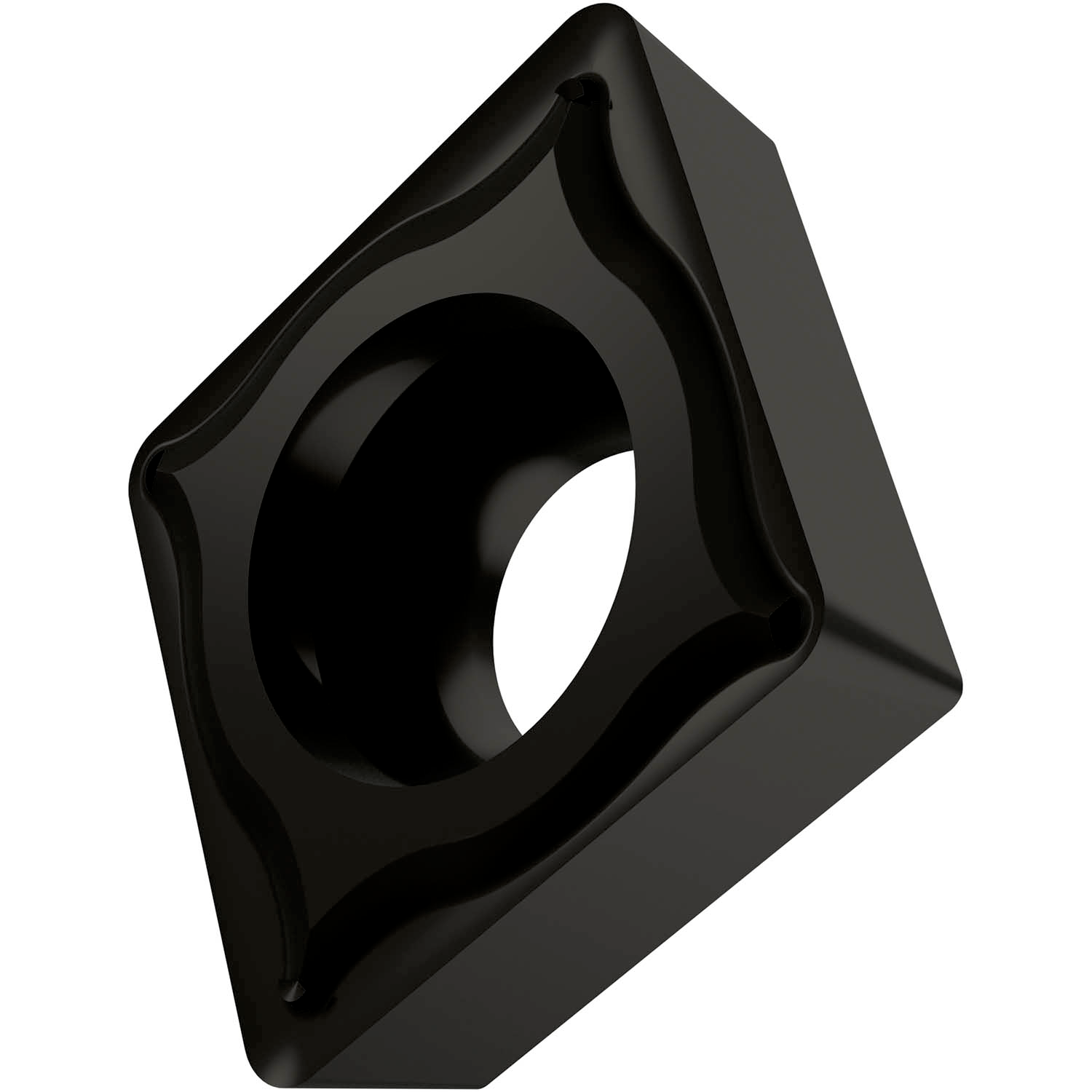

PRAMET CCGT 060204E-NF1:T7325 Turning inserts positive

Product Code: CCGT 060204E-NF1:T7325

$23.11$21.01 Ex. GST

Product Code: CCGT 060204E-NF1:T7325 SKU CCGT 060204E-NF1:T7325 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 6.35mm, 2.38mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker NF1 with rounded cutting edges, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges M10 -M25 and S10 -S25, for fine to medium machining of stainless-steels and super-alloys

Additional information

Weight 0.0224 kg
barcode
Additional Information

Description: Value
EAN number: 3603603170032
Product number (SAP): 80028248
Ordering code ANSI: CCGT 21.51-NF1:T7325
Gross weight – grams: 0.981
Inscribed circle diameter – millimeter (IC): 6.35 mm
Fixing hole diameter – millimeter (D1): 2.8 mm
Cutting edge length – millimeter (L): 6.4 mm
Insert thickness – millimeter (S): 2.38 mm
Grade: T7325
Corner radius – millimeter (RE): 0.4 mm
Insert Clearance Code and Angle: C 7°
Insert Design: CCGT
Insert size: 06
Insert Thickness: 02
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): NF1
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CC
Insert Geometry: Positive
ISO: CCGT060204E-NF1:T7325

Brand

PRAMET
