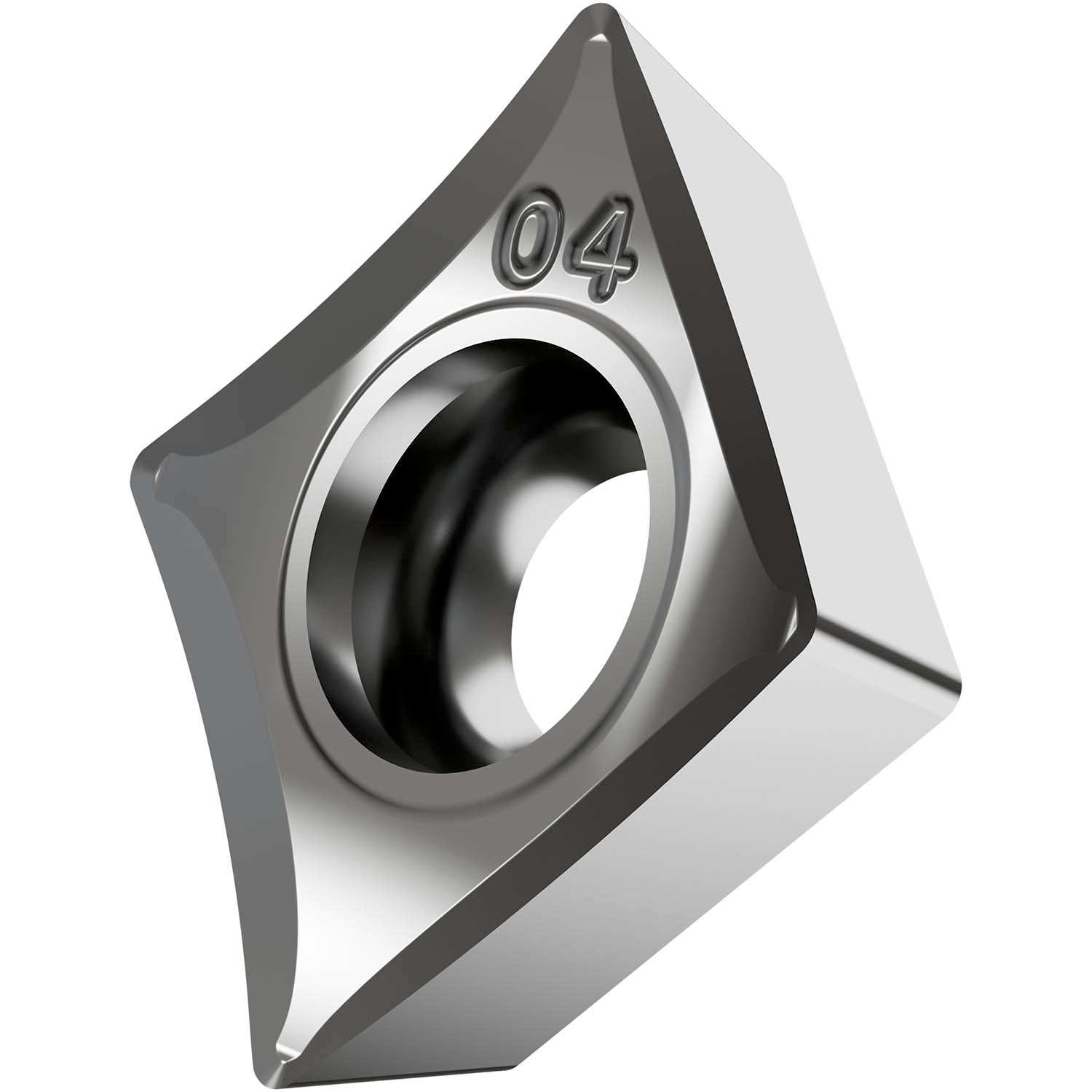

PRAMET CCGT 060204F-AL:HF7

Description: Value
EAN number: 3603602871633
Product number (SAP): 80002173
Ordering code ANSI: CCGT 21.51F-AL:HF7
Gross weight – grams: 0.869
Inscribed circle diameter – millimeter (IC): 6.35 mm
Fixing hole diameter – millimeter (D1): 2.8 mm
Cutting edge length – millimeter (L): 6.4 mm
Insert thickness – millimeter (S): 2.38 mm
Grade: HF7
Corner radius – millimeter (RE): 0.4 mm
Insert Clearance Code and Angle: C 7°
Insert Design: CCGT
Insert size: 06
Insert Thickness: 02
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): AL
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CC
Insert Geometry: Positive
ISO: CCGT060204F-AL:HF7
