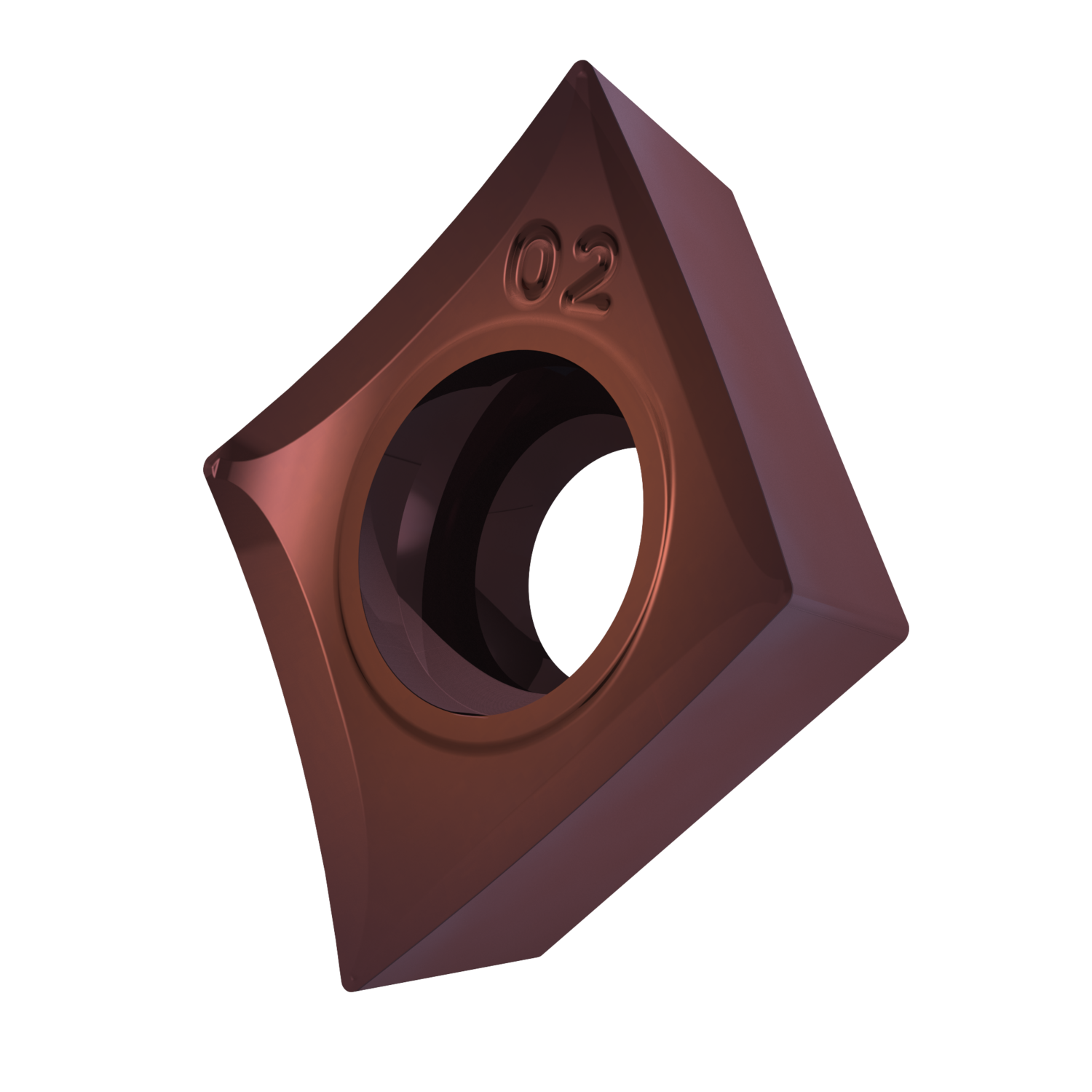

PRAMET CCGT 080302E-SF3:T8415 Turning inserts positive

Description: Value
EAN number: 3603604269186 Product number (SAP): 80036359 Ordering code ANSI: CCGT 2.520.5-SF3:T8415 Gross weight: 3.09 grams Inscribed circle diameter (IC): 7.94 mm Fixing hole diameter (D1): 3.4 mm Cutting edge length (L): 8.1 mm Insert thickness (S): 3.43 mm Grade: T8415 Corner radius (RE): 0.2 mm Insert Clearance Code and Angle: C 7° Insert Design: CCGT Insert size: 08 Insert Type: T Chipbreaker manufacturer's designation (CBMD): SF3 Insert shape code (SC): C – rhombic 80° included angle Tool Design: CC Insert Geometry: Positive ISO: CCGT080302E-SF3:T8415
