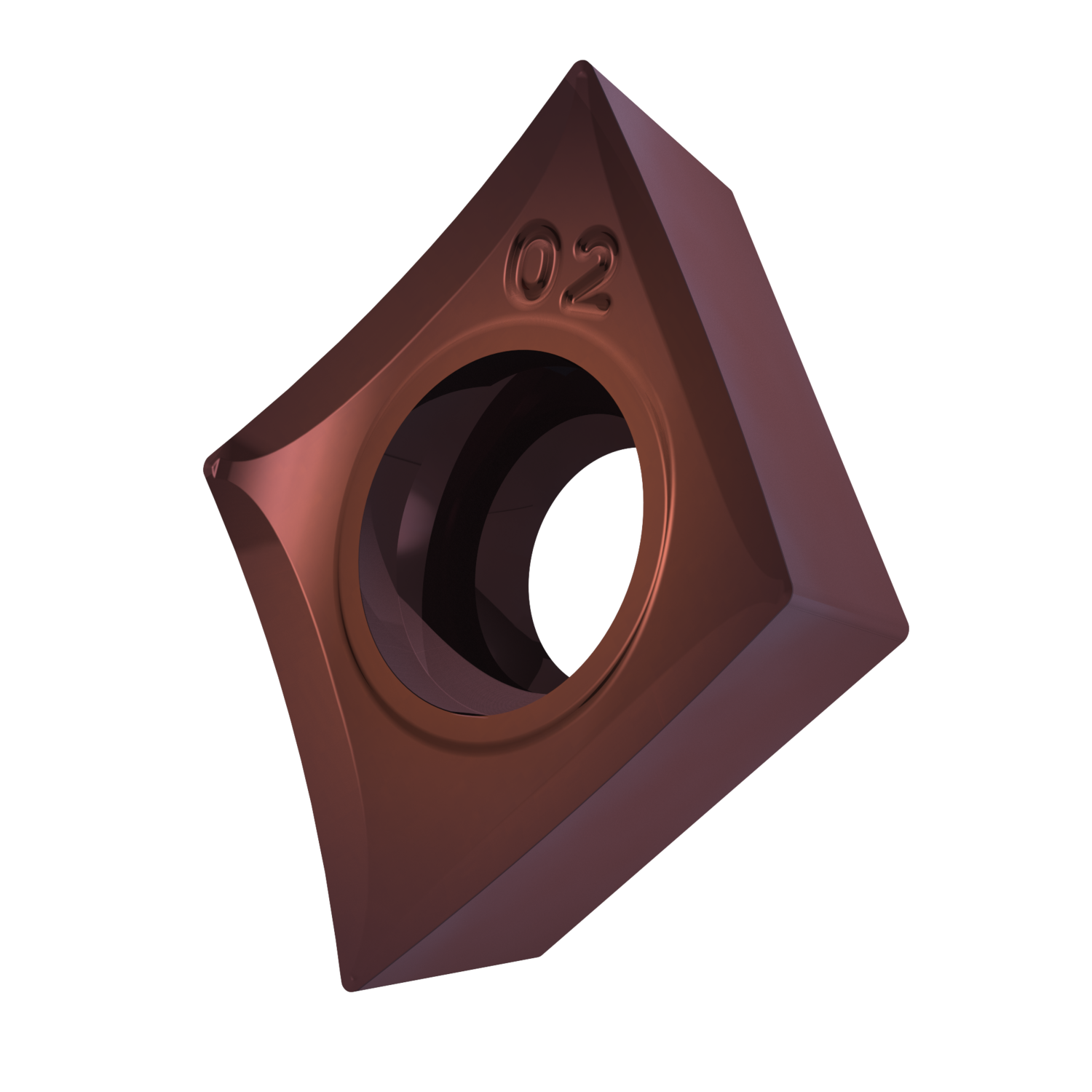

PRAMET CCGT 080304E-SF3:T8415 Turning inserts positive

Description: Value
EAN number: 3603604269193
Product number (SAP): 80036360
Ordering code ANSI: CCGT 2.521-SF3:T8415
Gross weight – grams: 3.14
Inscribed circle diameter – millimeter (IC): 7.94 mm
Fixing hole diameter – millimeter (D1): 3.4 mm
Cutting edge length – millimeter (L): 8.1 mm
Insert thickness – millimeter (S): 3.43 mm
Grade: T8415
Corner radius – millimeter (RE): 0.4 mm
Insert Clearance Code and Angle: C 7°
Insert Design: CCGT
Insert size: 08
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): SF3
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CC
Insert Geometry: Positive
ISO: CCGT080304E-SF3:T8415
