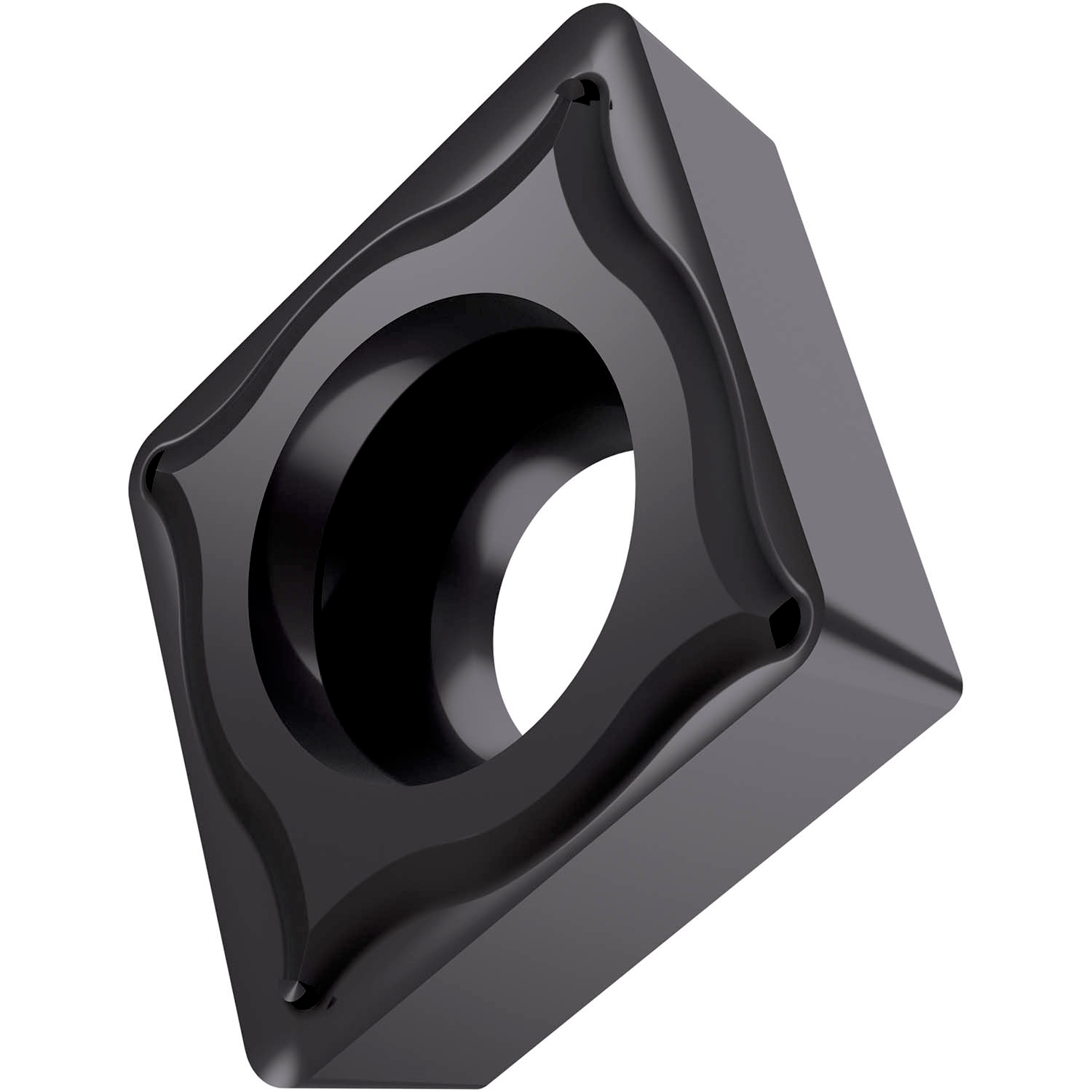

PRAMET CCGT 09T304E-NF1:T6310 Turning inserts positive

Description

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 9.525mm, 3.97mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker NF1 with rounded cutting edges, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges P01 -P15/M01 -M15 and S01 -S15, for fine to medium machining of steels, stainless-steels and super-alloys

Additional information

Weight	0.0257 kg
barcode
Additional Information	Description: Value EAN number: 3603603170087 Product number (SAP): 80028253 Ordering code ANSI: CCGT 32.51-NF1:T6310 Gross weight – grams: 3.561 Inscribed circle diameter – millimeter (IC): 9.525 mm Fixing hole diameter – millimeter (D1): 4.4 mm Cutting edge length – millimeter (L): 9.7 mm Insert thickness – millimeter (S): 3.97 mm Grade: T6310 Corner radius – millimeter (RE): 0.4 mm Insert Clearance Code and Angle: C 7° Insert Design: CCGT Insert size: 09 Insert Thickness: T3 Insert Type: T Chipbreaker manufacturer's designation (CBMD): NF1 Insert shape code (SC): C – rhombic 80° included angle Tool Design: CC Insert Geometry: Positive ISO: CCGT09T304E-NF1:T6310

Need Technical Advice?

Description

Additional information

Brand

PRAMET
