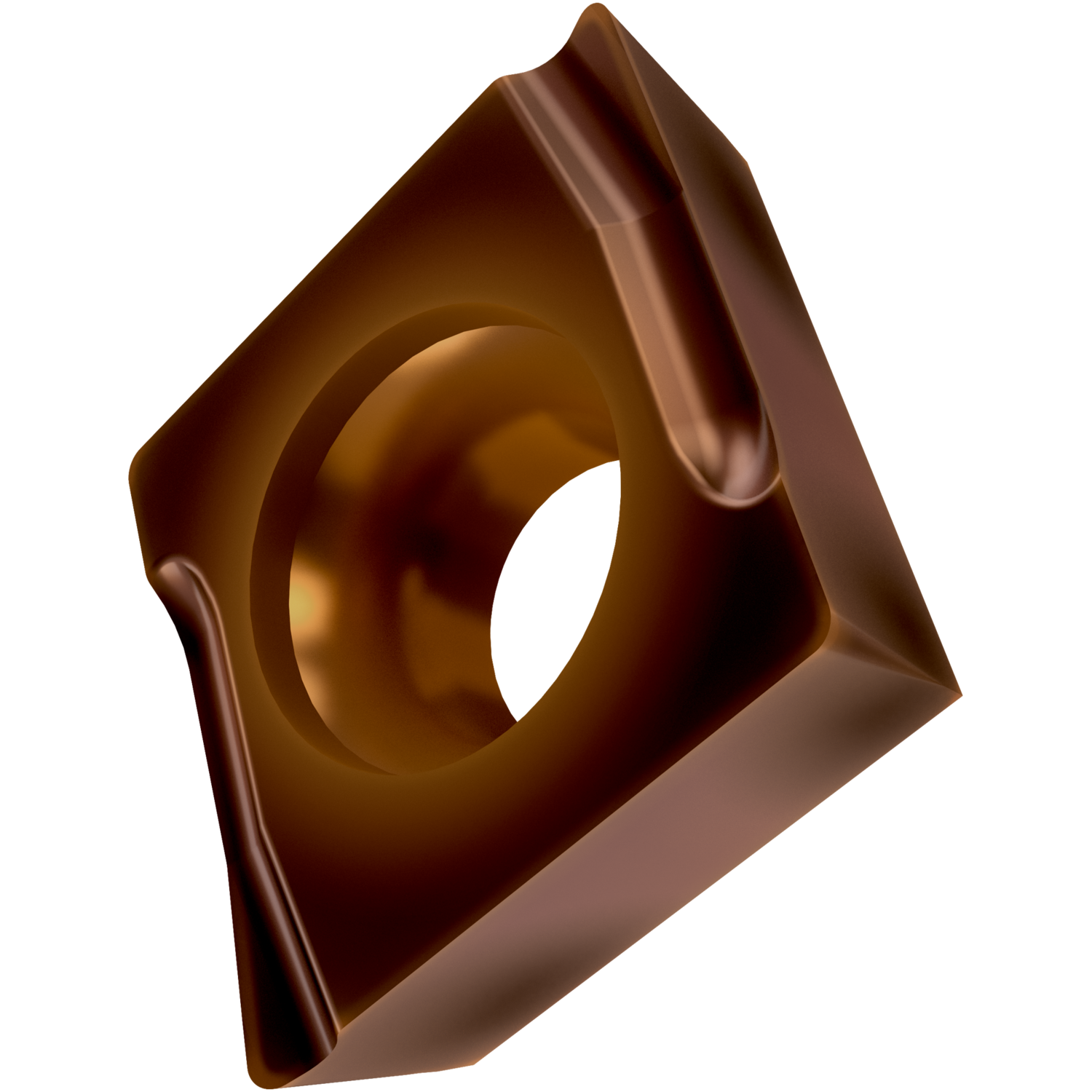

PRAMET CCGT 09T304EL-SI:T8430 Turning inserts positive

Product Code: CCGT 09T304EL-SI:T8430

$27.30$24.82 Ex. GST

Product Code: CCGT 09T304EL-SI:T8430 SKU CCGT 09T304EL-SI:T8430 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 9.525mm, 3.97mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker SI with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO ranges P20 -P40 and M20 -M35, for fine to medium machining of steels and stainless-steels with a left handed turning tool

Additional information

Weight 0.0265 kg
barcode
Additional Information

Description: Value
EAN number: 3603603814042
Product number (SAP): 80032862
Ordering code ANSI: CCGT 32.51L-SI:T8430
Gross weight – grams: 3.696
Inscribed circle diameter – millimeter (IC): 9.525 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Cutting edge length – millimeter (L): 9.7 mm
Insert thickness – millimeter (S): 3.97 mm
Grade: T8430
Corner radius – millimeter (RE): 0.4 mm
Insert Clearance Code and Angle: C 7°
Insert Design: CCGT
Insert size: 09
Insert Thickness: T3
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): SI
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CC
Insert Geometry: Positive
ISO: CCGT09T304EL-SI:T8430

Brand

PRAMET
